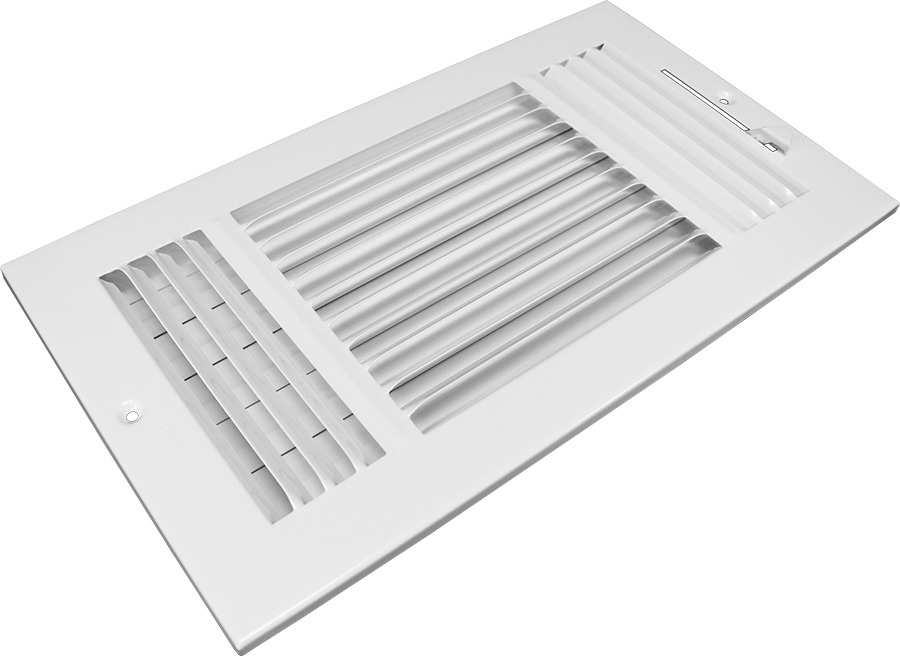

Sidewall or Ceiling
X23
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.
Lanced face- Multi-shutter damper
- 3-way diffusion
- 1/2” spaced fins
- White finish
- Imported (cost effective alternative to our domestic line)
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| X23W 0804 | 8" x 4" White | 30 | -- |
| X23W 0806 | 8" x 6" White | 20 | -- |
| X23W 1004 | 10" x 4" White | 20 | -- |
| X23W 1006 | 10" x 6" White | 20 | -- |
| X23W 1008 | 10" x 8" White | 20 | -- |
| X23W 1204 | 12" x 4" White | 20 | -- |
| X23W 1206 | 12" x 6" White | 20 | -- |
| X23W 1208 | 12" x 8" White | 20 | -- |
| X23W 1406 | 14" x 6" White | 20 | -- |
| X23W 1408 | 14" x 8" White | 10 | -- |
Note:
Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
