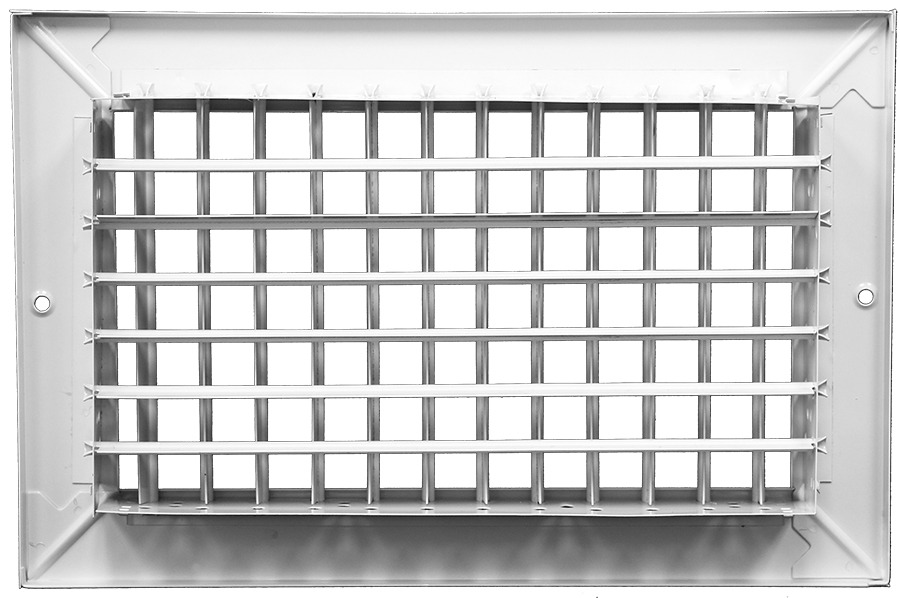

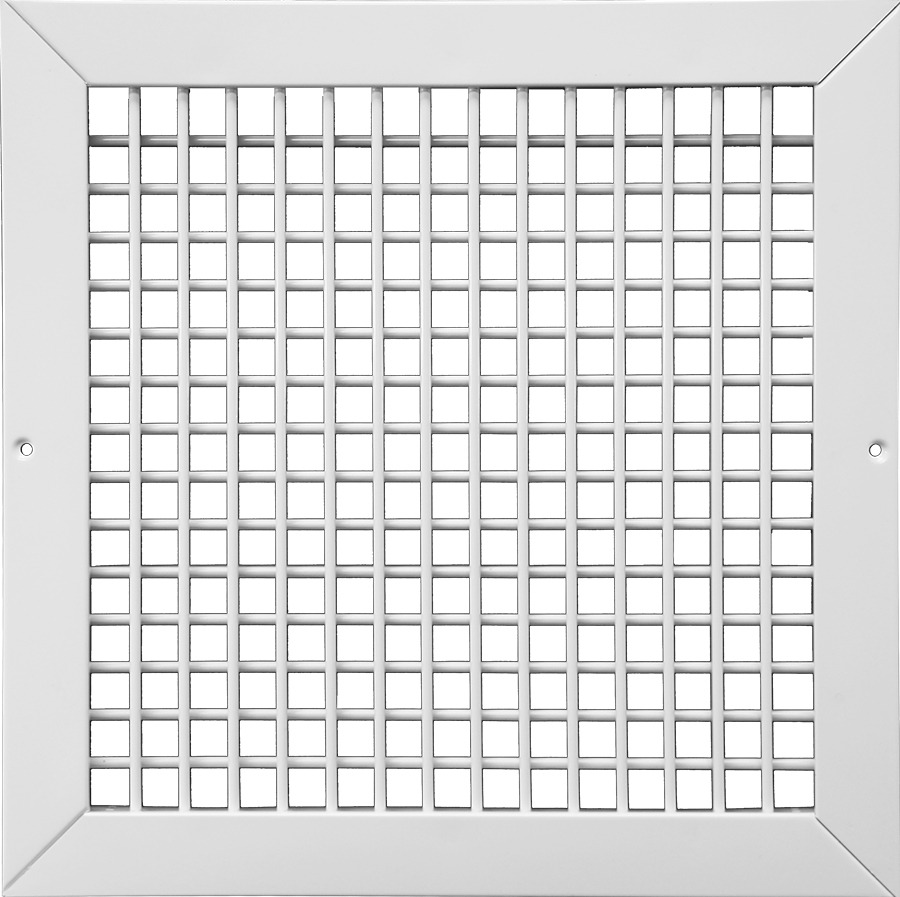

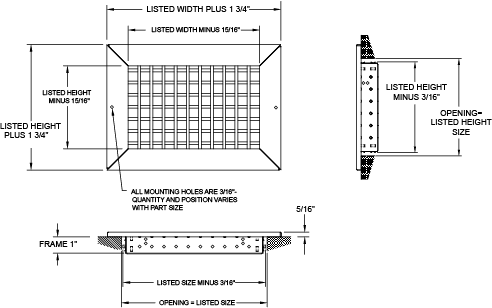

Steel Sidewall or Ceiling
VHG
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.
Double deflection- Adjustable, vertical, roll-form face bars
- Adjustable, horizontal, roll-form rear bars
- 3/4" bar spacing for easy adjustment
- Steel construction (VHG)
- White finish
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| VHGW 0606 | 6" x 6" White | 6 | -- |
| VHGW 0806 | 8" x 6" White | 6 | -- |
| VHGW 1006 | 10" x 6" White | 6 | -- |
| VHGW 1206 | 12" x 6" White | 6 | -- |
| VHGW 1406 | 14" x 6" White | 6 | -- |
| VHGW 1616 | 16" x 16" White | 3 | -- |
| Unit | Face Velocity | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Size | Pressure Loss | .006 | .010 | .016 | .022 | .031 | .040 | .050 | .062 | |
| 6x4 | Cfm | 31 | 42 | 52 | 63 | 73 | 83 | 94 | 104 | |
| Ak .104 | Throw | 3 | 4 | 5 | 7 | 8 | 9 | 10 | 11 | |
| 6x6 | Cfm | 50 | 67 | 83 | 100 | 117 | 133 | 150 | 167 | |
| Ak .167 | Throw | 5 | 6 | 7 | 9 | 10 | 12 | 13 | 15 | |
| 8x4 | Cfm | 42 | 56 | 69 | 83 | 97 | 111 | 125 | 139 | |
| Ak .139 | Throw | 4 | 5 | 7 | 8 | 9 | 11 | 12 | 13 | |
| 8x6 | Cfm | 69 | 92 | 115 | 138 | 160 | 183 | 206 | 229 | |
| Ak .229 | Throw | 5 | 7 | 8 | 10 | 12 | 14 | 15 | 17 | |
| 8x8 | Cfm | 96 | 128 | 160 | 192 | 224 | 256 | 288 | 319 | |
| Ak .319 | Throw | 6 | 7 | 9 | 11 | 13 | 15 | 17 | 19 | |
| 10x4 | Cfm | 54 | 72 | 90 | 108 | 126 | 144 | 163 | 181 | |
| Ak .181 | Throw | 5 | 6 | 8 | 9 | 11 | 12 | 13 | 14 | |
| 10x6 | Cfm | 90 | 119 | 149 | 179 | 209 | 239 | 269 | 299 | |
| Ak .299 | Throw | 6 | 8 | 9 | 11 | 13 | 15 | 17 | 19 | |
| 10x8 | Cfm | 121 | 161 | 201 | 242 | 282 | 322 | 363 | 403 | |
| Ak .403 | Throw | 7 | 8 | 10 | 12 | 14 | 16 | 17 | 21 | |
| 10x10 | Cfm | 156 | 208 | 260 | 313 | 365 | 417 | 469 | 521 | |
| Ak .521 | Throw | 7 | 9 | 12 | 14 | 16 | 18 | 20 | 23 | |
| 12x4 | Cfm | 65 | 86 | 108 | 129 | 151 | 172 | 194 | 215 | |
| Ak .215 | Throw | 5 | 7 | 8 | 10 | 12 | 14 | 15 | 17 | |
| 12x6 | Cfm | 108 | 144 | 181 | 217 | 253 | 289 | 325 | 361 | |
| Ak .361 | Throw | 7 | 8 | 10 | 12 | 15 | 17 | 19 | 21 | |
| 12x8 | Cfm | 148 | 197 | 247 | 296 | 345 | 394 | 444 | 493 | |
| Ak .493 | Throw | 7 | 9 | 11 | 13 | 18 | 17 | 19 | 22 | |
| 12x10 | Cfm | 190 | 253 | 316 | 379 | 442 | 506 | 569 | 632 | |
| Ak .632 | Throw | 8 | 11 | 13 | 16 | 19 | 22 | 25 | 28 | |
| 12x12 | Cfm | 229 | 306 | 382 | 458 | 535 | 611 | 688 | 764 | |
| Ak .764 | Throw | 9 | 11 | 14 | 17 | 20 | 22 | 25 | 29 | |
| 14x4 | Cfm | 77 | 103 | 128 | 154 | 180 | 206 | 231 | 257 | |
| Ak .257 | Throw | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 18 | |
| 14x6 | Cfm | 127 | 169 | 212 | 254 | 297 | 339 | 381 | 424 | |
| Ak .424 | Throw | 7 | 8 | 11 | 13 | 16 | 18 | 20 | 23 | |
| 14x8 | Cfm | 173 | 231 | 288 | 346 | 403 | 461 | 519 | 576 | |
| Ak .576 | Throw | 8 | 9 | 12 | 14 | 17 | 19 | 21 | 24 | |
| 14x10 | Cfm | 223 | 297 | 372 | 446 | 520 | 594 | 669 | 743 | |
| Ak .743 | Throw | 9 | 11 | 13 | 16 | 19 | 22 | 25 | 28 | |
| 14x12 | Cfm | 269 | 358 | 448 | 538 | 627 | 717 | 806 | 896 | |
| Ak .896 | Throw | 9 | 12 | 14 | 18 | 22 | 24 | 27 | 31 | |
| 16x4 | Cfm | 83 | 111 | 139 | 167 | 194 | 222 | 250 | 278 | |
| Ak .278 | Throw | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| 16x6 | Cfm | 135 | 181 | 226 | 271 | 316 | 361 | 406 | 451 | |
| Ak .451 | Throw | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| 16x8 | Cfm | 185 | 247 | 309 | 371 | 433 | 494 | 556 | 618 | |
| Ak .618 | Throw | 8 | 10 | 13 | 15 | 18 | 20 | 22 | 25 | |
| 16x10 | Cfm | 240 | 319 | 399 | 479 | 559 | 639 | 719 | 799 | |
| Ak .799 | Throw | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| 16x12 | Cfm | 290 | 386 | 483 | 579 | 676 | 772 | 869 | 965 | |
| Ak .965 | Throw | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| 18x4 | Cfm | 94 | 125 | 156 | 188 | 219 | 250 | 281 | 313 | |
| Ak .313 | Throw | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| 18x6 | Cfm | 156 | 208 | 260 | 313 | 365 | 417 | 469 | 521 | |
| Ak .521 | Throw | 8 | 11 | 13 | 16 | 19 | 22 | 24 | 27 | |
| 18x8 | Cfm | 213 | 283 | 354 | 425 | 496 | 567 | 638 | 708 | |
| Ak .708 | Throw | 9 | 11 | 13 | 16 | 19 | 22 | 25 | 28 | |
| 18x10 | Cfm | 273 | 364 | 455 | 546 | 637 | 728 | 819 | 910 | |
| Ak .910 | Throw | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| 18x12 | Cfm | 331 | 442 | 552 | 663 | 773 | 883 | 994 | 1104 | |
| Ak 1.104 | Throw | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| 20x4 | Cfm | 106 | 142 | 177 | 213 | 248 | 283 | 319 | 354 | |
| Ak .354 | Throw | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| 20x6 | Cfm | 175 | 233 | 292 | 350 | 408 | 467 | 525 | 583 | |
| Ak .583 | Throw | 8 | 11 | 14 | 16 | 20 | 23 | 25 | 28 | |
| 20x8 | Cfm | 238 | 317 | 396 | 475 | 554 | 633 | 713 | 792 | |
| Ak .792 | Throw | 9 | 12 | 15 | 18 | 21 | 23 | 26 | 29 | |
| 20x10 | Cfm | 306 | 408 | 510 | 613 | 715 | 817 | 919 | 1021 | |
| Ak 1.021 | Throw | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| 20x12 | Cfm | 371 | 494 | 618 | 742 | 865 | 989 | 1113 | 1236 | |
| Ak 1.236 | Throw | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| 24x4 | Cfm | 129 | 172 | 215 | 258 | 301 | 344 | 388 | 431 | |
| Ak .431 | Throw | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| 24x6 | Cfm | 190 | 253 | 316 | 379 | 442 | 506 | 569 | 632 | |
| Ak .632 | Throw | 9 | 12 | 15 | 18 | 21 | 23 | 26 | 29 | |
| 24x8 | Cfm | 292 | 389 | 486 | 583 | 681 | 778 | 875 | 972 | |
| Ak .972 | Throw | 10 | 13 | 17 | 19 | 23 | 25 | 28 | 31 | |
| 24x10 | Cfm | 373 | 497 | 622 | 746 | 870 | 994 | 1119 | 1243 | |
| Ak 1.243 | Throw | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| 24x12 | Cfm | 452 | 603 | 753 | 904 | 1055 | 1206 | 1356 | 1507 | |
| Ak 1.507 | Throw | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| Terminal Velocity of 75 fpm | ||||||||||
| NC 35 |
