Floor, Toe Space, & Baseboard
TG32
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

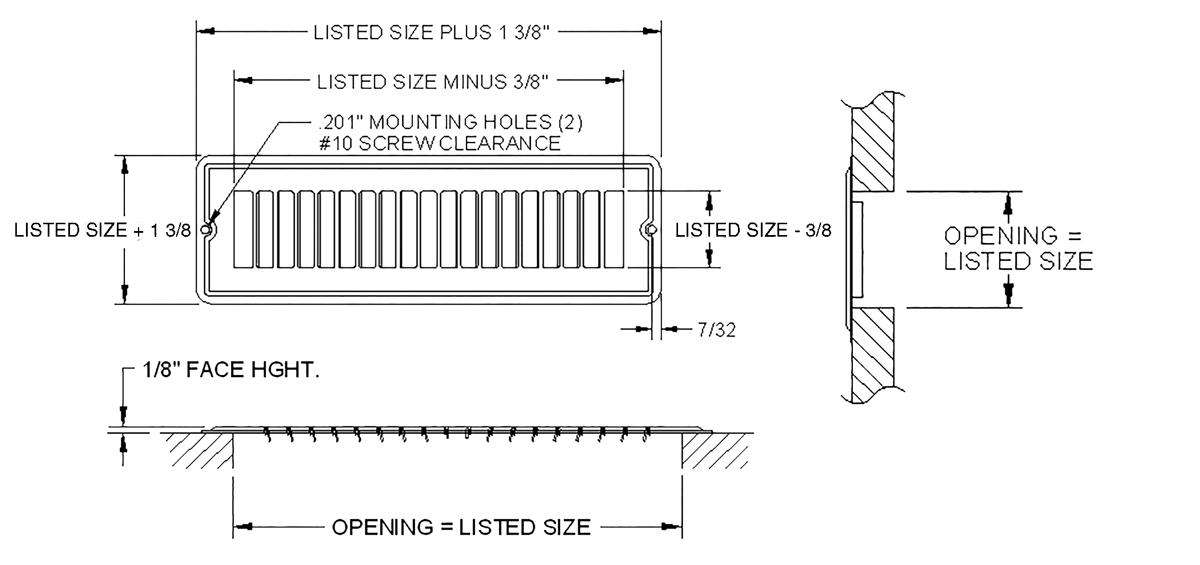

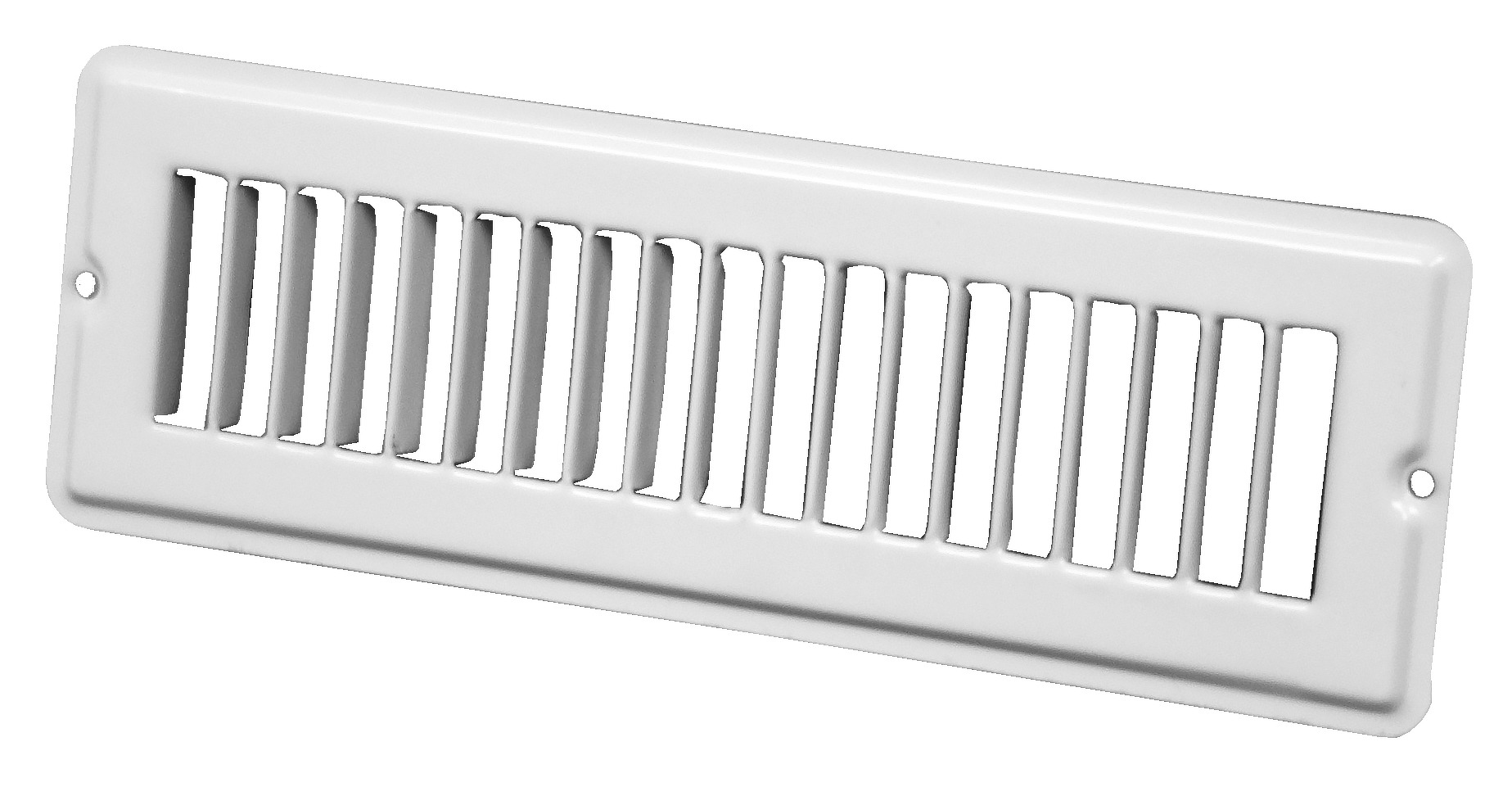

Steel construction- Rolled face
- With mounting holes
- 2¼” and 4” lengths, 10”, 12”, 14” widths
- Golden Brown or White finish
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| TG32B 1003 | 10" x 2¼" Brown | 24 | -- |
| TG32B 1004 | 10" x 4" Brown | 24 | -- |
| TG32B 1203 | 12" x 2¼" Brown | 24 | -- |
| TG32B 1204 | 12" x 4" Brown | 24 | -- |
| TG32B 1403 | 14" x 2¼" Brown | 24 | -- |
| TG32B 1404 | 14" x 4" Brown | 24 | -- |
| TG32W 1003 | 10" x 2¼" White | 24 | -- |
| TG32W 1004 | 10" x 4" White | 24 | -- |
| TG32W 1203 | 12" x 2¼" White | 24 | -- |
| TG32W 1204 | 12" x 4" White | 24 | -- |
| TG32W 1403 | 14" x 2¼" White | 24 | -- |
| TG32W 1404 | 14" x 4" White | 24 | -- |
| -- | |||
| -- |
| Unit Size (in.) | Overall Size (in.) | Face Velocity | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Pressure Loss | .006 | .010 | .016 | .022 | .031 | .040 | .050 | .062 | ||
| 2¼ x 10 | ||||||||||
| Ak .097" | 3 5/8 x 11 3/8 | Cfm | 29 | 38 | 48 | 58 | 68 | 77 | 87 | 97 |
| Throw | 2 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 6.5 | ||
| Spread | 3.5 | 4.5 | 5 | 6.5 | 7.5 | 8.5 | 10 | 11 | ||
| 2¼ x 12 | ||||||||||
| Ak .118" | 3 5/8 x 13 3/8 | Cfm | 35 | 47 | 59 | 70 | 82 | 94 | 106 | 118 |
| Throw | 2 | 3 | 3.5 | 4 | 4.5 | 5.5 | 6 | 7 | ||
| Spread | 3.5 | 5 | 5 | 7 | 8 | 10 | 11 | 12 | ||
| 2¼ x 14 | ||||||||||
| Ak .132" | 3 5/8 x 15 3/8 | Cfm | 39 | 52 | 65 | 79 | 92 | 105 | 118 | 131 |
| Throw | 2.5 | 3 | 3.5 | 4.5 | 5 | 6 | 6.5 | 7.5 | ||
| Spread | 3.5 | 4.5 | 6 | 7 | 8.5 | 10 | 11.5 | 12.5 | ||
| 4 x 10 | ||||||||||
| Ak .174" | 5 3/8 x 11 3/8 | Cfm | 52 | 69 | 86 | 104 | 121 | 138 | 156 | 173 |
| Throw | 2.5 | 3 | 4 | 4.5 | 5.5 | 6.5 | 7 | 8 | ||
| Spread | 4 | 4.5 | 6.5 | 8.5 | 9.5 | 11 | 12.5 | 14 | ||
| 4 x 12 | ||||||||||
| Ak .208" | 5 3/8 x 13 3/8 | Cfm | 62 | 83 | 104 | 124 | 145 | 166 | 187 | 208 |
| Throw | 2.5 | 3.5 | 4 | 5.5 | 6 | 7 | 8 | 8.5 | ||
| Spread | 4 | 6 | 7.5 | 9 | 10.5 | 12 | 13.5 | 15.5 | ||
| 4 x 14 | ||||||||||
| Ak .243" | 5 3/8 x 15 3/8 | Cfm | 72 | 97 | 121 | 145 | 170 | 194 | 218 | 243 |
| Throw | 3 | 4 | 5 | 6 | 7 | 7.5 | 8.5 | 9.5 | ||
| Spread | 4.5 | 6.5 | 8.5 | 9.5 | 11.5 | 13 | 14 | 16.5 |
