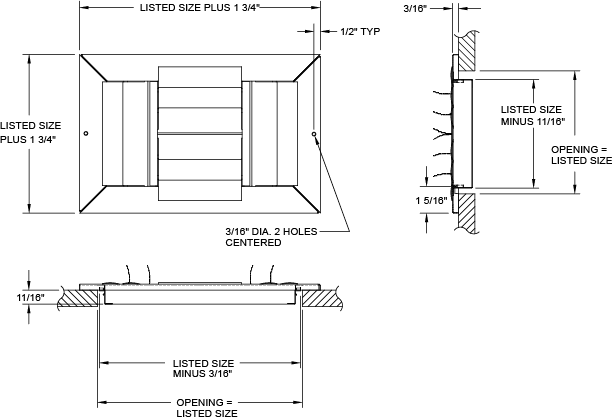

Sidewall or Ceiling
SACBG4 & AACBG4
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.
Adjustable, curved blades- 4-way deflection
- Steel construction (SACBG4)
- White finish (standard) or Mill finish
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| SACBG4W 0606 | 6" x 6" White | 24 | -- |
| SACBG4W 0808 | 8" x 8" White | 16 | -- |
| AACBG4W 0606 | 6" x 6" White | 24 | -- |
| AACBG4W 1010 | 10" x 10" White | 16 | -- |
| Unit Size | Face Velocity | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure Loss | 0.007 | 0.010 | 0.016 | 0.022 | 0.031 | 0.040 | 0.050 | 0.062 | 0.075 | 0.090 | |
| 6 x 6 | |||||||||||
| Ak .090" | Cfm | 27 | 35 | 45 | 55 | 65 | 70 | 80 | 90 | 100 | 110 |
| Throw A | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 5.0 | 5.5 | |
| Throw B | 1.5 | 2.0 | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 6.0 | 6.5 | 7.0 | |
| 8 x 8 | |||||||||||
| Ak .160" | Cfm | 48 | 2 | 80 | 95 | 110 | 130 | 145 | 160 | 175 | 190 |
| Throw | 1.5 | 2.5 | 3.5 | 4.0 | 4.5 | 5.0 | 6.0 | 6.5 | 7.0 | 7.5 | |
| 2.5 | 3.5 | 4.0 | 5.0 | 5.5 | 7.0 | 7.5 | 8.5 | 9.0 | 10.0 | ||
| 10 x 10 | |||||||||||
| Ak .240" | Cfm | 72 | 95 | 120 | 145 | 170 | 190 | 215 | 240 | 265 | 290 |
| Throw | 2.0 | 3.0 | 4.0 | 5.0 | 5.5 | 6.5 | 7.5 | 8.0 | 9.0 | 10.0 | |
| 2.5 | 3.5 | 4.5 | 5.5 | 6.0 | 7.0 | 8.0 | 9.0 | 10.0 | 11.0 | ||
| 12 x 12 | |||||||||||
| Ak .350" | Cfm | 105 | 140 | 175 | 210 | 245 | 280 | 315 | 350 | 385 | 420 |
| Throw A | 2.5 | 3.5 | 4.5 | 6.0 | 6.5 | 7.5 | 8.5 | 9.5 | 10.5 | 12.0 | |
| Throw B | 3.5 | 4.0 | 5.0 | 6.5 | 7.5 | 8.5 | 9.5 | 10.0 | 11.0 | 13.0 | |
| 14 x 14 | |||||||||||
| Ak .480" | Cfm | 144 | 190 | 240 | 290 | 335 | 385 | 430 | 480 | 530 | 575 |
| Throw A | 3.0 | 4.0 | 5.0 | 6.5 | 7.5 | 8.5 | 9.5 | 10.0 | 12.0 | 13.0 | |
| Throw B | 3.5 | 5.0 | 6.5 | 7.5 | 9.0 | 10.0 | 11.0 | 12.5 | 14.0 | 15.0 |
Note:
Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
