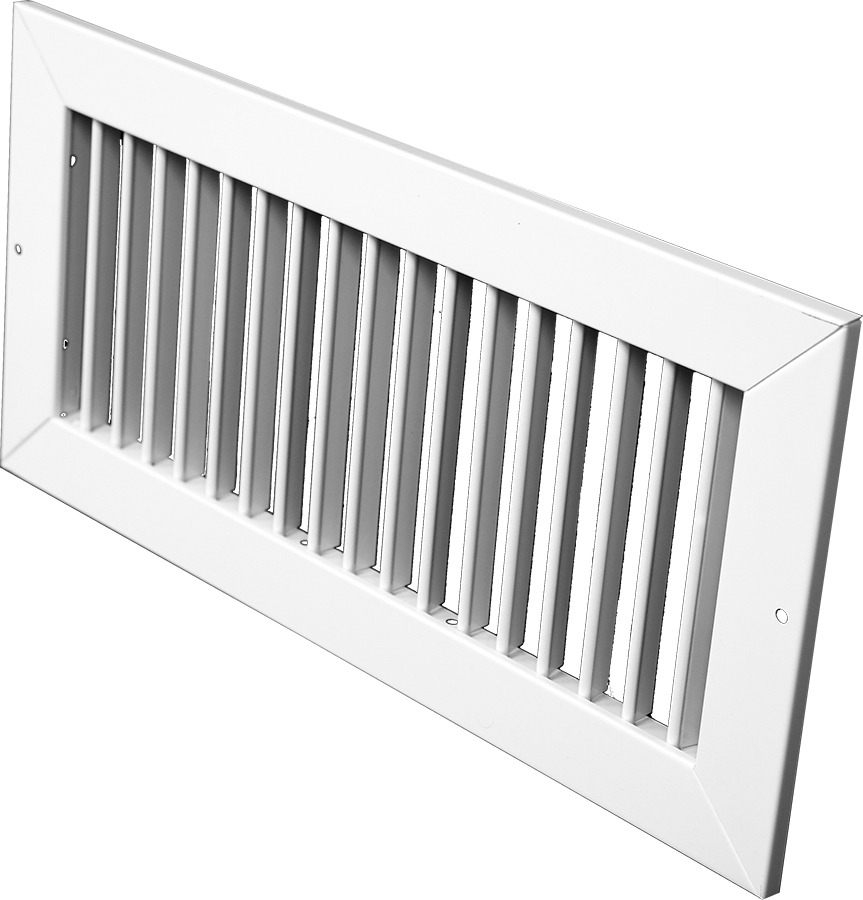

RGV

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

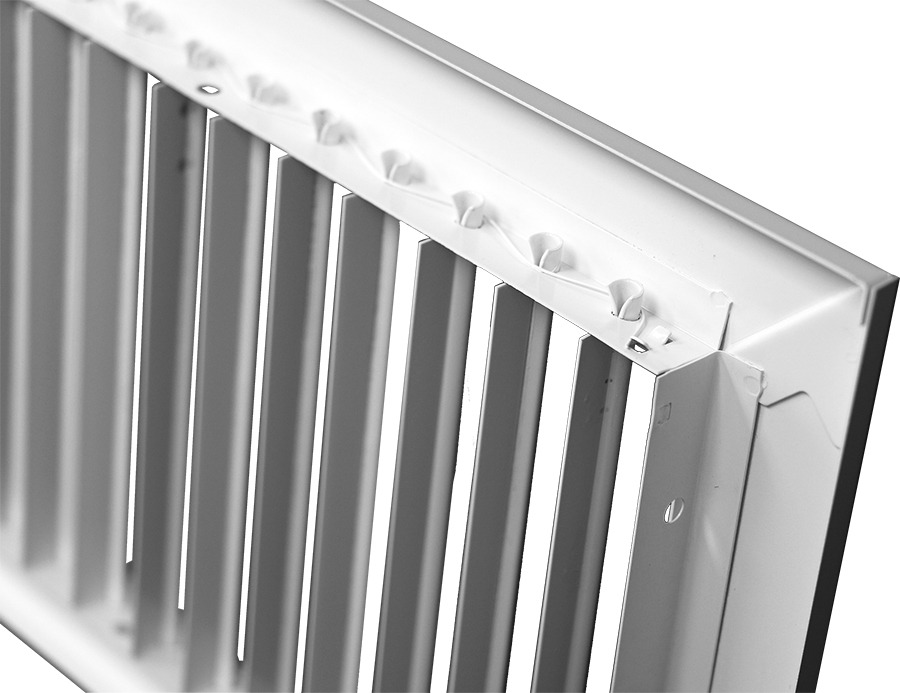

Adjustable, vertical, roll-form face bars
3/4" bar spacing for easy adjustment
Single deflection
Steel construction (RGV)
Aluminum construction (ARGV)
White finish
Made in the U.S.A.

Catalog

Series RGV Submittal

Product Details

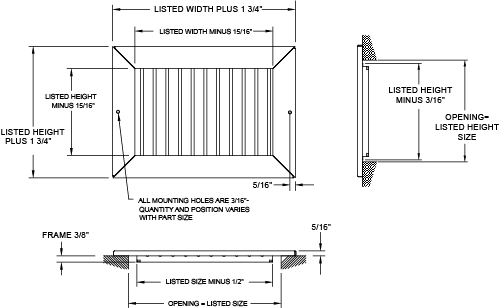

Dimensional Drawings
Performance

Part #	Description	Ctn Qty	List Price Each
RGVW 0604	6" x 4" White	12	--
RGVW 0606	6" x 6" White	12	--
RGVW 0808	8" x 8" White	12	--
RGVW 1004	10" x 4" White	12	--
RGVW 1208	12" x 8" White	12	--
RGVW 1406	14" x 6" White	12	--
RGVW 1412	14" x 12" White	6	--
RGVW 1810	18" x 10" White	6	--
RGVW 2408	24" x 8" White	6	--

Unit	Face Velocity	300	400	500	600	700	800	900	1000
Size	Pressure Loss	0.006	0.01	0.016	0.022	0.031	0.04	0.05	0.062
6x4	Cfm	27	36	45	54	63	72	81	90
Ak .090	Throw	3	4	5	7	8	9	10	11
6x6	Cfm	42	56	69	83	97	111	125	139
Ak .139	Throw	5	6	7	9	10	12	13	15
8x4	Cfm	35	47	59	71	83	94	106	118
Ak .118	Throw	4	5	7	8	9	11	12	13
8x6	Cfm	56	75	94	113	131	150	169	188
Ak .188	Throw	5	7	8	10	12	14	15	17
8x8	Cfm	77	103	128	154	180	206	231	257
Ak .257	Throw	6	7	9	11	13	15	17	19
10x4	Cfm	44	58	73	88	102	117	131	146
Ak .146	Throw	5	6	8	9	11	12	13	14
10x5	Cfm	58	78	97	117	136	156	175	194
Ak .194	Throw	5	7	8	11	12	13	15	16
10x6	Cfm	71	94	118	142	165	189	213	236
Ak .236	Throw	6	8	9	11	13	15	17	19
10x8	Cfm	98	131	163	196	228	261	294	326
Ak .326	Throw	7	8	10	12	14	16	17	21
10x10	Cfm	125	167	208	250	292	333	375	417
Ak .417	Throw	7	9	12	14	16	18	20	23
12x4	Cfm	54	72	90	108	126	144	163	181
Ak .181	Throw	5	7	8	10	12	14	15	17
12x5	Cfm	69	92	115	138	160	183	206	229
Ak .229	Throw	6	7	9	11	13	15	17	19
12x6	Cfm	85	114	142	171	199	228	256	285
Ak .285	Throw	7	8	10	12	15	17	19	21
12x8	Cfm	117	156	194	233	272	311	350	389
Ak .389	Throw	7	9	11	13	18	17	19	22
12x10	Cfm	150	200	250	300	350	400	450	500
Ak .500	Throw	8	11	13	16	19	22	25	28
12x12	Cfm	183	244	306	367	428	489	550	611
Ak .611	Throw	9	11	14	17	20	22	25	29
14x4	Cfm	63	83	104	125	146	167	188	208
Ak .208	Throw	5	7	9	11	13	15	17	18
14x6	Cfm	94	125	156	188	219	250	281	313
Ak .313	Throw	7	8	11	13	16	18	20	23
14x8	Cfm	138	183	229	275	321	367	413	458
Ak .458	Throw	8	9	12	14	17	19	21	24
14x10	Cfm	175	233	292	350	408	467	525	583
Ak .583	Throw	9	11	13	16	19	22	25	28
14x12	Cfm	215	286	358	429	501	572	644	715
Ak .715	Throw	9	12	14	18	22	24	27	31
14x14	Cfm	252	336	420	504	588	672	756	840
Ak .840	Throw	9	15	19	23	27	31	34	38
16x4	Cfm	69	92	115	138	160	183	206	229
Ak .229	Throw	7	10	12	15	17	20	22	25
16x6	Cfm	110	147	184	221	258	294	331	368
Ak .368	Throw	7	10	12	15	17	20	22	25
16x8	Cfm	150	200	250	300	350	400	450	500
Ak .500	Throw	8	10	13	15	18	20	22	25
16x10	Cfm	192	256	319	383	447	511	575	639
Ak .639	Throw	7	10	12	15	17	20	22	25
16x12	Cfm	233	311	389	467	544	622	700	778
Ak .778	Throw	7	10	12	15	17	20	22	25
16x16	Cfm	296	394	493	592	690	789	888	986
Ak .986	Throw	12	15	20	23	28	31	33	39
18x4	Cfm	77	103	128	154	180	206	231	257
Ak .257	Throw	7	10	12	15	17	20	22	25
18x6	Cfm	125	167	208	250	292	333	375	417
Ak .417	Throw	8	11	13	16	19	22	24	27
18x8	Cfm	171	228	285	342	399	456	513	569
Ak .569	Throw	9	11	13	16	19	22	25	28
18x10	Cfm	217	289	361	433	506	578	650	722
Ak .722	Throw	7	10	12	15	17	20	22	25
18x12	Cfm	265	353	441	529	617	706	794	882
Ak .882	Throw	7	10	12	15	17	20	22	25
18x16	Cfm	333	444	556	667	778	889	1000	1111
Ak 1.111	Throw	7	10	12	15	17	20	22	25
18x18	Cfm	381	508	635	763	890	1017	1144	1271
Ak 1.271	Throw	7	10	12	15	17	20	22	25
20x4	Cfm	88	117	146	175	204	233	263	292
Ak .292	Throw	7	10	12	15	17	20	22	25
20x6	Cfm	140	186	233	279	326	372	419	465
Ak .465	Throw	8	11	14	16	20	23	25	28
20x8	Cfm	192	256	319	383	447	511	575	639
Ak .639	Throw	9	12	15	18	21	23	26	29
20x10	Cfm	244	325	406	488	569	650	731	813
Ak .813	Throw	7	10	12	15	17	20	22	25
20x12	Cfm	296	394	493	592	690	789	888	986
Ak .986	Throw	7	10	12	15	17	20	22	25
20x14	Cfm	348	464	580	696	812	928	1044	1160
Ak 1.160	Throw	7	10	12	15	17	20	22	25
20x16	Cfm	373	497	622	746	870	994	1119	1243
Ak 1.243	Throw	7	10	12	15	17	20	22	25
20x18	Cfm	425	567	708	850	992	1133	1275	1417
Ak 1.417	Throw	7	10	12	15	17	20	22	25
20x20	Cfm	479	639	799	958	1118	1278	1438	1597
Ak 1.597	Throw	7	10	12	15	17	20	22	25
24x4	Cfm	104	139	174	208	243	278	313	347
Ak .347	Throw	7	10	12	15	17	20	22	25
24x6	Cfm	169	225	281	338	394	450	506	563
Ak .563	Throw	9	12	15	18	21	23	26	29
24x8	Cfm	231	308	385	463	540	617	694	771
Ak .771	Throw	10	13	17	19	23	25	28	31
24x10	Cfm	294	392	490	588	685	783	881	979
Ak .979	Throw	7	10	12	15	17	20	22	25
24x12	Cfm	358	478	597	717	836	956	1075	1194
Ak 1.194	Throw	7	10	12	15	17	20	22	25
24x12	Cfm	421	561	701	842	982	1122	1263	1403
Ak 1.403	Throw	7	10	12	15	17	20	22	25
24x16	Cfm	452	603	753	904	1055	1206	1356	1507
Ak 1.507	Throw	7	10	12	15	17	20	22	25
24x18	Cfm	517	689	861	1033	1206	1378	1550	1722
Ak 1.722	Throw	7	10	12	15	17	20	22	25
24x24	Cfm	706	942	1177	1413	1648	1883	2119	2354
Ak 2.354	Throw	7	10	12	15	17	20	22	25
30x6	Cfm	213	283	354	425	496	567	638	708
Ak .708	Throw	9	15	19	23	27	31	34	38
30x8	Cfm	292	389	486	583	681	778	875	972
Ak .972	Throw	12	15	20	23	28	31	33	39
30x10	Cfm	371	494	618	742	865	989	1113	1236
Ak 1.236	Throw	7	10	12	15	17	20	22	25
30x12	Cfm	450	600	750	900	1050	1200	1350	1500
Ak 1.500	Throw	7	10	12	15	17	20	22	25
30x14	Cfm	531	708	885	1063	1240	1417	1594	1771
Ak 1.771	Throw	7	10	12	15	17	20	22	25
30x16	Cfm	571	761	951	1142	1332	1522	1713	1903
Ak 1.903	Throw	7	10	12	15	17	20	22	25
30x18	Cfm	650	867	1083	1300	1517	1733	1950	2167
Ak 2.167	Throw	7	10	12	15	17	20	22	25
36x6	Cfm	256	342	427	513	598	683	769	854
Ak .854	Throw	7	10	12	15	17	20	22	25
36x10	Cfm	448	597	747	896	1045	1194	1344	1493
Ak 1.493	Throw	7	10	12	15	17	20	22	25
36x12	Cfm	544	725	906	1088	1269	1450	1631	1813
Ak 1.813	Throw	7	10	12	15	17	20	22	25
36x14	Cfm	600	800	1000	1200	1400	1600	1800	2000
Ak 2.000	Throw	7	10	12	15	17	20	22	25
