Ceiling (Round & Square)
P20
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

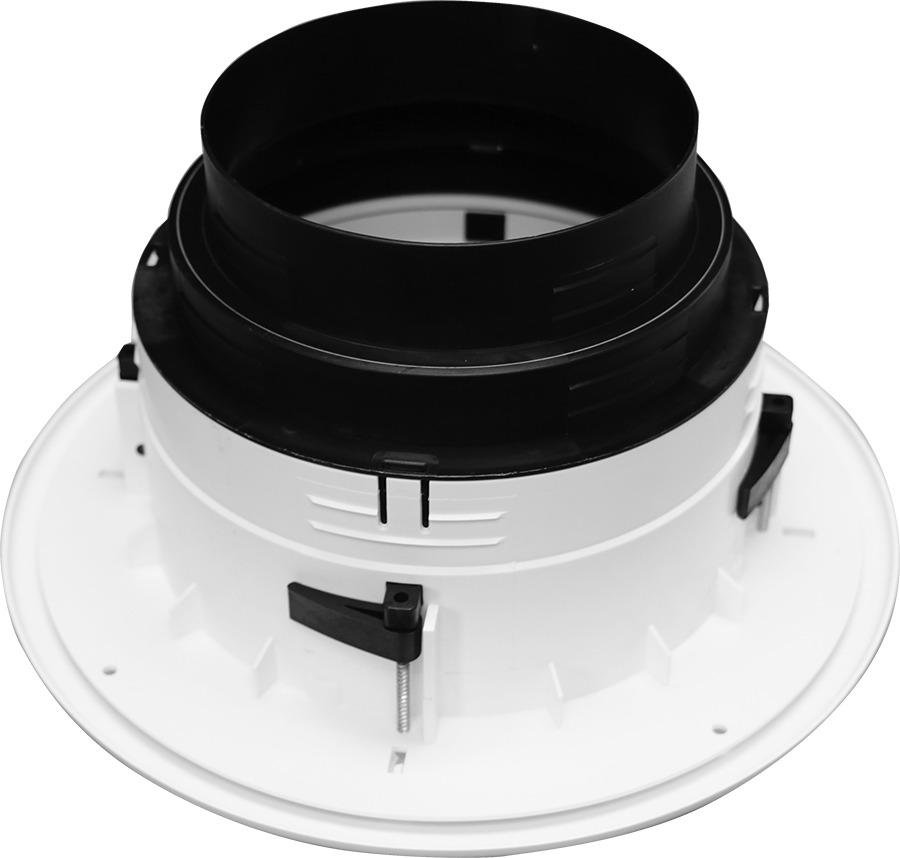

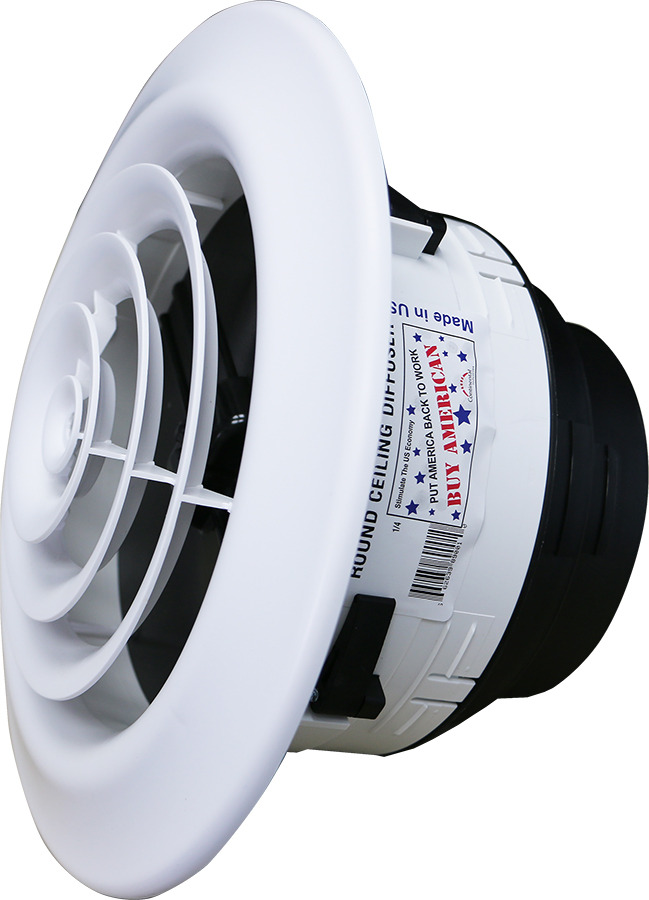

Composite Plastic construction- Integrated boot (collar), damper, and diffuser

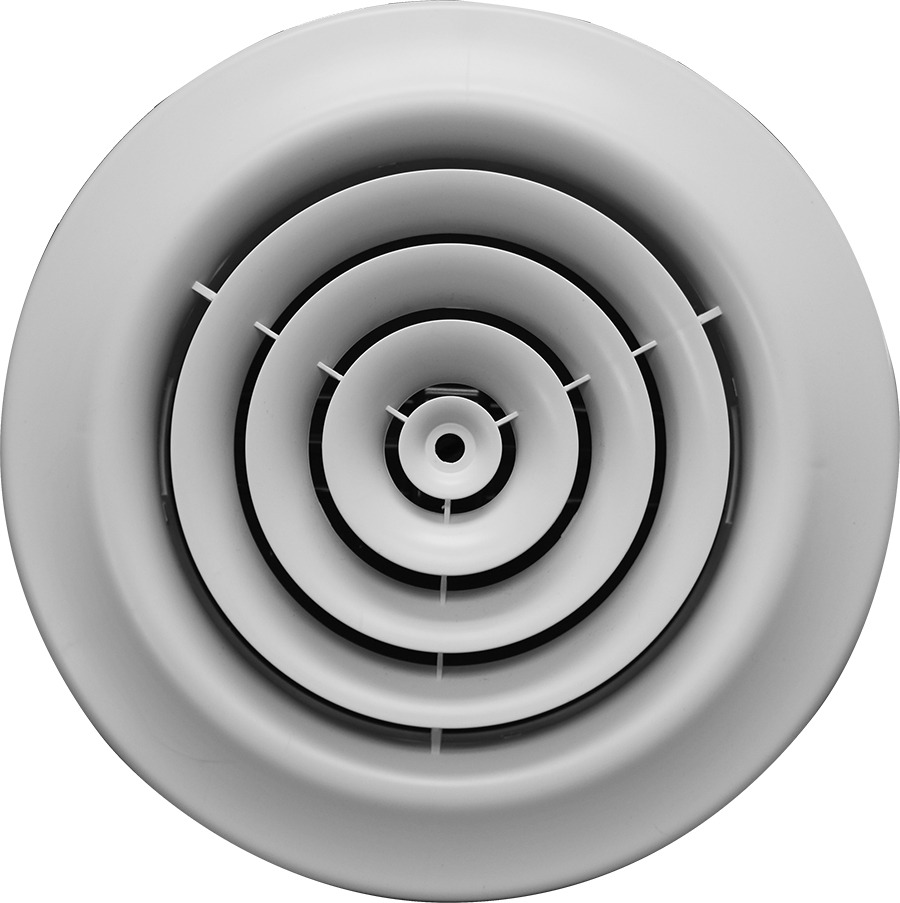

- 360° diffusion

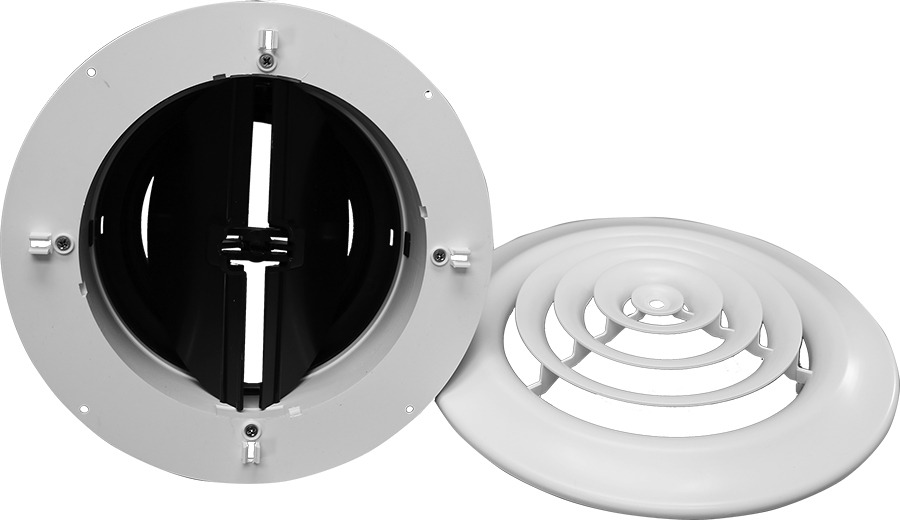

- Removeable, snap-in diffuser face
- Concealed mounting screws

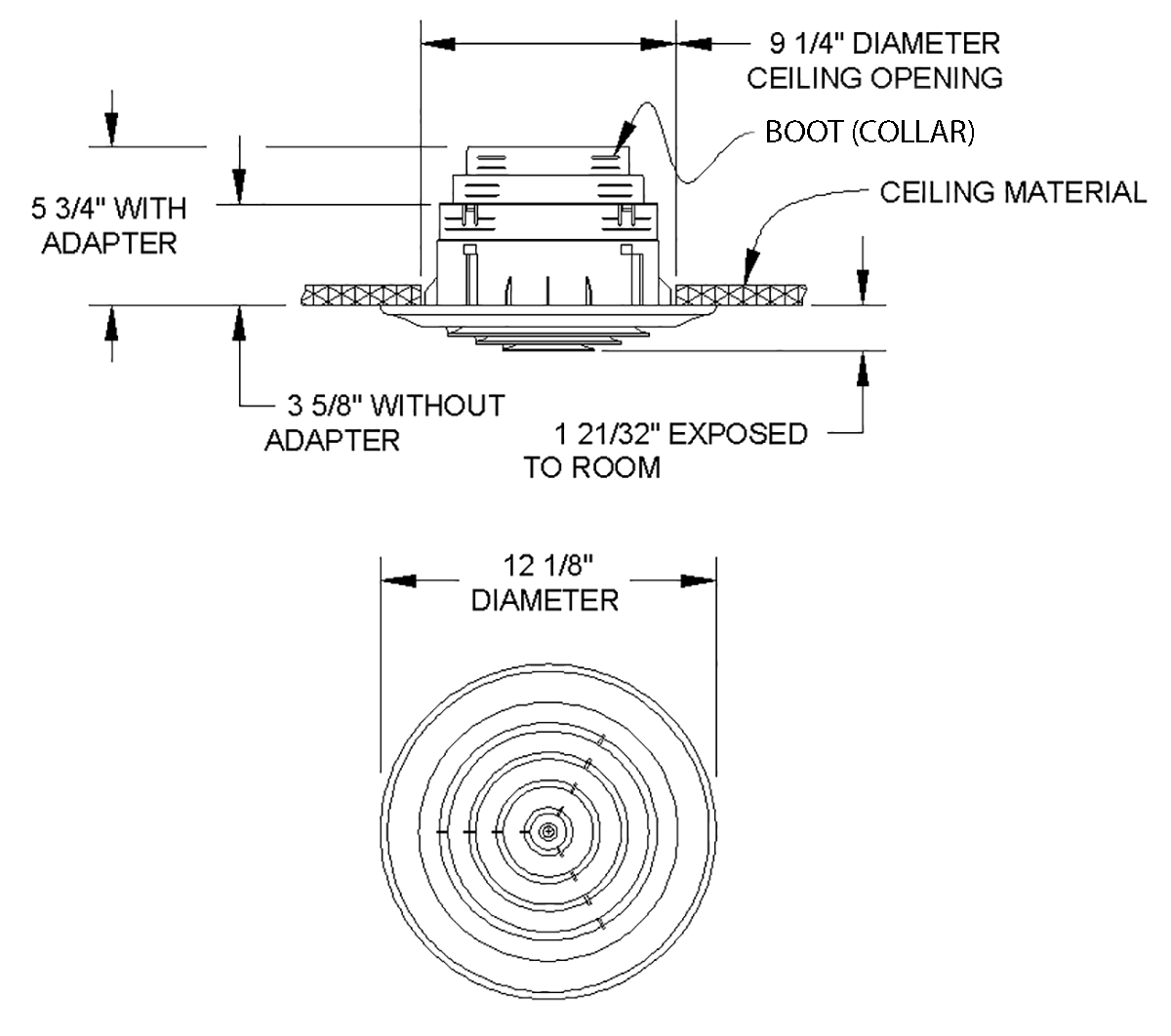

- Adjustable collar; use with 6”, 7” or 8” flexible duct
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| P20W 08 | 8" White | 4 | -- |
| Diffusion Pattern | Collar Size Ak factor | Face Velocity | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Pressure Loss | 0.006 | 0.010 | 0.016 | 0.022 | 0.031 | 0.040 | 0.050 | 0.062 | ||
| 360° | 6" collar Ak .18 | Cfm | 54 | 72 | 90 | 108 | 126 | 144 | 162 | 180 |
| Throw | 3 | 4 | 5 | 7 | 8 | 9 | 10 | 11 | ||
| 7" collar Ak .25 | Cfm | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | |
| Throw | 4 | 5 | 6 | 8 | 9 | 11 | 12 | 13 | ||
| 8" collar Ak .33 | Cfm | 78 | 104 | 130 | 156 | 182 | 208 | 234 | 260 | |
| Throw | 5 | 6 | 7 | 9 | 10 | 12 | 13 | 15 |
