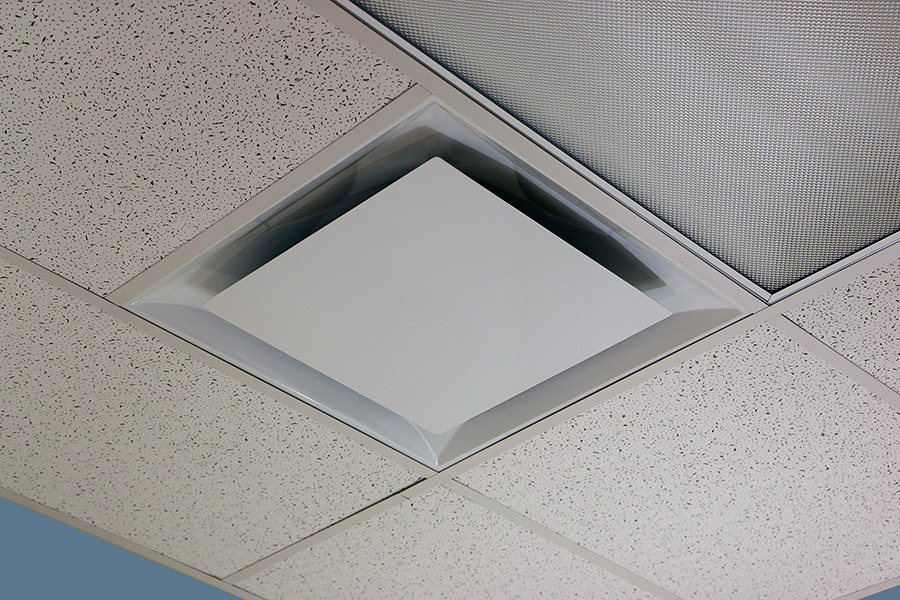

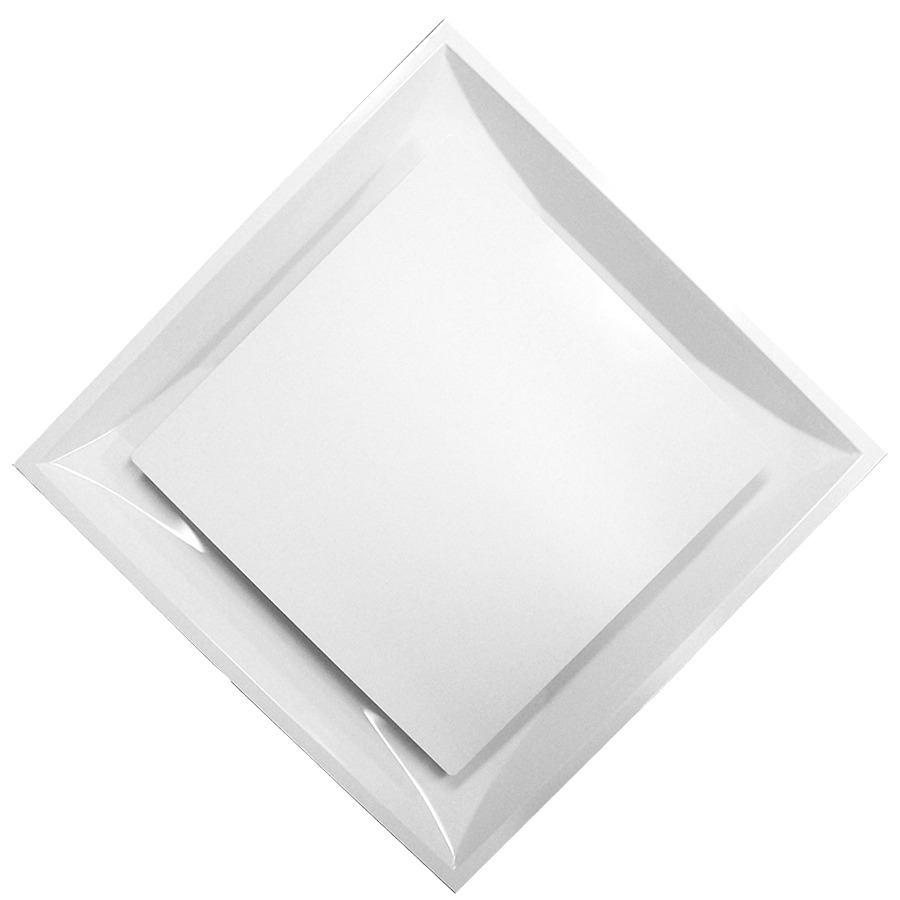

Steel T-Bar (Lay-in)

OPD

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

  • Heavy gauge plaque with corner radii
  • Steel construction
  • 360° diffusion pattern
  • Fixed collar and no collar models
  • R1 insulation blanket
  • White finish
  • Made in the U.S.A.
  • Series OPD NI OPD with no insulation
  • OPD with no insulation
  • Series OPD P6 OPD + R6-rated fiberglass plenum
  • OPD + R6-rated fiberglass plenum

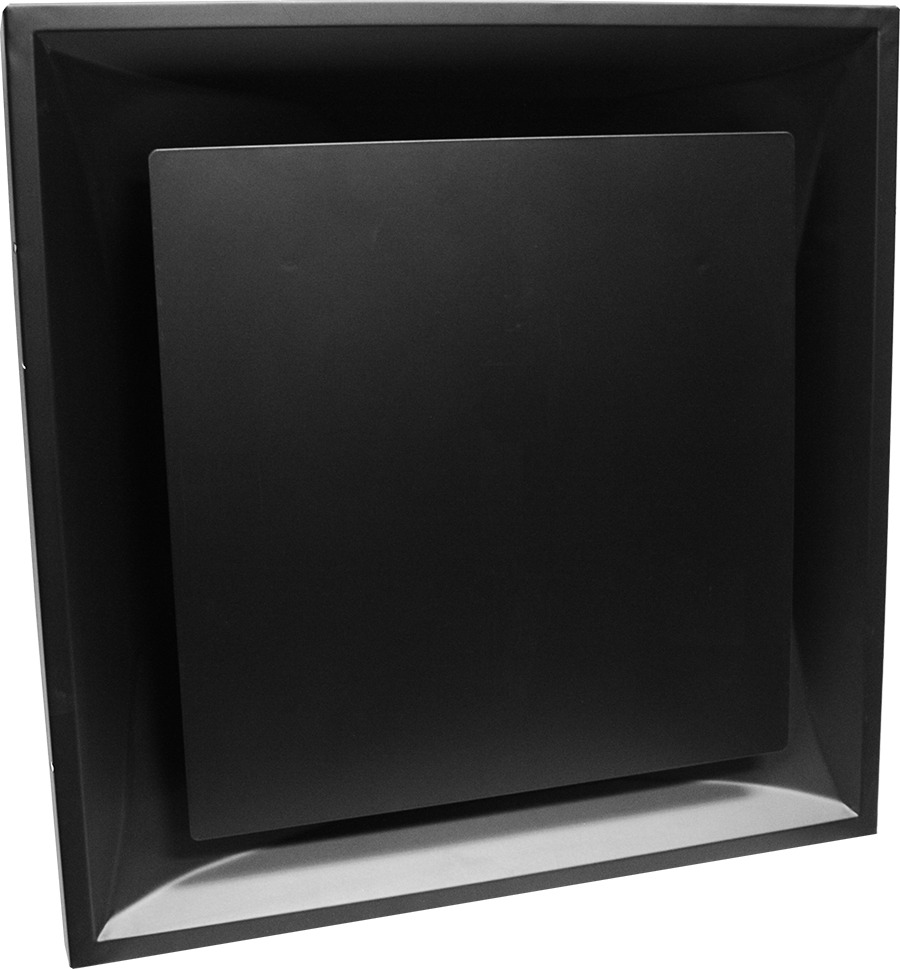

  • Series OPDANIBL OPD with no insulation and Black finish
  • OPD with no insulation and Black finish
Catalog
Series OPD SubmittalSeries OPD NI SubmittalSeries OPD P6 SubmittalSeries OPDANIBL Submittal
Part #DescriptionCtn QtyList Price Each
OPD 06NI6" Collar, No Insulation1--
OPD 08NI8" collar, No insulation1--
OPD 10NI10" collar, No insulation1--
OPD 12NI12" collar, No insulation1--
OPD 14NI14" collar, No insulation1--
OPD ANINo Collar, No Insulation1--

OPD ANIBLNo Collar, No Insulation, Black finish1--

OPD 066" collar, R1 insulation blanket1--
OPD 088" collar, R1 insulation blanket1--
OPD 1010" collar, R1 insulation blanket1--
OPD 1212" collar, R1 insulation blanket1--
OPD 1414" collar, R1 insulation blanket1--
OPD ANo Collar, R1 Insulation blanket1--

OPD 0666" collar, R6 insulation blanket1--
OPD 0868" Collar, R6 insulation blanket1--
OPD 10610" Collar, R6 insulation blanket1--
OPD 12612" Collar, R6 insulation blanket1--
OPD 14614" Collar, R6 insulation blanket1--
OPD A6No collar, R6 insulation blanket1--

OPD AP6No collar, R6 FIBERGLASS PLENUM1--
Collar SizeNeck Velocity4005006007008009001000120014001600
6”
An .20
Ak .78"Cfm80100120135155175195240280320
 Ps<.010.010.020.020.030.040.040.060.090.11
 Nc<25 dB<25 dB<25 dB<25 dB<25 dB<25 dB<25 dB25 dB30 dB35 dB
 Throw2334455678
7”
An .27
Ak .88"Cfm110135160190200240270320380420
 Ps0.010.010.020.030.030.040.050.070.100.13
 Nc<25 dB<25 dB<25 dB<25 dB<25 dB<25 dB25 dB30 dB35 dB40 dB
 Throw345567891113
8”
An .35
Ak .92"Cfm140175210245280320350420490560
 Ps0.010.020.020.030.040.050.060.090.120.15
 Nc<25 dB<25 dB<25 dB<25 dB<25 dB25 dB30 dB35 dB35 dB40 dB
 Throw4567789111315
9”
An .44
Ak 1.20"Cfm180220270310350390440530610700
 Ps0.010.020.030.040.050.060.070.100.150.18
 Nc<25 dB<25 dB<25 dB<25 dB25 dB30 dB35 dB40 dB40 dB45 dB
 Throw5678101112151719
10”
An .54
Ak 1.20"Cfm220270325380435490545655765870
 Ps0.010.020.030.040.050.070.080.120.170.21
 Nc<25 dB<25 dB<25 dB<25 dB25 dB30 dB35 dB35 dB40 dB45 dB
 Throw67910111314172022
12”
An .78
Ak 1.65"Cfm32039047055063071079094011001250
 Ps0.020.020.030.050.060.070.090.130.180.23
 Nc<25 dB<25 dB<25 dB25 dB30 dB35 dB35 dB40 dB45 dB>45 dB
 Throw68911121415182124
14”
An 1.07
Ak 2.06"Cfm4305406407508609601075127515001700
 Ps0.020.040.050.070.090.120.140.210.280.35
 Nc<25 dB<25 dB<25 dB25 dB30 dB35 dB40 dB40 dB45 dB>45 dB
 Throw781012131516192325
