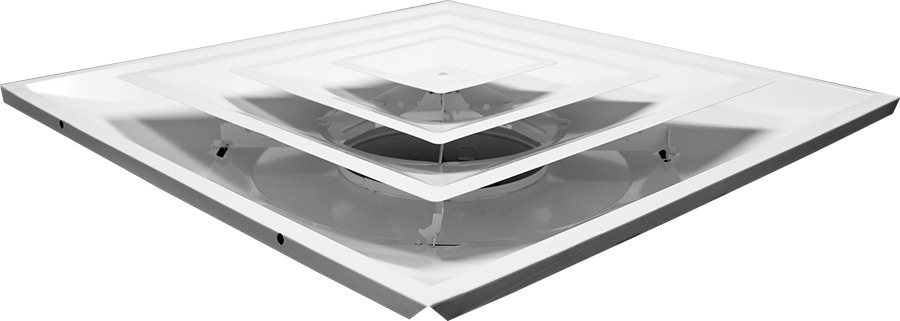

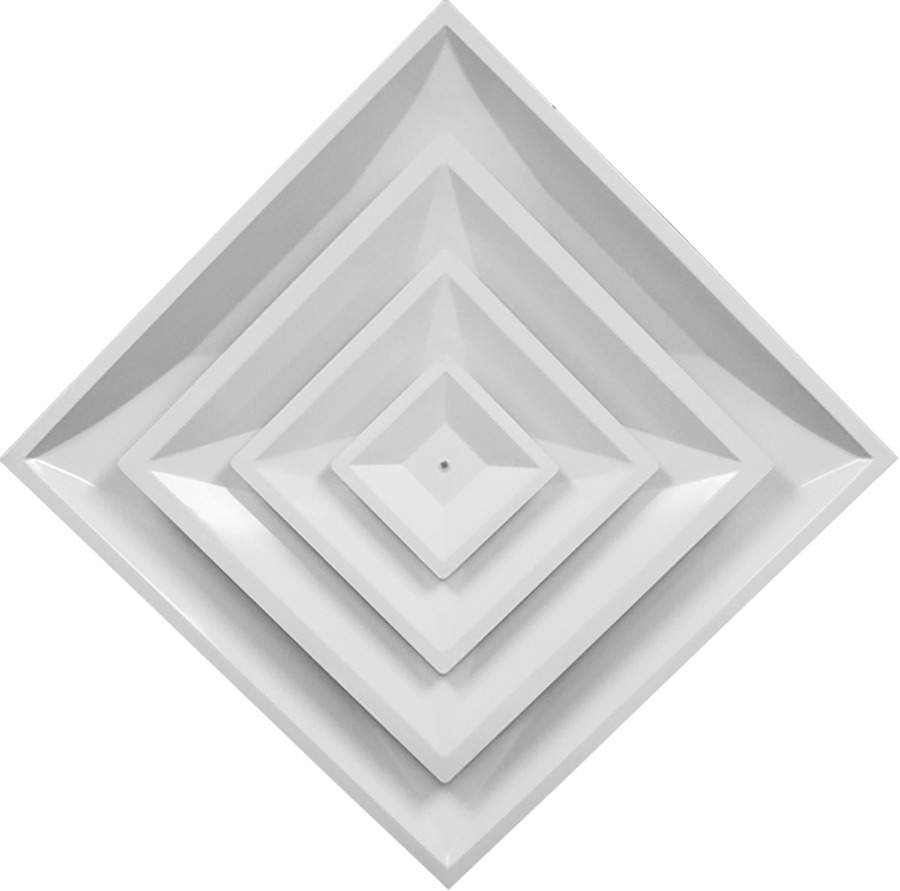

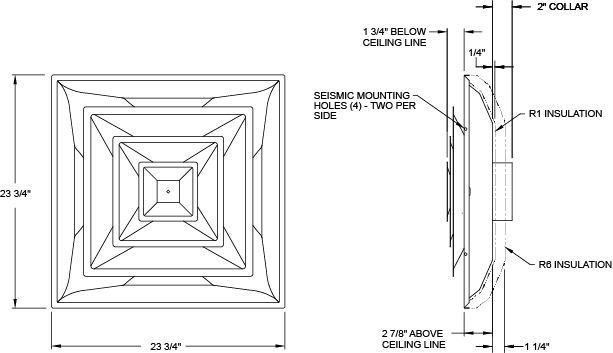

Steel T-Bar (Lay-in)

HVS

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

  • Steel construction
  • 3-tier diffusion, 360° pattern
  • Fixed collar and no collar models
  • R1 insulation blanket
  • White finish
  • Made in the U.S.A.
  • Packed 1 per carton, 36 per pallet
  • Series HVS-38D HVS + installed Series 3800 damper
  • HVS + installed Series 3800 damper
  • Series HVS 6 HVS with R6 insulation blanket
  • HVS with R6 insulation blanket

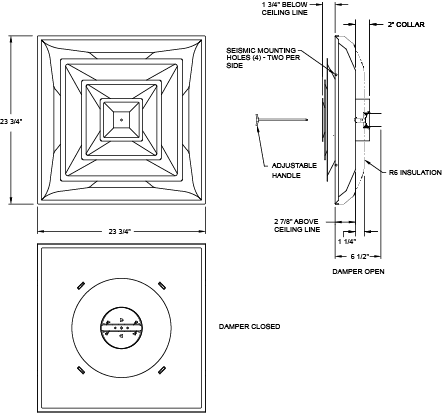

  • Series HVS 6-38D HVS + installed Series 3800 damper and R6 insulation blanket
  • HVS + installed Series 3800 damper and R6 insulation blanket
Catalog
Series HVS SubmittalSeries HVS-38D SubmittalSeries HVS 6 SubmittalSeries HVS 6-38D Submittal
Part #DescriptionCtn QtyList Price Each

HVS 06Fixed 6" Collar,R11--
HVS 08Fixed 8" Collar,R11--
HVS 10Fixed 10" Collar,R11--
HVS 12Fixed 12" Collar,R11--
HVS 14Fixed 14" Collar,R11--
HVS ANo Collar, R11--

HVS 06-38DFixed, 6" Collar,R1,38 Damper1--
HVS 08-38DFixed, 8" Collar,R1, 38 Damper1--
HVS 10-38DFixed, 10" Collar,R1, 38 Damper1--
HVS 12-38DFixed, 12" Collar,R1, 38 Damper1--
HVS 14-38DFixed, 14" Collar,R1, 38 Damper1--

HVS 066Fixed, 6" Collar,R6 1--
HVS 086Fixed, 8" Collar,R61--
HVS 106Fixed, 10" Collar,R61--
HVS 126Fixed, 12" Collar,R61--
HVS 146Fixed, 14" Collar,R61--
HVS A6No Collar, R61--

HVS 066-38DFixed, 6" Collar,R6 38 Damper1--
HVS 086-38DFixed, 8" Collar,R6, 38 Damper1--
HVS 106-38DFixed, 10" Collar,R6, 38 Damper1--
HVS 126-38DFixed, 12" Collar,R6, 38 Damper1--
HVS 146-38DFixed, 14" Collar,R6, 38 Damper1--

Unit SizeNeck Velocity4005006007008009001000120014001600
6"Cfm80100120135155175195235275315
An .20Ps.008.012.017.021.028.035.043.063.086.112
Ak .78Nc<20<20<20<20<20<2020253035
 Throw2333.544.55678
7"Cfm110135160190215240270320375415
An .27Ps.009.013.019.025.033.042.051.074.101.131
Ak .18Nc<20<20<20<20<202025303540
 Throw344.55678910.512.5
8"Cfm140175210245280315350420490560
An .35Ps.010.015.022.029.038.049.060.086.117.150
Ak .92Nc<20<20<20<20202530353540
 Throw3.54.55.56.578910.512.514.5
9"Cfm180220265310350390440525610700
An.44Ps.012.018.026.035.046.058.072.104.142.181
Ak 1.20Nc<20<20<20<20202530354045
 Throw4.55.56.589.510.51214.516.519
10"Cfm220270325380435490545655765870
An .54Ps.014.021.030.041.054.068.084.122.167.212
Ak 1.20Nc<20<20<2020253035354045
 Throw5.578.5101112.5141719.522
12"Cfm31539047055063070578594011001255
An .78Ps.015.023.033.045.060.072.094.132.180.230
Ak 1.65Nc<20<202025303535404545
 Throw67.5910.51213.515182124
14"Cfm4305356407508559601070128515001700
An 1.07Ps.023.036.051.071.093.115.140.205.277.350
Ak 2.06Nc<20<202025303540404545
 Throw6.589.511.51314.5161922.525
Terminal Velocity of 75 fpm
