Return Air Grilles & Filter Grilles

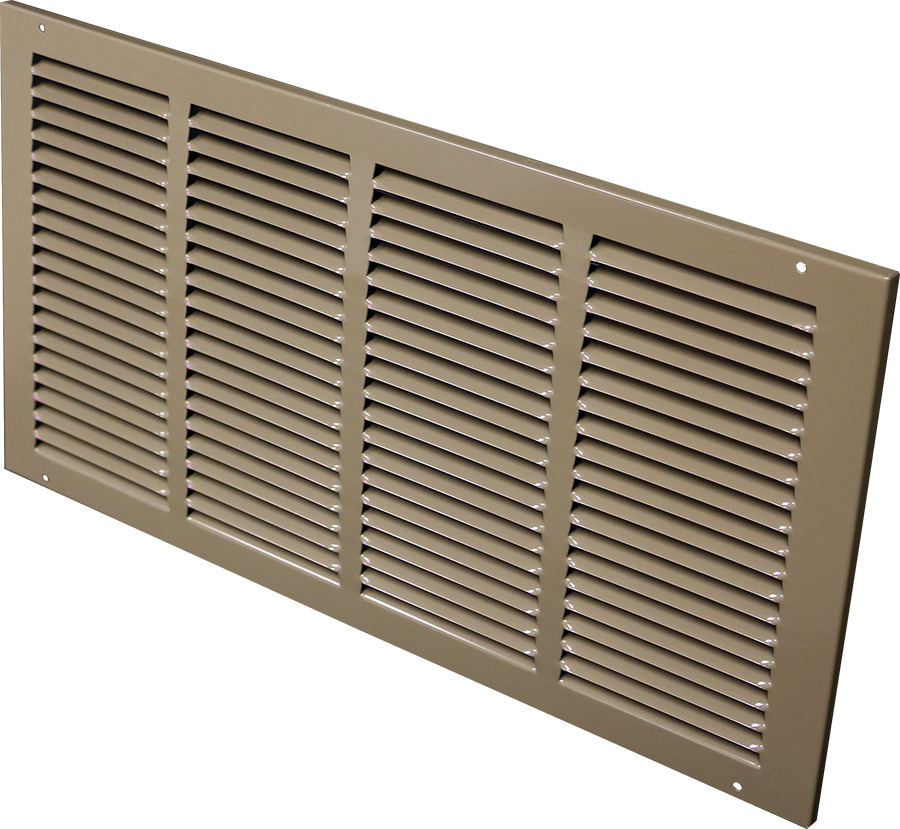

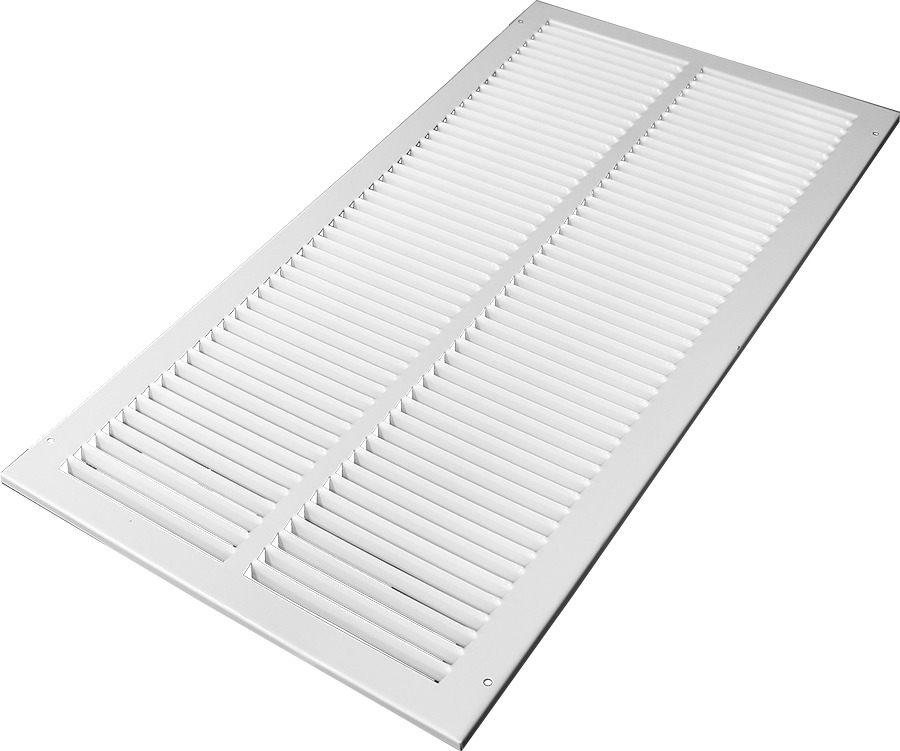

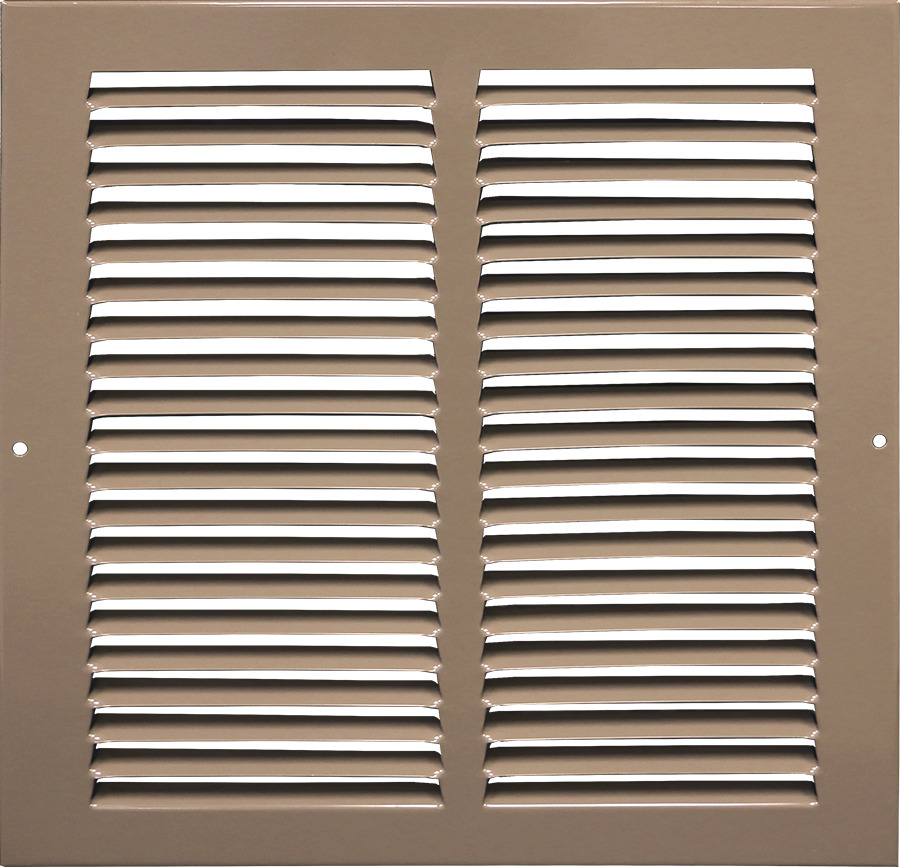

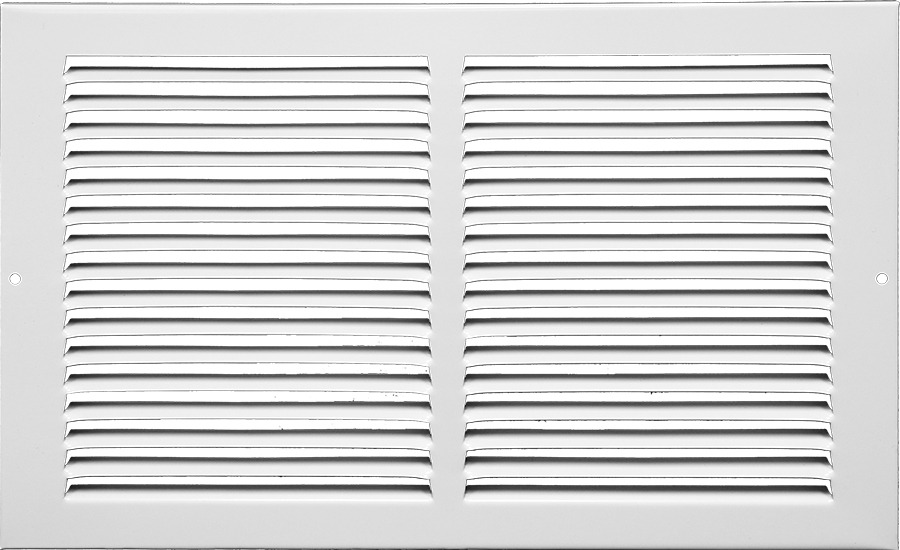

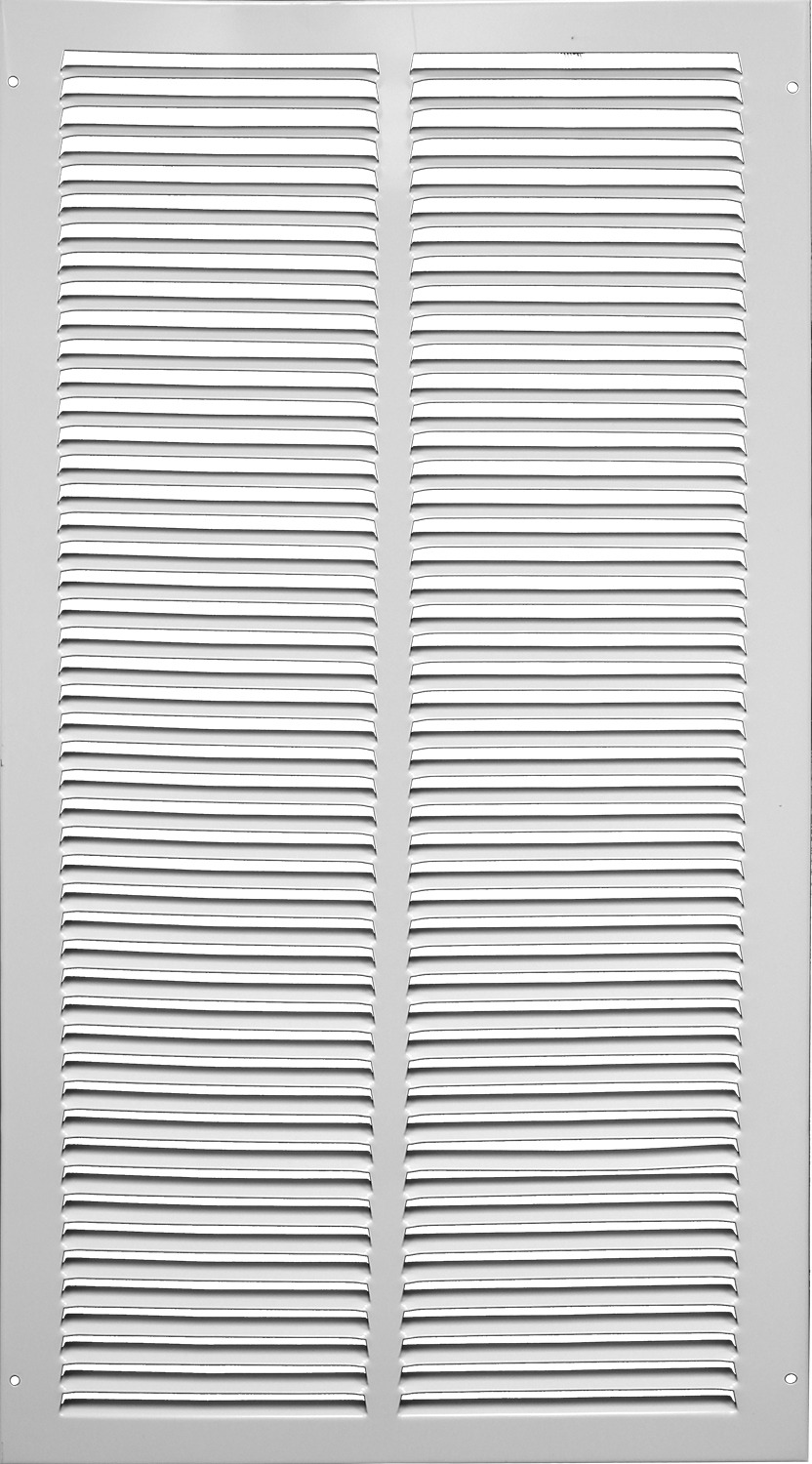

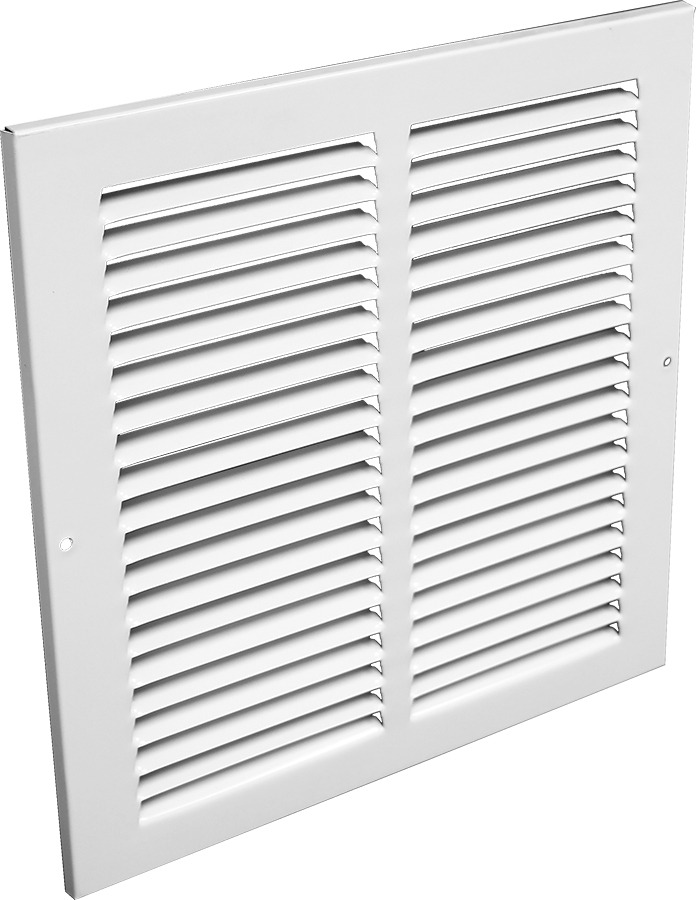

G25 & A25

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

  • Lanced face
  • 1/2” spaced fins
  • Steel construction (G25)
  • Aluminum construction (A25)
  • Vast number of sizes
  • White finish
  • Made in the U.S.A.
Catalog

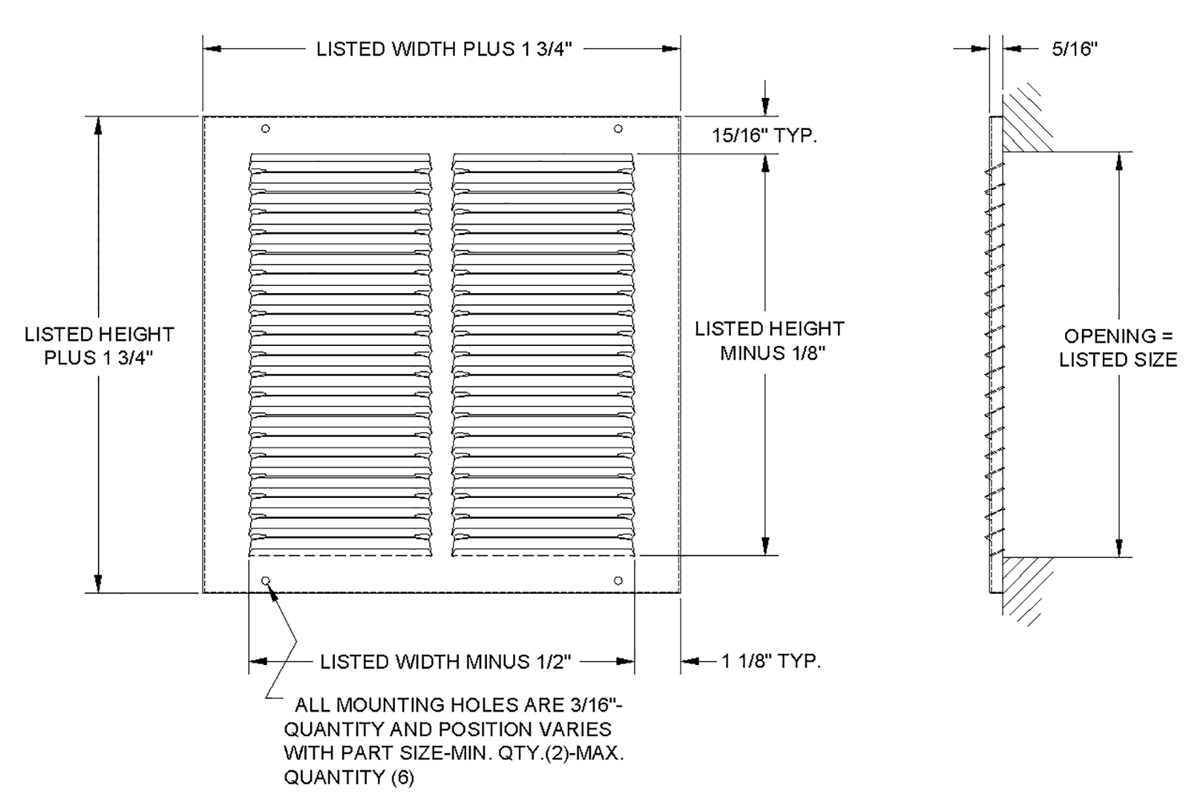

Series G25 SubmittalSeries A25 Submittal
Part #DescriptionCtn QtyList Price Each
G25W 04184" x 18" White10--
G25W 06046" x 4" White20--
G25W 06066" x 6" White20--
G25W 06126" x 12" White20--
G25W 06186" x 18" White10--
G25W 08038" x 3" White20--
G25W 08048" x 4" White20--
G25W 08058" x 5" White20--
G25W 08068" x 6" White20--
G25W 08088" x 8" White20--
G25W 08108" x 10" White20--
G25B 08148" x 14" Brown20--
G25W 08168" x 16" White10--
G25B 08168" x 16" Brown10--
G25B 08188" x 18" Brown10--
G25W 08208" x 20" White10--
G25B 08208" x 20" Brown10--
G25W 08248" x 24" White10--
G25W 08368" x 36" White5--
G25W 100310" x 3" White20--
G25W 100410" x 4" White20--
G25W 100610" x 6" White20--
G25B 100610" x 6" Brown20--
G25W 100810" x 8" White20--
G25W 101010" x 10" White10--
G25B 101010" x 10" Brown10--
G25W 101210" x 12" White10--
G25W 101410" x 14" White10--
G25W 101610" x 16" White10--
G25B 101610" x 16" Brown10--
G25W 102010" x 20" White10--
G25W 102410" x 24" White10--
G25W 103010" x 30" White10--
G25W 103610" x 36" White5--
G25W 120312" x 3" White20--
G25W 120412" x 4" White20--
G25B 120412" x 4" Brown20--
G25W 120512" x 5" White20--
G25W 120612" x 6" White20--
G25B 120612" x 6" Brown20--
G25W 120812" x 8" White20--
G25B 120812" x 8" Brown20--
G25W 121012" x 10" White10--
G25B 121012" x 10" Brown10--
G25W 121212" x 12" White10--
G25W 121412" x 14" White10--
G25W 121612" x 16" White10--
G25W 121812" x 18" White10--
G25W 122012" x 20" White10--
G25W 122412" x 24" White10--
G25W 123012" x 30" White10--
G25W 140314" x 3" White20--
G25B 140314" x 3" Brown20--
G25W 140414" x 4" White20--
G25W 140614" x 6" White20--
G25B 140614" x 6" Brown20--
G25W 140814" x 8" White20--
G25B 140814" x 8" Brown20--
G25W 141014" x 10" White10--
G25W 141214" x 12" White10--
G25W 141414" x 14" White10--
G25B 141414" x 14" Brown10--
G25W 141614" x 16" White10--
G25W 141814" x 18" White10--
G25B 141814" x 18" Brown10--
G25W 142014" x 20" White10--
G25W 142414" x 24" White10--
G25W 142514" x 25" White10--
G25B 142514" x 25" Brown10--
G25W 143014" x 30" White10--
G25W 160416" x 4" White10--
G25B 160416" x 4" Brown10--
G25W 160516" x 5" White10--
G25W 160616" x 6" White10--
G25B 160616" x 6" Brown10--
G25W 160816" x 8" White10--
G25B 160816" x 8" Brown10--
G25W 161016" x 10" White10--
G25W 161216" x 12" White10--
G25W 161416" x 14" White10--
G25W 161616" x 16" White10--
G25B 161616" x 16" Brown10--
G25W 162016" x 20" White10--
G25B 162016" x 20" Brown10--
G25W 162416" x 24" White10--
G25B 162416" x 24" Brown10--
G25W 162516" x 25" White10--
G25W 163016" x 30" White10--
G25B 163016" x 30" Brown10--
G25W 163616" x 36" White5--
G25W 180418" x 4" White10--
G25W 180618" x 6" White10--
G25W 180818" x 8" White10--
G25B 180818" x 8" Brown10--
G25W 181018" x 10" White10--
G25B 181018" x 10" Brown10--
G25W 181218" x 12" White10--
G25B 181218" x 12" Brown10--
G25W 181418" x 14" White10--
G25W 181818" x 18" White10--
G25W 182018" x 20" White10--
G25W 182418" x 24" White10--
G25B 182418" x 24" Brown10--
G25W 182518" x 25" White10--
G25W 183018" x 30" White10--
G25B 183018" x 30" Brown10--
G25W 183618" x 36" White5--
G25W 200320" x 3" White10--
G25W 200420" x 4" White10--
G25W 200520" x 5" White10--
G25W 200620" x 6" White10--
G25B 200620" x 6" Brown10--
G25W 200820" x 8" White10--
G25B 200820" x 8" Brown10--
G25W 201020" x 10" White10--
G25B 201020" x 10" Brown10--
G25W 201220" x 12" White10--
G25B 201220" x 12" Brown10--
G25W 201420" x 14" White10--
G25B 201420" x 14" Brown10--
G25W 201620" x 16" White10--
G25B 201620" x 16" Brown10--
G25W 201820" x 18" White10--
G25W 202020" x 20" White10--
G25B 202020" x 20" Brown10--
G25W 202420" x 24" White10--
G25B 202420" x 24" Brown10--
G25W 202520" x 25" White10--
G25B 202520" x 25" Brown10--
G25W 203020" x 30" White10--
G25W 203620" x 36" White5--
G25W 222422" x 24" White10--
G25W 240324" x 3" White10--
G25W 240424" x 4" White10--
G25W 240524" x 5" White10--
G25B 240524" x 5" Brown10--
G25W 240624" x 6" White10--
G25W 240824" x 8" White10--
G25B 240824" x 8" Brown10--
G25W 241024" x 10" White10--
G25B 241024" x 10" Brown10--
G25W 241224" x 12" White10--
G25B 241224" x 12" Brown10--
G25W 241424" x 14" White10--
G25B 241424" x 14" Brown10--
G25W 241624" x 16" White10--
G25W 241824" x 18" White10--
G25B 241824" x 18" Brown10--
G25W 242024" x 20" White10--
G25B 242024" x 20" Brown10--
G25W 242424" x 24" White10--
G25W 242524" x 25" White10--
G25B 242524" x 25" Brown10--
G25W 243024" x 30" White10--
G25B 243024" x 30" Brown10--
G25W 243624" x 36" White5--
G25B 250625" X 6" Brown10--
G25W 251225" x 12" White10--
G25B 251225" x 12" Brown10--
G25W 251425" x 14" White10--
G25W 251625" x 16" White10--
G25W 251825" x 18" White10--
G25W 252025" x 20" White10--
G25W 252525" x 25" White5--
G25B 252525" x 25" Brown5--
G25W 281428" x 14" White10--
G25W 282428" x 24" White10--
G25W 300330" x 3" White10--
G25W 300430" x 4" White10--
G25W 300630" x 6" White10--
G25W 300830" x 8" White10--
G25W 301030" x 10" White10--
G25W 301230" x 12" White10--
G25W 301430" x 14" White10--
G25W 301630" x 16" White10--
G25B 301630" x 16" Brown10--
G25W 301830" x 18" White10--
G25B 301830" x 18" Brown10--
G25W 302030" x 20" White10--
G25W 302430" x 24" White10--
G25B 302430" x 24" Brown10--
G25W 302530" x 25" White5--
G25B 302530" x 25" Brown5--
G25W 303030" x 30" White5--
G25W 320632" x 6" White5--
G25W 360836" x 8" White5--
G25W 361036" x 10" White5--
G25W 361236" x 12" White5--
G25W 361436" x 14" White5--
A25W 06066" x 6" White20--
A25W 08088" x 8" White20--
A25W 100410" x 4" White20--
A25W 100810" x 8" White20--
A25W 101010" x 10" White10--
A25W 120612" x 6" White20--
A25W 140614" x 6" White20--
A25W 140814" x 8" White20--
A25W 141014" x 10" White10--
A25W 141414" x 14" White10--
A25W 160816" x 8" White10--
A25W 161016" x 10" White10--
A25W 161616" x 16" White10--
A25W 201620" x 16" White10--
A25W 241624" x 16" White10--
Unit SizeFace Velocity300400500600700
6x6Cfm587796116135
Ak .193Pt0.0210.0380.0580.0830.113
10x6Cfm94126157189220
Ak .315Pt0.0210.0370.0570.0810.11
12x6Cfm116154193231270
Ak .385Pt0.0210.0370.0570.0810.11
12x8Cfm154205257308360
Ak .514Pt0.0190.0320.050.0740.1
12x10Cfm193257321385449
Ak .642Pt0.0170.0310.0490.0720.092
12x12Cfm231308385462539
Ak .770Pt0.0160.0290.0460.0660.088
14x6Cfm137182228273319
Ak .456Pt0.020.0340.0540.0780.105
14x8Cfm182243304365425
Ak .608Pt0.0180.0320.050.0730.099
14x10Cfm228304380456532
Ak .760Pt0.0160.0290.0460.0680.089
14x12Cfm273365456547638
Ak .912Pt0.0150.0270.0430.0620.084
14x14Cfm319425532638744
Ak 1.063Pt0.0140.0250.0380.0550.076
16x8Cfm211281351421491
Ak .702Pt0.0170.0310.0490.0720.092
16x10Cfm263351439526614
Ak .877Pt0.0160.0280.0450.0650.087
16x16Cfm421561702842982
Ak 1.403Pt0.0130.0230.0360.0530.072
18x8Cfm231308385462539
Ak .770Pt0.0160.0290.0460.0680.089
18x12Cfm347462578693809
Ak 1.156Pt0.0140.0250.0380.0550.076
18x18Cfm52069386710401214
Ak 1.734Pt0.0130.0230.0350.0510.07
20x6Cfm189252315378441
Ak .629Pt0.0180.0320.050.0730.099
20x12Cfm378504629765881
Ak 1.259Pt0.0140.0240.0370.0540.075
20x14Cfm4415877348811028
Ak 1.469Pt0.0130.0230.0360.0520.071
20x20Cfm629839104912591469
Ak 2.098Pt0.0110.0190.0310.0450.06
24x6Cfm231308385462539
Ak .770Pt0.0170.030.0470.0670.09
24x10Cfm385514642770899
Ak 1.284Pt0.0130.0230.0360.0530.072
24x12Cfm4626167709251079
Ak 1.541Pt0.0130.0230.0360.0520.07
24x14Cfm53971989910791258
Ak 1.798Pt0.0120.0220.0340.0490.063
24x24Cfm9251233154118492157
Ak 3.082Pt0.0090.0160.0250.0370.05
30x6Cfm283378472566661
Ak .944Pt0.0150.0270.0430.0620.084
30x8Cfm378504629755881
Ak 1.259Pt0.0140.0240.0370.0540.075
30x10Cfm4726297879441102
Ak 1.574Pt0.0140.0230.0360.0520.07
30x12Cfm56675594411331322
Ak 1.888Pt0.0120.0210.0330.0480.062
30x14Cfm661881110213221542
Ak 2.203Pt0.0110.0190.0310.0440.059
30x18Cfm8501133141616991983
Ak 2.832Pt0.010.0170.030.0390.053
30x20Cfm9441259157418882203
Ak 3.147Pt0.0090.0160.0250.0360.05
30x24Cfm11331511188822662644
Ak 3.777Pt0.0080.0150.0230.0320.044
