Steel T-Bar (Lay-in)
FPD
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.
Steel construction- 2-tier diffusion, 360° pattern
- Fixed collar and no collar models

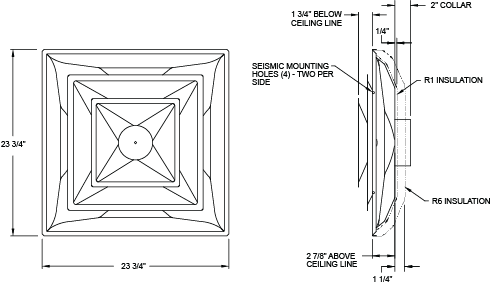

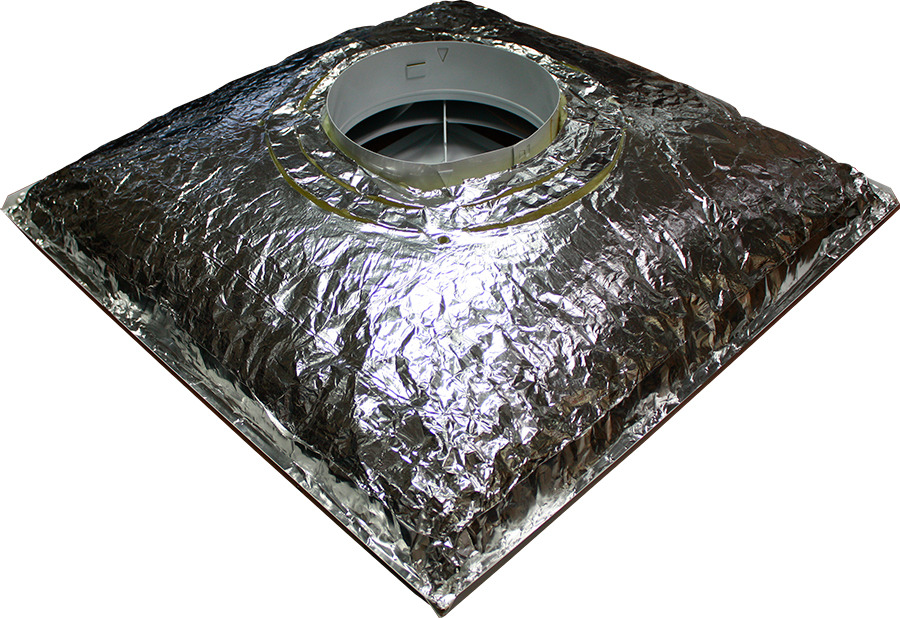

- R1 Insulation blanket
- White finish
- Made in the U.S.A.
- Packed 1 per carton, 36 per pallet
- Series FPD-38D FPD + installed Series 3800 damper
- FPD + installed Series 3800 damper
- Series FPD P6 FPD no-collar model + attached R6-rated fiberglass plenum
- FPD no-collar model + attached R6-rated fiberglass plenum

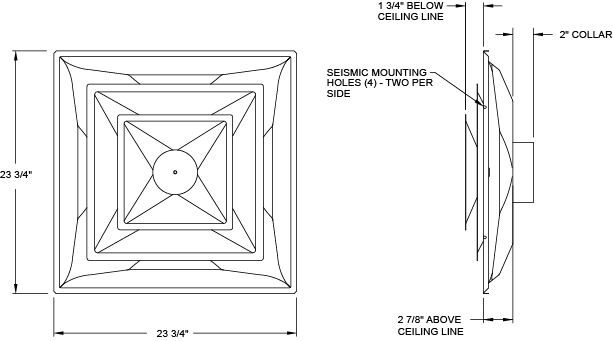

- Series FPD NI FPD with no insulation
- FPD with no insulation
- Series FPD NI 38D FPD with no insulation + installed Series 3800 damper
- FPD with no insulation + installed Series 3800 damper
| Part # | Description | Ctn Qty | List Price |
|---|---|---|---|
| FPD 06 | 6" collar, R1 insulation | 1 | -- |
| FPD 08 | 8" collar, R1 insulation | 1 | -- |
| FPD 10 | 10" collar, R1 insulation | 1 | -- |
| FPD 12 | 12" collar, R1 insulation | 1 | -- |
| FPD 14 | 14" collar, R1 insulation | 1 | -- |
| FPD A | No collar, R1 insulation | 1 | -- |
| FPD 06 38D | 6" collar, R1 insulation, 38D Collar Installed | 1 | -- |
| FPD 08 38D | 8" collar, R1 insulation, 38D Collar Installed | 1 | -- |
| FPD 10 38D | 10" collar, R1 insulation, 38D Collar Installed | 1 | -- |
| FPD 12 38D | 12" collar, R1 insulation, 38D Collar Installed | 1 | -- |
| FPD 14 38D | 14" collar, R1 insulation, 38D Collar Installed | 1 | -- |
| FPD 066 | 6" collar, R6 insulation | 1 | -- |
| FPD 086 | 8" collar, R6 insulation | 1 | -- |
| FPD 106 | 10" collar, R6 insulation | 1 | -- |
| FPD 126 | 12" collar, R6 insulation | 1 | -- |
| FPD 146 | 14" collar, R6 insulation | 1 | -- |
| FPD A6 | No collar, R6 insulation | 1 | -- |
| FPD 066 38D | 6" collar, R6 insulation, 38D Collar Installed | 1 | -- |
| FPD 086 38D | 8" collar, R6 insulation, 38D Collar Installed | 1 | -- |
| FPD 106 38D | 10" collar, R6 insulation, 38D Collar Installed | 1 | -- |
| FPD 126 38D | 12" collar, R6 insulation, 38D Collar Installed | 1 | -- |
| FPD 146 38D | 14" collar, R6 insulation, 38D Collar Installed | 1 | -- |
| FPD 06NI | 6" collar, No insulation | 1 | -- |
| FPD 08NI | 8" collar, No insulation | 1 | -- |
| FPD 10NI | 10" collar, No insulation | 1 | -- |
| FPD 12NI | 12" collar, No insulation | 1 | -- |
| FPD 14NI | 14" collar, No insulation | 1 | -- |
| FPD ANI | No Collar, No insulation | 1 | -- |
| FPDA P6 | No Collar, R6 Formed Plenum | 1 | -- |
| Collar Size | Neck Velocity | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1400 | 1600 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | |||||||||||
| An .20 | |||||||||||
| Ak .78" | Cfm | 80 | 100 | 120 | 135 | 155 | 175 | 195 | 235 | 275 | 315 |
| Ps | 0.008 | 0.012 | 0.017 | 0.021 | 0.028 | 0.035 | 0.043 | 0.063 | 0.086 | 0.112 | |
| Nc | <20 | <20 | <20 | <20 | <20 | 20 | 25 | 30 | 35 | 40 | |
| Throw | 2 | 3 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 | |
| 8 | |||||||||||
| An .35 | |||||||||||
| Ak .92" | Cfm | 140 | 175 | 210 | 245 | 280 | 315 | 350 | 420 | 490 | 560 |
| Ps | 0.010 | 0.015 | 0.022 | 0.029 | 0.038 | 0.049 | 0.060 | 0.086 | 0.117 | 0.150 | |
| Nc | <20 | <20 | <20 | <20 | 20 | 25 | 30 | 35 | 35 | 40 | |
| Throw | 3.5 | 4.5 | 5.5 | 6.5 | 7 | 8 | 9 | 10.5 | 12.5 | 14.5 | |
| 10 | |||||||||||
| An .54 | |||||||||||
| Ak 1.20" | Cfm | 220 | 270 | 325 | 380 | 435 | 490 | 545 | 655 | 765 | 870 |
| Ps | 0.014 | 0.021 | 0.030 | 0.041 | 0.054 | 0.068 | 0.084 | 0.122 | 0.167 | 0.212 | |
| Nc | <20 | <20 | <20 | 20 | 25 | 30 | 35 | 35 | 40 | 45 | |
| Throw | 5.5 | 7 | 8.5 | 10 | 11 | 12.5 | 14 | 17 | 19.5 | 22 | |
| 12 | |||||||||||
| An .78 | |||||||||||
| Ak 1.65" | Cfm | 315 | 390 | 470 | 550 | 630 | 705 | 785 | 940 | 1100 | 1255 |
| Ps | 0.015 | 0.023 | 0.033 | 0.045 | 0.060 | 0.072 | 0.094 | 0.132 | 0.180 | 0.230 | |
| Nc | <20 | <20 | 20 | 25 | 30 | 35 | 35 | 40 | 45 | 45 | |
| Throw | 6 | 7.5 | 9 | 10.5 | 12 | 13.5 | 15 | 18 | 21 | 24 | |
| 14 | |||||||||||
| An 1.07 | |||||||||||
| Ak 2.06" | Cfm | 430 | 535 | 640 | 750 | 855 | 960 | 1070 | 1285 | 1500 | 1700 |
| Ps | 0.023 | 0.036 | 0.051 | 0.071 | 0.093 | 0.115 | 0.140 | 0.205 | 0.277 | 0.350 | |
| Nc | <20 | <20 | 20 | 25 | 30 | 35 | 40 | 40 | 45 | 45 | |
| Throw | 6.5 | 8 | 9.5 | 11.5 | 13 | 14.5 | 16 | 19 | 22.5 | 25 |
