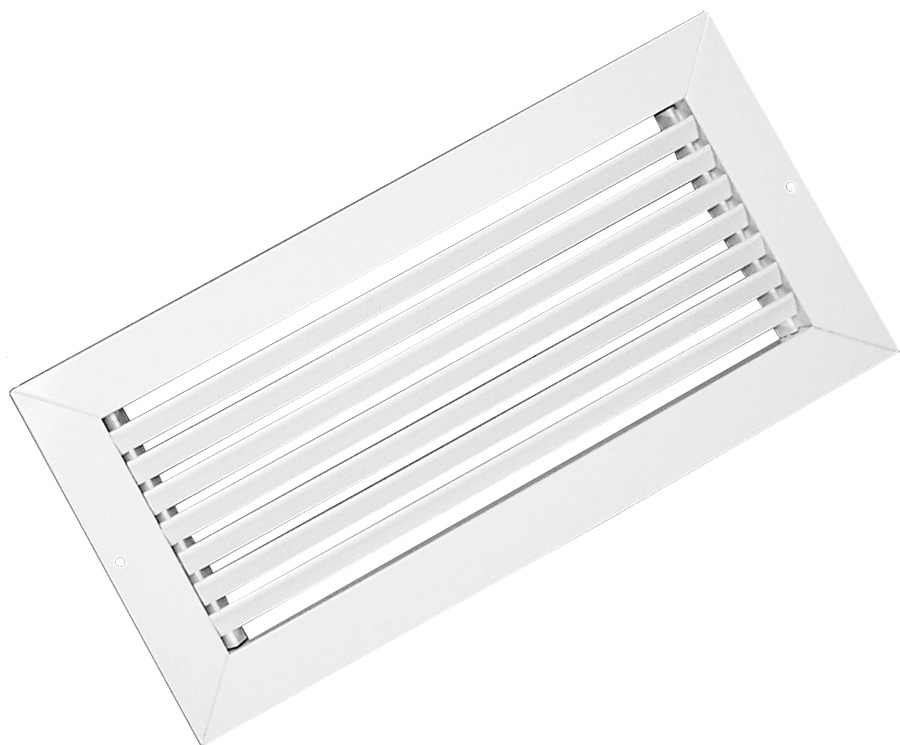

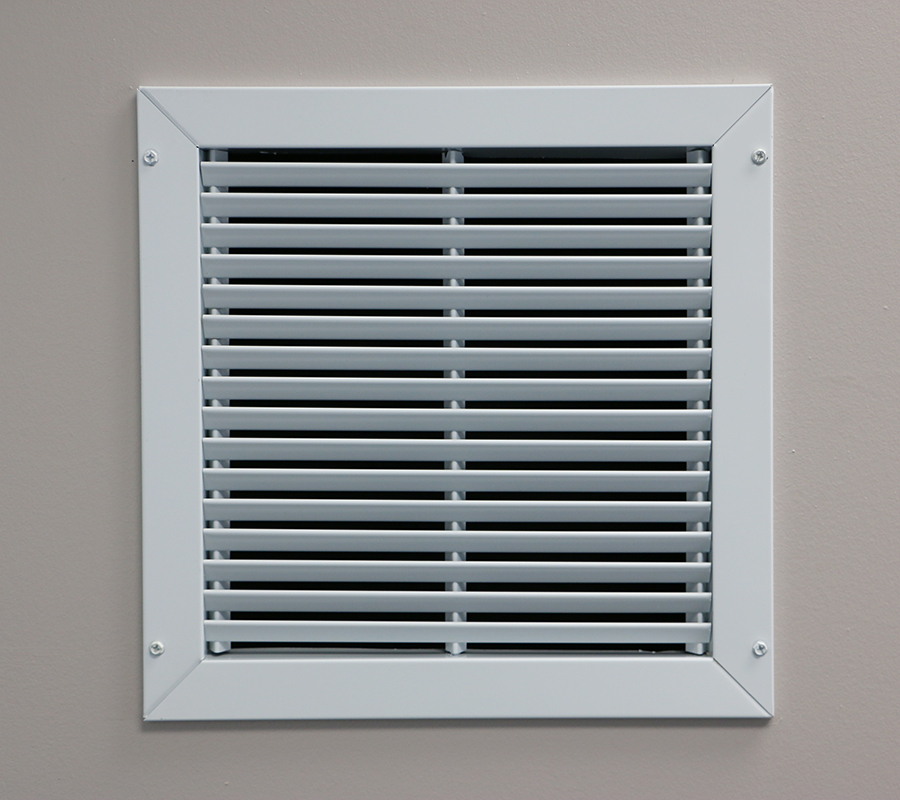

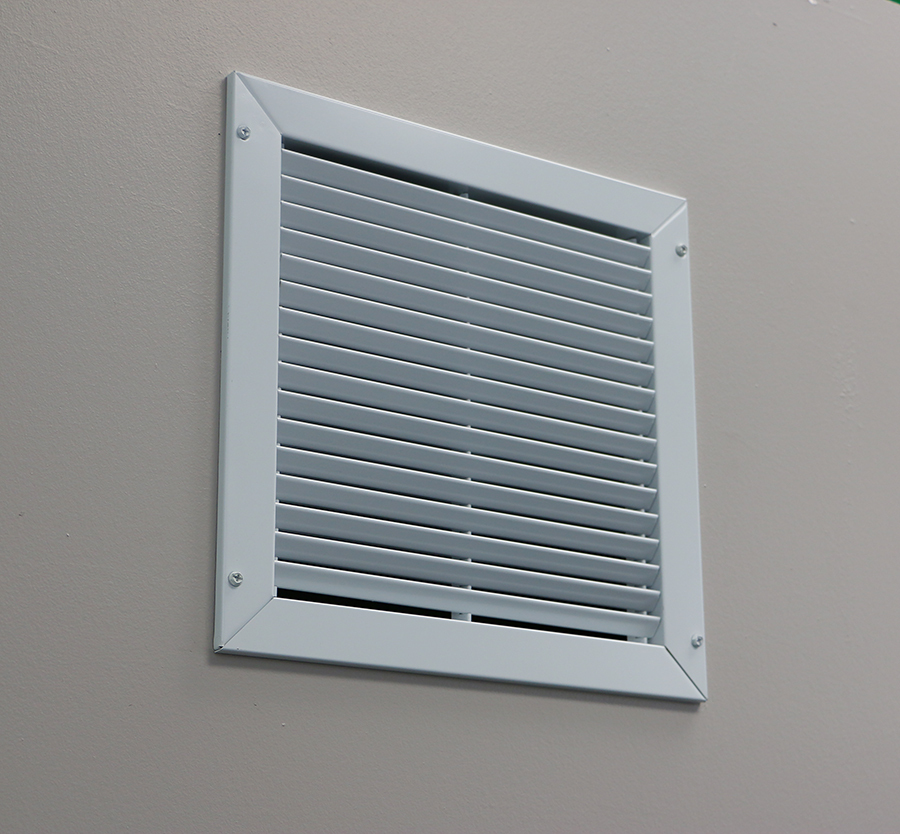

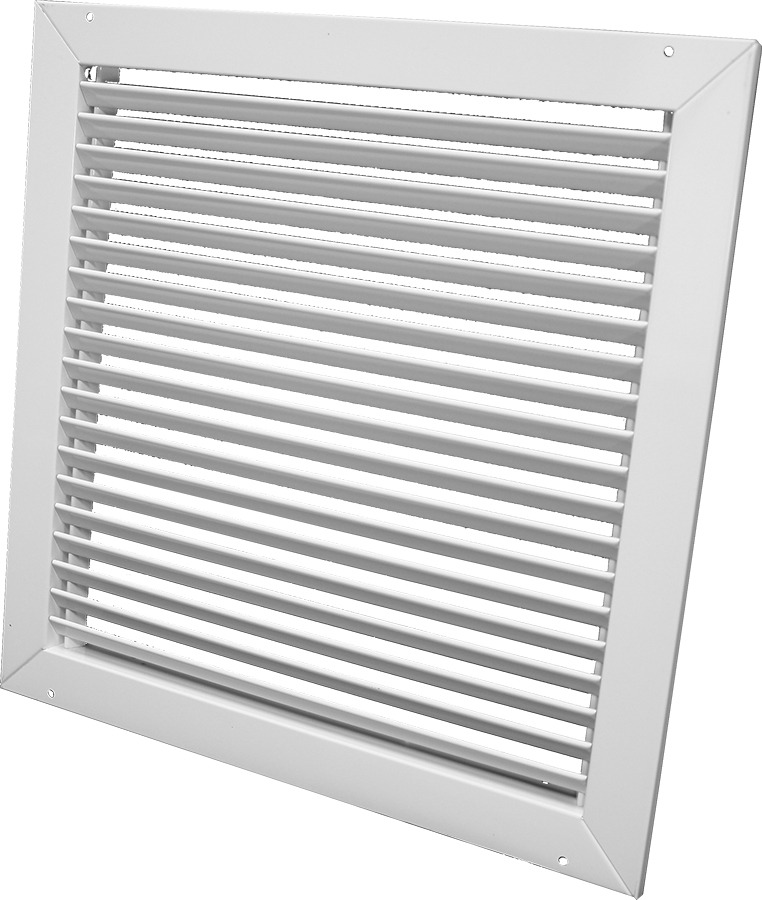

Steel Sidewall or Ceiling

FBG40

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

  • Designed for Supply or Return Air usage
  • Fixed, horizontal, roll-form face bars
  • Bars fixed at 40° deflection
  • Commercial grade steel construction
  • White finish
  • Made in the U.S.A.
Catalog
Series FBG40 Submittal
Part #DescriptionCtn QtyList Price Each
FBG40W 0606 6" x 6" White10--
FBG40W 0804 8" x 4" White10--
FBG40W 0808 8" x 8" White10--
FBG40W 1004 10" x 4" White10--
FBG40W 1006 10" x 6" White10--
FBG40W 1010 10" x 10" White10--
FBG40W 1206 12" x 6" White10--
FBG40W 1212 12" x 12" White10--
FBG40W 1224 12" x 24" White3--
FBG40W 1406 14" x 6" White10--
FBG40W 1408 14" x 8" White10--
FBG40W 1424 14" x 24" White3--
FBG40W 1430 14" x 30" White3--
FBG40W 1608 16" x 8" White3--
FBG40W 1616 16" x 16" White3--
FBG40W 1812 18" x 12" White3--
FBG40W 200420" x 4" White3--
FBG40W 2012 20" x 12" White3--
FBG40W 2014 20" x 14" White3--
FBG40W 2020 20" x 20" White3--
FBG40W 2030 20" x 30" White3--
FBG40W 2404 24" x 4" White3--
FBG40W 2406 24" x 6" White3--
FBG40W 2410 24" x 10" White3--
FBG40W 2412 24" x 12" White3--
FBG40W 2424 24" x 24" White3--
FBG40W 3012 30" x 12" White3--
FBG40W 3014 30" x 14" White3--
FBG40W 3018 30" x 18" White3--
FBG40W 3024 30" x 24" White1--
FBG40W 3030 30" x 30" White1--
FBG40W 3612 36" x 12" White1--
FBG40W 3618 36" x 18" White1--
FBG40W 3624 36" x 24" White1--
FBG40W 3636 36" x 36" White1--
FBG40W 3808 38" x 8" White1--
Unit SizeVelocity4006008001000
6 x 6Cfm26385164
Ak .06Pt0.0060.0260.0280.069
8 x 8Cfm5481108135
Ak .13Pt0.0070.0270.0290.070
10 x 6Cfm507599124
Ak .12Pt0.0070.0260.0280.069
10 x 10Cfm92139185231
Ak .23Pt0.0090.0270.0290.070
12 x 6Cfm6293124154
Ak .15Pt0.0120.0270.0470.076
12 x 8Cfm88132177221
Ak .22Pt0.0150.0260.0280.069
12 x 12Cfm141212282353
Ak .35Pt0.0100.0390.0410.110
14 x 6Cfm74111148185
Ak .18Pt0.0120.0420.0460.115
14 x 8Cfm105158211264
Ak .26Pt0.0110.0400.0430.110
14 x 14Cfm200301401501
Ak .50Pt0.0110.0400.0430.084
16 x 10Cfm160239319399
Ak .40Pt0.0160.0270.0290.070
16 x 16Cfm270405540675
Ak .67Pt0.0120.0420.0460.087
18 x 18Cfm340510679849
Ak .85Pt0.0080.0350.0340.053
20 x 10Cfm199299398498
Ak .50Pt0.0160.0270.0290.070
20 x 12Cfm245367490612
Ak .61Pt0.0170.0280.0300.071
20 x 14Cfm291436582727
Ak .73Pt0.0130.0410.0420.083
20 x 20Cfm4296438571072
Ak 1.07Pt0.0150.0340.0310.051
24 x 10Cfm244366488610
Ak .61Pt0.0170.0280.0300.071
24 x 12Cfm300450600750
Ak .75Pt0.0100.0390.0420.083
24 x 14Cfm356535713891
Ak .89Pt0.0190.0300.0320.073
24 x 24Cfm63895712751594
Ak 1.59Pt0.0080.0400.0430.047
30 x 10Cfm311466622777
Ak .78Pt0.0190.0300.0320.073
30 x 12Cfm383574765957
Ak .96Pt0.0270.0350.0330.096
30 x 14Cfm4556829091136
Ak 1.14Pt0.0280.0350.0340.075
30 x 20Cfm670100513401675
Ak 1.67Pt0.0300.0360.0380.079
