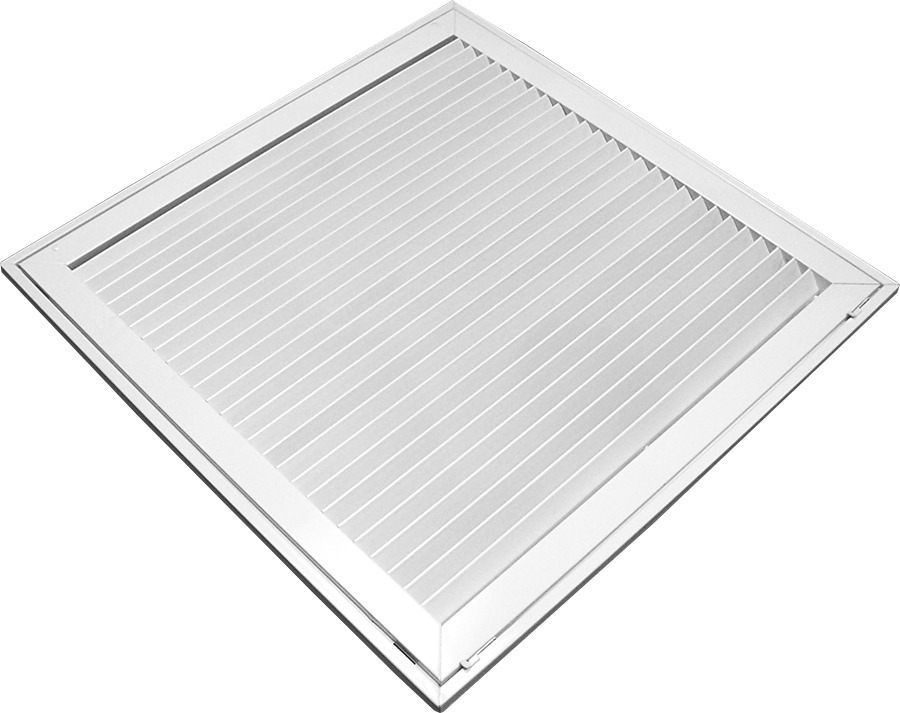

Steel T-Bar (Lay-in)
FBFGTB
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.
Flush, removeable face- Concealed hinges and latches
- Fixed bars at 60° deflection
- Sizing options for common lay-in applications
- R6 fiberglass plenum option (2’ x2’ only)
- Now available with Duct Board plenum option.
- Steel construction
- Uses standard (20 x 20”) filter (not included)
- White finish
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| FBFGW2222TB | 2' x 2' | 1 | -- |
| FBFGW2222TB106 | 2' x 2' with R6 Plenum | 1 | -- |
| Unit Size | Velocity | 400 | 600 | 800 | 1000 |
|---|---|---|---|---|---|
| 24 x 24 | |||||
| Ak 1.87" | Cfm | 750 | 1125 | 1500 | 1875 |
| Pt | 0.01 | 0.03 | 0.03 | 0.05 | |
| Cfm | Resistance | ||||
| Medium | 700 | 0.12 | |||
| High | 1400 | 0.25 |
Note:
Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
