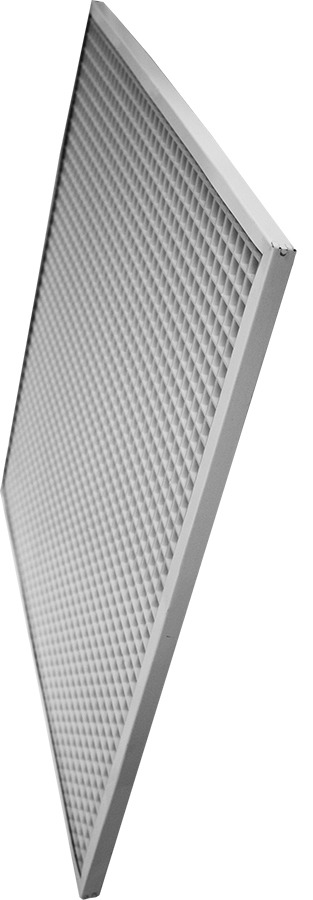

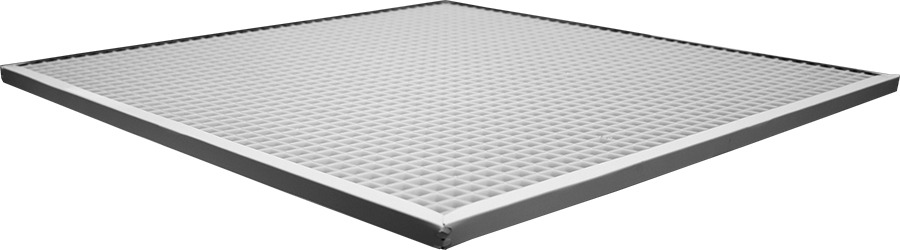

Plastic T-Bar (Lay-in)
ECPGTB
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

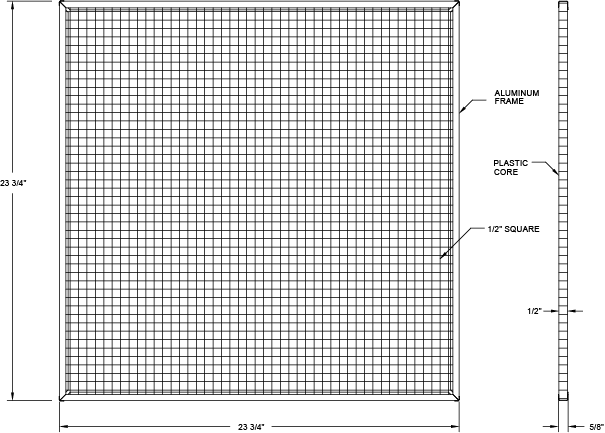

For lay-in return air usage- Construction: Polystyrene (plastic) core; Aluminum U-channel frame
- 1/2” x 1/2” x 1/2” core design
- R6 fiberglass plenum option
- White finish
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| ECPGW 2424TB106 | Plastic EC, TB Stand, R6 Plen | 6 | -- |
| Unit Size | Neck Velocity | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|
| 2 x 2 Ak 2.52 | Cfm | 756 | 1008 | 1260 | 1512 | 1764 | 2016 | 2268 | 2520 |
| Ps | 0.003 | 0.006 | 0.010 | 0.014 | 0.019 | 0.024 | 0.030 | 0.037 |
Note:
Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
