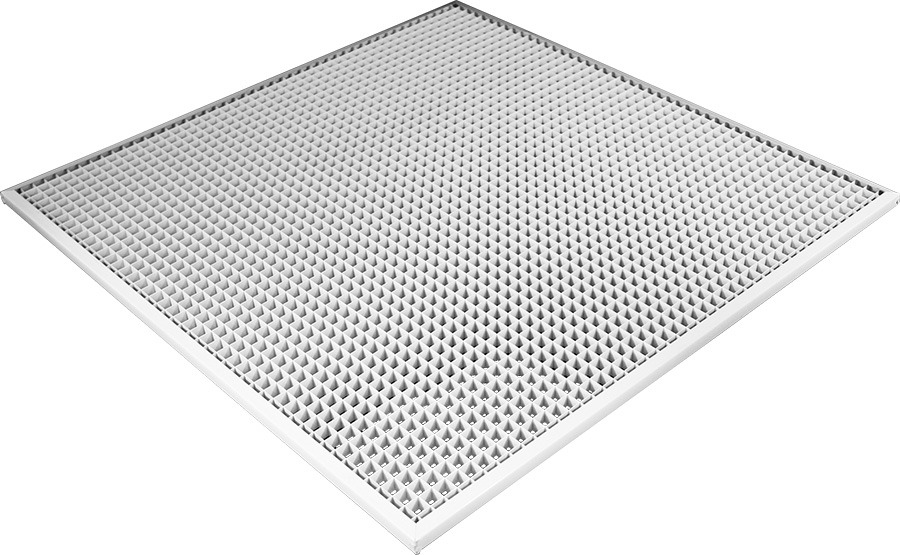

Aluminum T-Bar (Lay-in)
ECGTB/BL
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

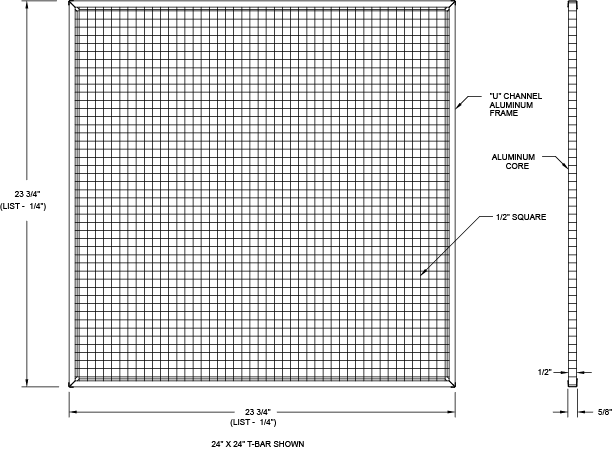

Aluminum construction- 1/2” x 1/2” x 1/2” core design with U-channel frame

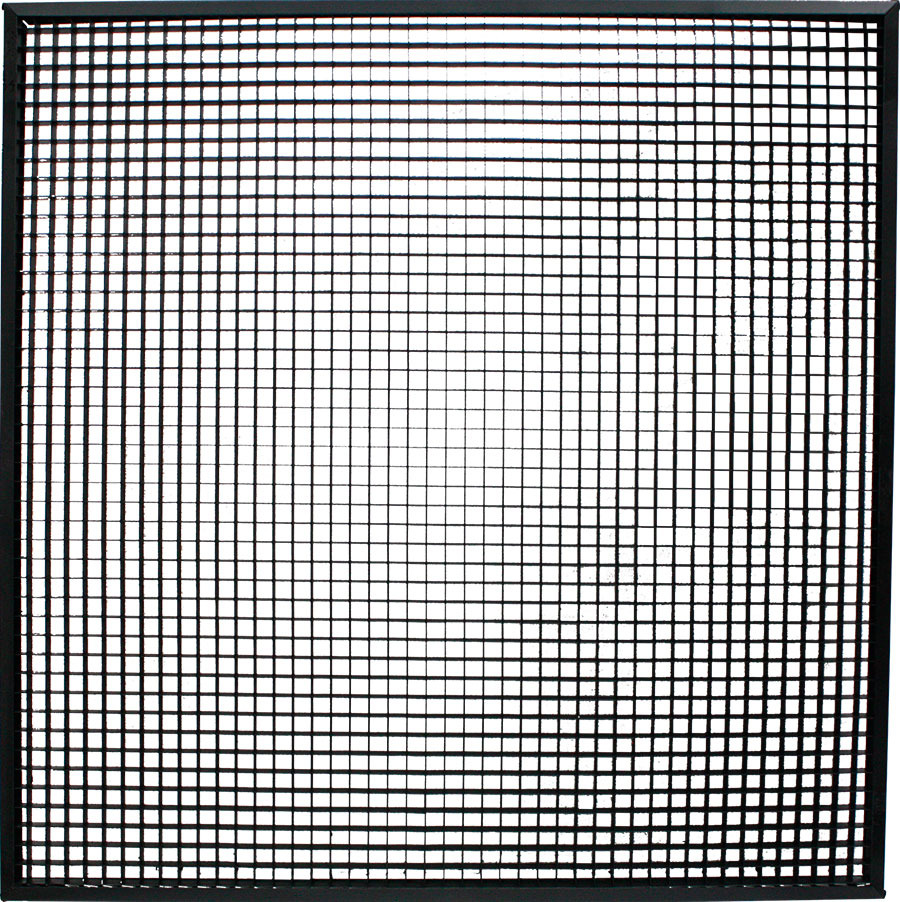

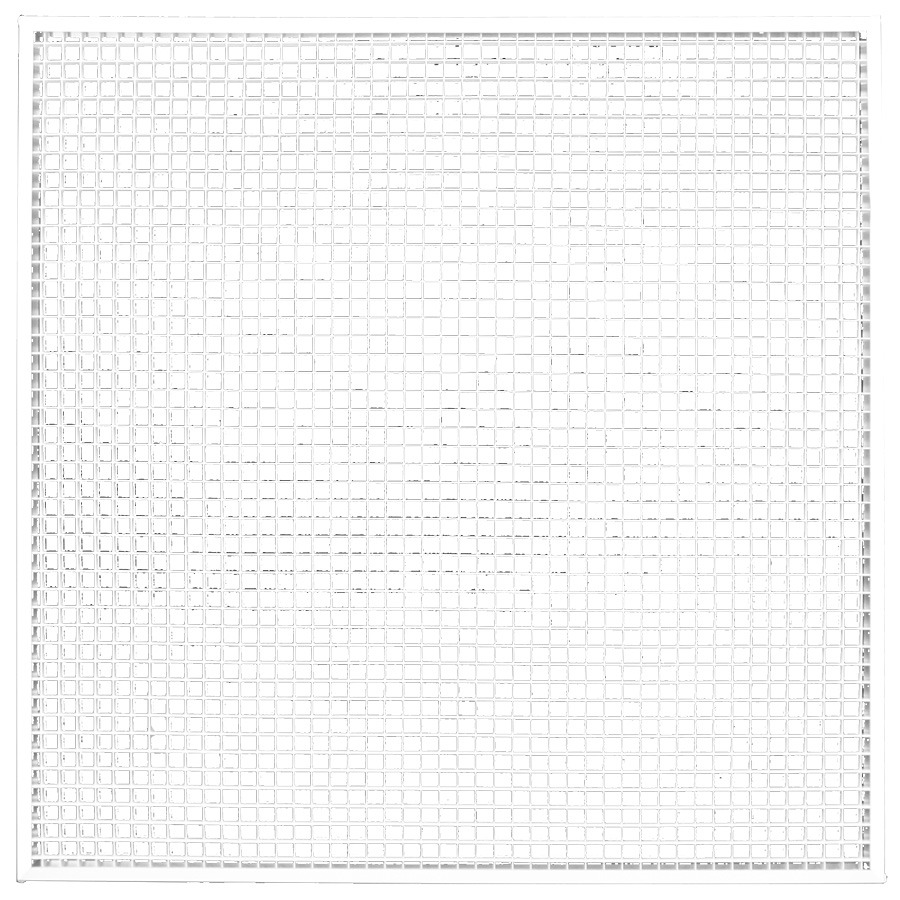

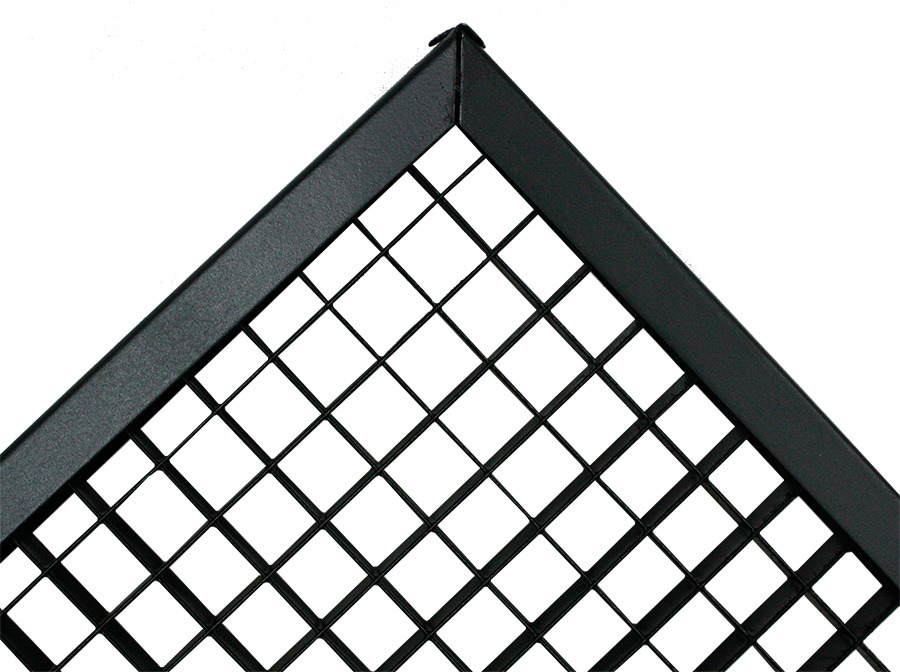

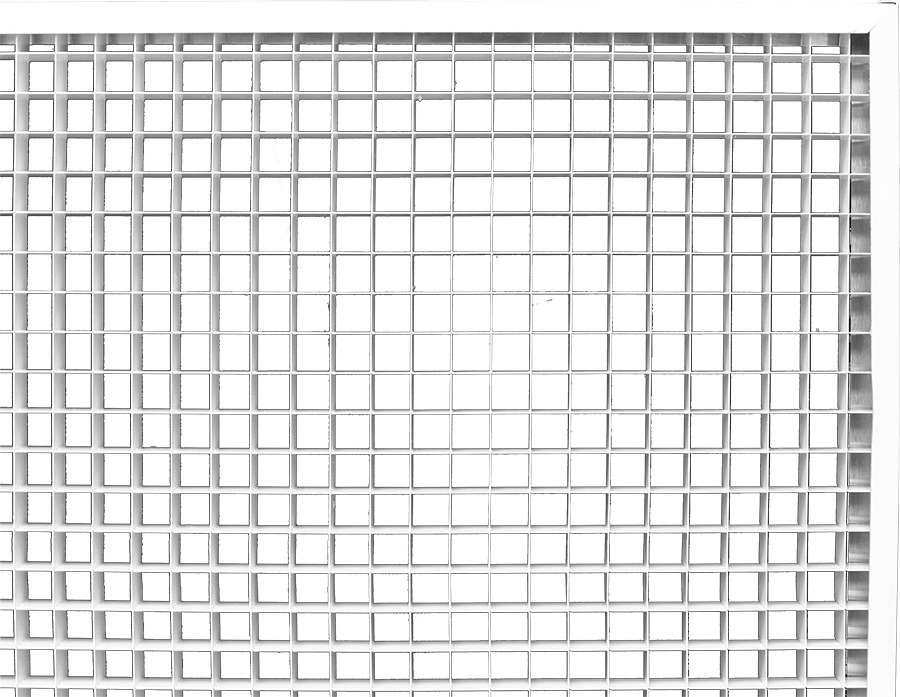

- White, Black, or Mill finish
- Sizing options: 12” x 12”, 12” x 24”, 24” x 24”, 24” x 48”

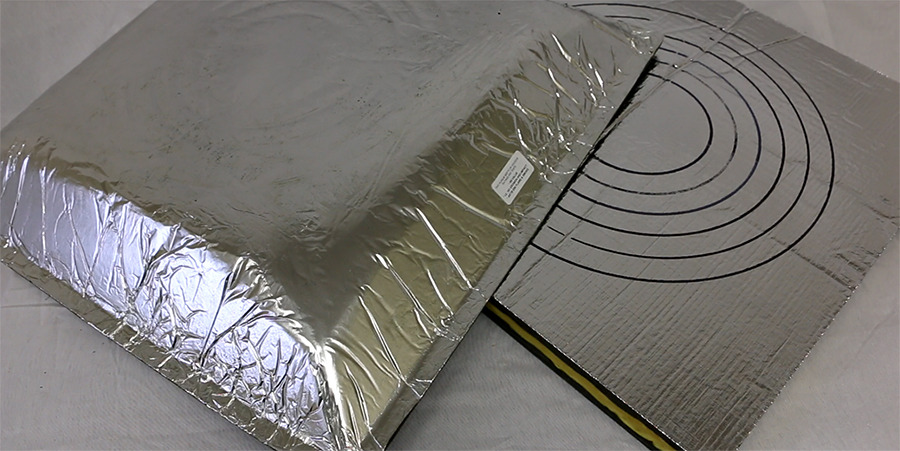

- Plenum Options: R6 fiberglass, duct board
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| ECGW 1212TB | 1' x 1' White | 3 | 56.54 |
| ECGW 1224TB | 1' x2' White | 3 | 72.60 |
| ECGW 2424TB | 2' x 2' White | 3 | 89.00 |
| ECGW 2424TBD | 2' x 2' White w/ DBP | 1 | 109.71 |
| ECGW 2448TB | 2' x 4' White | 3 | 163.60 |
| ECGW 2424TB106 | 2' x 2' White with R6 Plenum | 6 | 97.03 |
| Unit Size | Neck Velocity | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|
| 12 x 12 Ak 2.52 | Cfm | 189 | 252 | 315 | 378 | 441 | 504 | 567 | 630 |
| Ps | 0.003 | 0.006 | 0.010 | 0.014 | 0.019 | 0.024 | 0.030 | 0.037 | |
| 12 x 24 Ak 2.52 | Cfm | 378 | 504 | 630 | 756 | 882 | 1008 | 1134 | 1260 |
| Ps | 0.003 | 0.006 | 0.010 | 0.014 | 0.019 | 0.024 | 0.030 | 0.037 | |
| 24 x 24 Ak 2.52 | Cfm | 756 | 1008 | 1260 | 1512 | 1764 | 2016 | 2268 | 2520 |
| Ps | 0.003 | 0.006 | 0.010 | 0.014 | 0.019 | 0.024 | 0.030 | 0.037 | |
| 24 x 48 Ak 2.52 | Cfm | 1512 | 2016 | 2520 | 3024 | 3528 | 4032 | 4536 | 5040 |
| Ps | 0.003 | 0.006 | 0.010 | 0.014 | 0.019 | 0.024 | 0.030 | 0.037 |
Note:
Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
