Aluminum Sidewall or Ceiling
ECGE
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

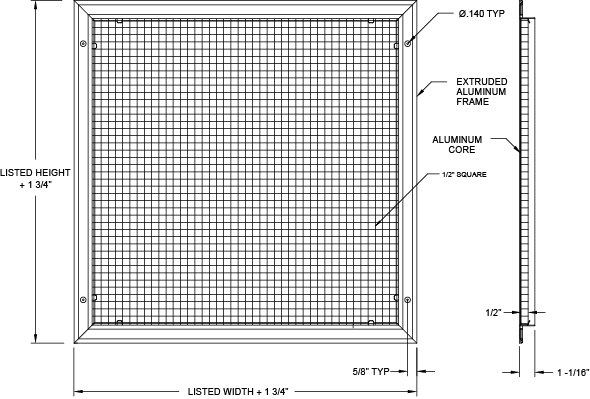

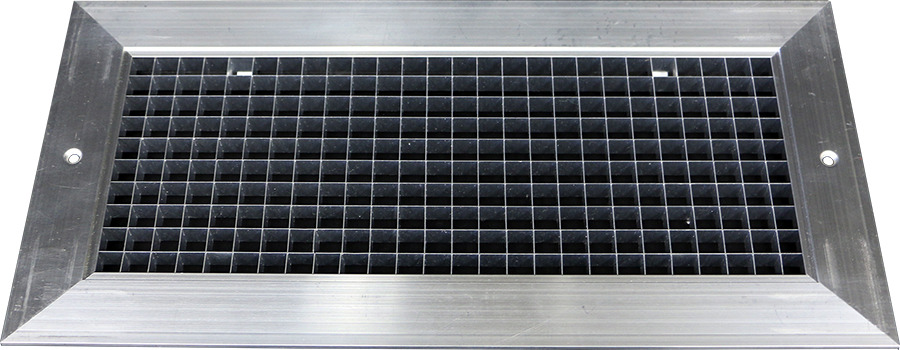

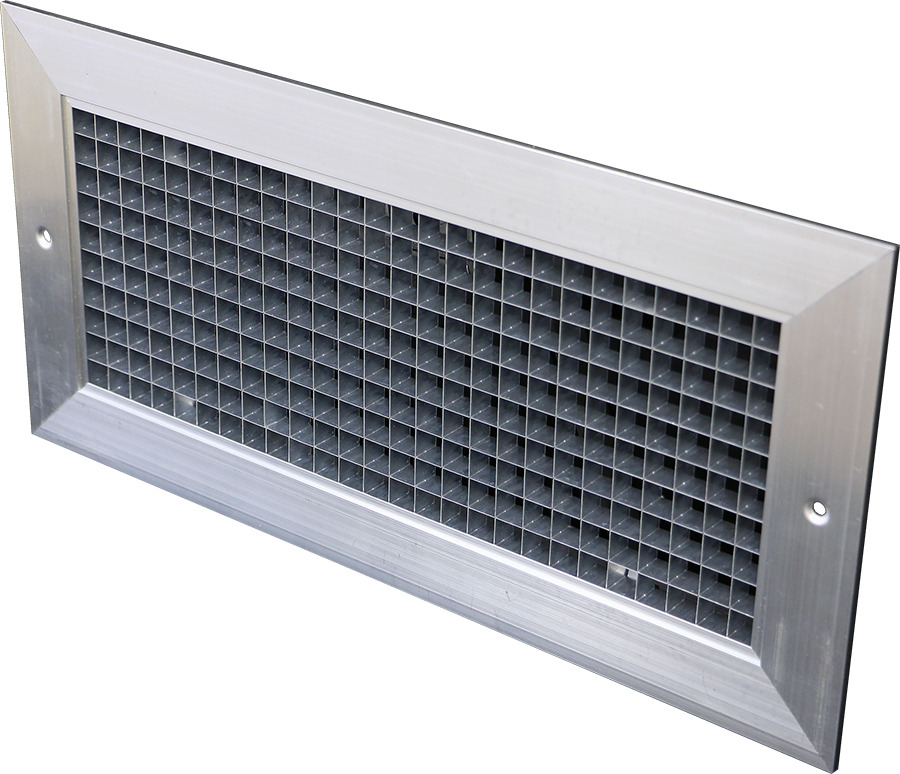

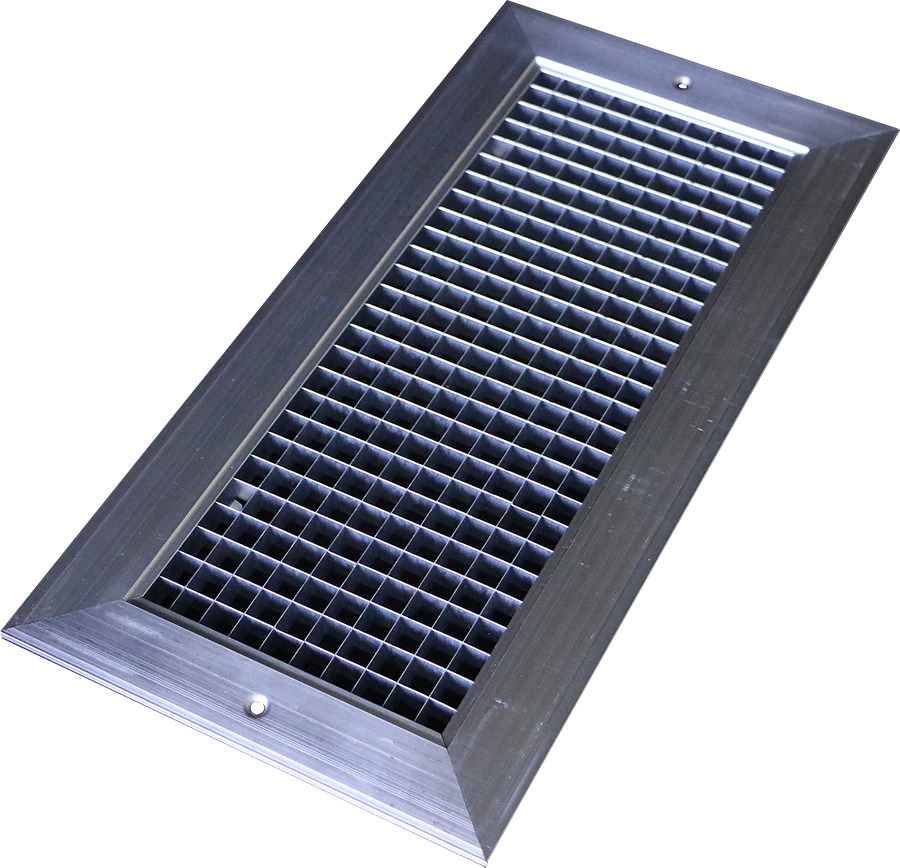

Aluminum construction- 1/2” x 1/2” x 1/2” core design with 2” x 2” extruded frame
- Available in standard White or optional Mill finish
- Vast sizing options
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| ECGEW 0606 | 6" x 6" White | 8 | -- |
| ECGEW 0808 | 8" x 8" White | 8 | -- |
| ECGEW 1010 | 10" x 10" White | 4 | -- |
| ECGEW 1206 | 12" x 6" White | 8 | -- |
| ECGEW 1212 | 12" x 12" White | 4 | -- |
| ECGEW 1414 | 14" x 14" White | 4 | -- |
| ECGEW 1420 | 14" x 20" White | 4 | -- |
| ECGEW 1424 | 14" x 24" White | 4 | -- |
| ECGEW 1616 | 16" x 16" White | 4 | -- |
| ECGEW 1818 | 18" x 18" White | 4 | -- |
| ECGEW 2020 | 20" x 20" White | 4 | -- |
| ECGEW 2222 | 22" x 22" White | 4 | -- |
| ECGEW 2410 | 24" x 10" White | 4 | -- |
| ECGEW 2424 | 24" x 24" White | 4 | -- |
| ECGEW 3014 | 30" x 14" White | 4 | -- |
| ECGEW 4824 | 48" x 24" White | 1 | -- |
| Unit Size | Overall Size | Face Velocity | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| 8" X 8" | 9 3/4" x 9 3/4" | Cfm | 66 | 87 | 108 | 130 | 152 | 174 | 195 | 217 |
| Ak 0.22 | Ps | 0.008 | 0.01 | 0.013 | 0.018 | 0.023 | 0.031 | 0.039 | 0.049 | |
| 10" X 10" | 11 3/4" x 11 3/4" | Cfm | 120 | 160 | 200 | 240 | 280 | 320 | 360 | 400 |
| Ak 0.40 | Ps | 0.008 | 0.01 | 0.014 | 0.018 | 0.024 | 0.031 | 0.04 | 0.05 | |
| 12" X 12" | 13 3/4" x 13 3/4" | Cfm | 186 | 249 | 311 | 373 | 435 | 497 | 559 | 622 |
| Ak 0.62 | Ps | 0.01 | 0.011 | 0.014 | 0.018 | 0.025 | 0.032 | 0.041 | 0.051 | |
| 14" X 14" | 15 3/4" x 15 3/4" | Cfm | 258 | 345 | 431 | 517 | 603 | 689 | 775 | 862 |
| Ak 0.86 | Ps | 0.01 | 0.011 | 0.014 | 0.019 | 0.025 | 0.032 | 0.041 | 0.052 | |
| 16" X 16" | 17 3/4" x 17 3/4" | Cfm | 330 | 440 | 550 | 660 | 770 | 880 | 990 | 1100 |
| Ak 1.10 | Ps | 0.01 | 0.012 | 0.015 | 0.019 | 0.025 | 0.033 | 0.042 | 0.052 | |
| 18" X 18" | 19 3/4" x 19 3/4" | Cfm | 453 | 604 | 756 | 907 | 1058 | 1209 | 1360 | 1511 |
| Ak 1.51 | Ps | 0.011 | 0.013 | 0.015 | 0.019 | 0.026 | 0.033 | 0.042 | 0.054 | |
| 20" X 20" | 21 3/4" x 21 3/4" | Cfm | 564 | 751 | 939 | 1127 | 1315 | 1502 | 1690 | 1878 |
| Ak 1.88 | Ps | 0.011 | 0.013 | 0.015 | 0.019 | 0.026 | 0.034 | 0.043 | 0.055 | |
| 24" X 24" | 25 3/4" x 25 3/4" | Cfm | 813 | 1083 | 1354 | 1625 | 1895 | 2166 | 2437 | 2708 |
| Ak 2.71 | Ps | 0.012 | 0.014 | 0.016 | 0.02 | 0.027 | 0.034 | 0.043 | 0.056 | |
| 30" X 30" | 31 3/4" x 31 3/4" | Cfm | 1248 | 1665 | 2081 | 2497 | 2913 | 3330 | 3746 | 4162 |
| Ak 4.16 | Ps | 0.012 | 0.014 | 0.016 | 0.02 | 0.027 | 0.035 | 0.044 | 0.057 | |
| 36" X 36" | 37 3/4" x 37 3/4" | Cfm | 1743 | 2325 | 2906 | 3487 | 4068 | 4650 | 5231 | 5812 |
| Ak 5.81 | Ps | 0.013 | 0.015 | 0.017 | 0.021 | 0.028 | 0.036 | 0.045 | 0.058 | |
| 48" X 48" | 49 3/4" x 49 3/4" | Cfm | 2814 | 3751 | 4689 | 5626 | 6564 | 7502 | 8439 | 9377 |
| Ak 9.38 | Ps | 0.014 | 0.016 | 0.019 | 0.023 | 0.031 | 0.039 | 0.049 | 0.061 |
