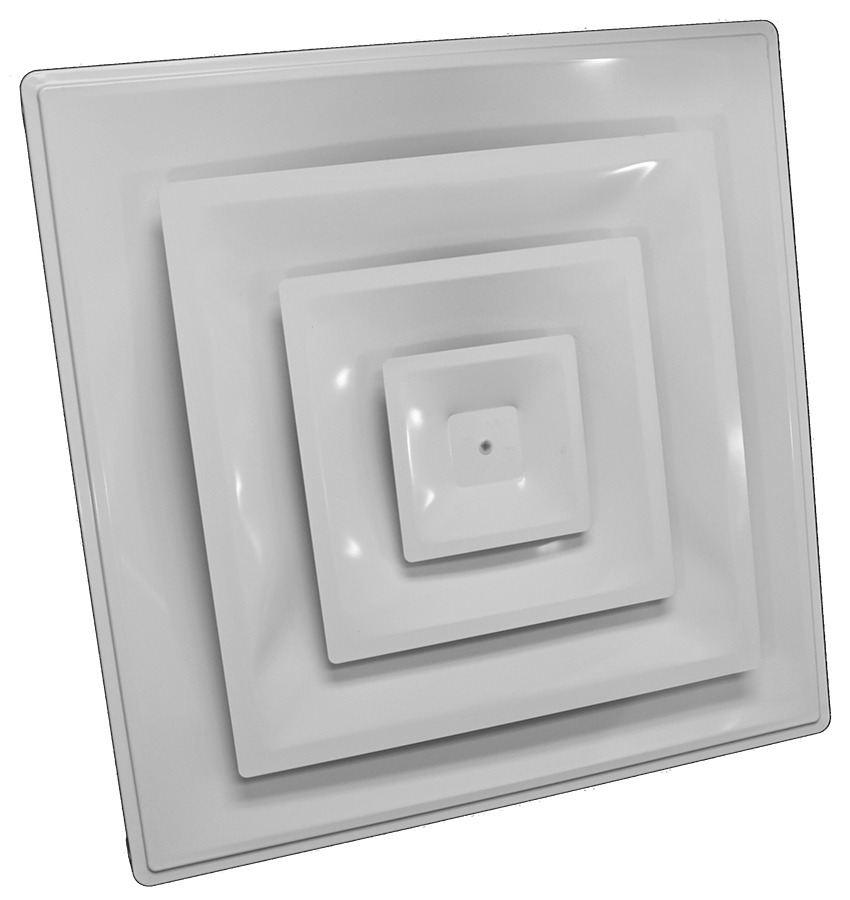

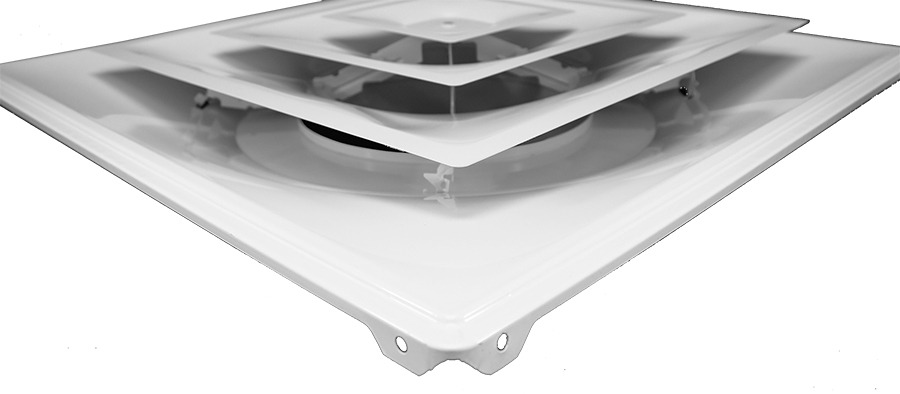

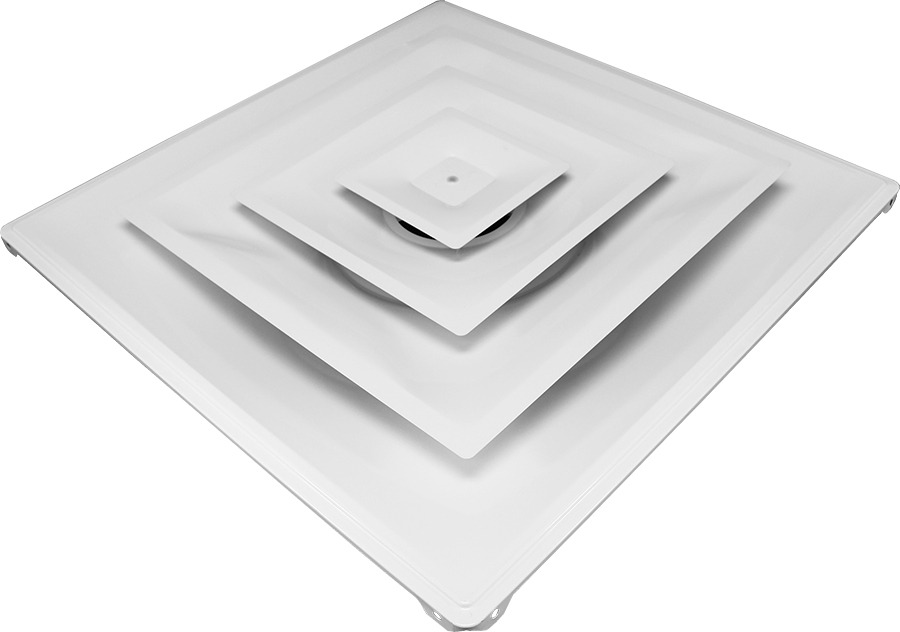

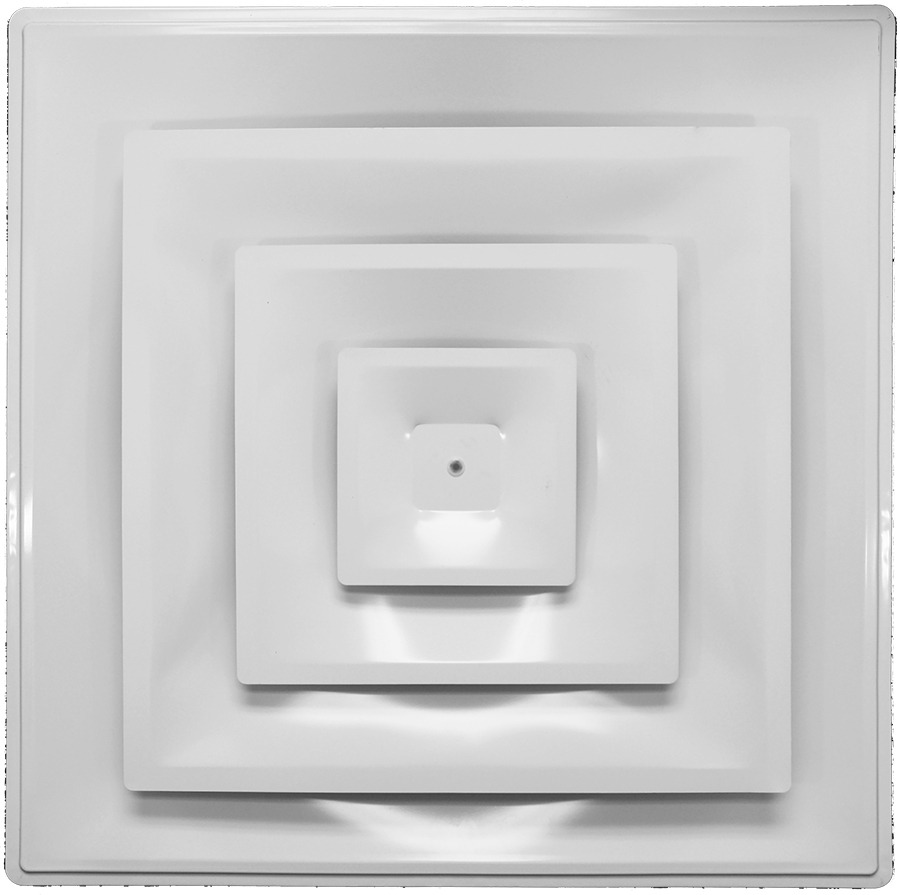

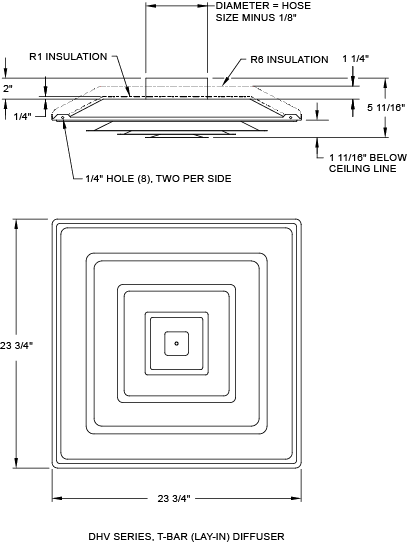

Steel T-Bar (Lay-in)

DHV

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

  • A design alternative to our standard Series HVS diffuser
  • Steel construction
  • 3-tier diffusion, 360° pattern
  • Fixed collar and no collar models
  • R1 insulation blanket
  • White finish
  • Made in the U.S.A.
  • Packed 1 per carton, 60 per pallet
  • Series DHV I6 DHV + R6 insulation blanket
  • DHV + R6 insulation blanket
  • Series DHV ID DHV + installed Series 3800 damper
  • DHV + installed Series 3800 damper

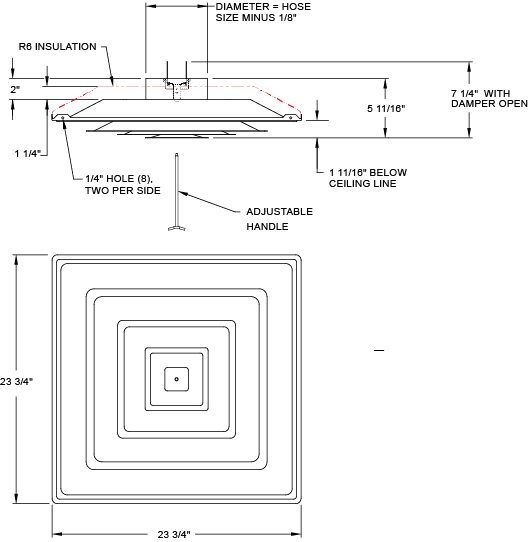

  • Series DHV I6D DHV + R6 insulation blanket and Series 3800 damper
  • DHV + R6 insulation blanket and Series 3800 damper
Catalog
Series DHV SubmittalSeries DHV I6 SubmittalSeries DHV ID SubmittalSeries DHV I6D Submittal
Part #DescriptionCtn QtyList Price Each

DHVI 06Fixed 6" Collar,R11--
DHVI 08Fixed 8" Collar,R11--
DHVI 10Fixed 10" Collar,R11--
DHVI 12Fixed 12" Collar,R11--
DHVI 14Fixed 14" Collar,R11--
DHVI ANo Collar, R11--

DHVI 06-38DFixed, 6" Collar,R1,38 Damper1--
DHVI 08-38DFixed, 8" Collar,R1, 38 Damper1--
DHVI 10-38DFixed, 10" Collar,R1, 38 Damper1--
DHVI 12-38DFixed, 12" Collar,R1, 38 Damper1--
DHVI 14-38DFixed, 14" Collar,R1, 38 Damper1--

DHVI6 06Fixed, 6" Collar,R6 1--
DHVI6 08Fixed, 8" Collar,R61--
DHVI6 10Fixed, 10" Collar,R61--
DHVI6 12Fixed, 12" Collar,R61--
DHVI6 14Fixed, 14" Collar,R61--
DHVI6 ANo Collar, R61--

DHVI6 06-38DFixed, 6" Collar,R6 38 Damper1--
DHVI6 08-38DFixed, 8" Collar,R6, 38 Damper1--
DHVI6 10-38DFixed, 10" Collar,R6, 38 Damper1--
DHVI6 12-38DFixed, 12" Collar,R6, 38 Damper1--
DHVI6 14-38DFixed, 14" Collar,R6, 38 Damper1--

Collar SizeNeck Velocity4005006007008009001000120014001600
6”
An .20
Ak .78"Cfm80100120135155175195240280320
 Ps0.010.020.020.030.040.050.060.090.120.15
 Nc<20<20<20<20202025303540
 Throw344566781011
An .27
Ak .81"     220240270320380420
 Ps0.010.020.030.030.050.060.070.100.140.18
 Nc<20<20<20<20202025303540
 Throw466781011121417
8”
An .35
Ak .92"Cfm140175210250280320350420490560
 Ps0.010.020.030.040.050.070.080.120.160.21
 Nc<20<20<2020202530353540
 Throw5689101112141720
An .44
Ak 1.20"        530610700
 Ps0.020.020.040.050.060.080.100.140.200.25
 Nc<20<20<2020202530354045
 Throw68911131417202326
10”
An .54
Ak 1.20"Cfm220270330380440490550660770870
 Ps0.020.030.040.060.070.090.120.170.230.29
 Nc<20<202020253035354045
 Throw8101214151719232730
12”
An .78
Ak 1.65"Cfm32039047055063071079094011001260
 Ps0.020.030.050.060.080.100.130.180.250.32
 Nc<20202025303535404545
 Throw8101214171921252933
14”
An 1.07
Ak 2.06"Cfm4305406407508609601075127515001700
 Ps0.030.050.070.100.130.160.190.280.380.48
 Nc<20202025303540404545
 Throw9111316182022263134

Note:

Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
