Aluminum Sidewall or Ceiling
AVM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

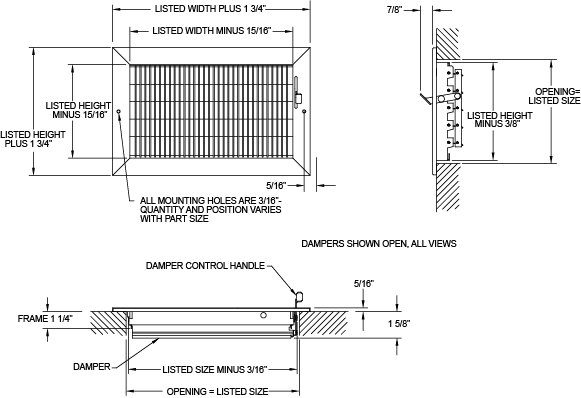

Adjustable, vertical, roll-form face bars- 3/4" bar spacing for easy adjustment
- Single deflection
- Multi-shutter damper
- Aluminum construction
- White finish
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| AVMW 0606 | 6" x 6" White | 24 | -- |
| AVMW 0804 | 8" x 4" White | 24 | -- |
| AVMW 0806 | 8" x 6" White | 24 | -- |
| AVMW 0808 | 8" x 8" White | 16 | -- |
| AVMW 1004 | 10" x 4" White | 24 | -- |
| AVMW 1006 | 10" x 6" White | 24 | -- |
| AVMW 1008 | 10" x 8" White | 16 | -- |
| AVMW 1010 | 10" x 10" White | 16 | -- |
| AVMW 1204 | 12" x 4" White | 24 | -- |
| AVMW 1206 | 12" x 6" White | 24 | -- |
| AVMW 1208 | 12" x 8" White | 16 | -- |
| AVMW 1212 | 12" x 12" White | 1 | -- |
| AVMW 1404 | 14" x 4" White | 24 | -- |
| AVMW 1406 | 14" x 6" White | 24 | -- |
| AVMW 1408 | 14" x 8" White | 16 | -- |
| AVMW 1414 | 14" x 14" White | 1 | -- |
| AVMW 1606 | 16" x 6" White | 8 | -- |
| AVMW 1608 | 16" x 8" White | 8 | -- |
| AVMW 2006 | 20" x 6" White | 8 | -- |
| AVMW 2008 | 20" x 8" White | 8 | -- |
| AVMW 2412 | 24" x 12" White | 1 | -- |
| Unit Size (in.) | Overall Size (in.) | Face Velocity | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Pressure Loss | 0.006 | 0.010 | 0.016 | 0.022 | 0.031 | 0.040 | 0.050 | 0.062 | ||
| 6 x 6 | ||||||||||
| Ak .139" | 7-3/8 x 7-3/8 | Cfm | 42 | 56 | 69 | 83 | 97 | 111 | 125 | 139 |
| Throw | 5 | 6 | 7 | 9 | 10 | 12 | 13 | 15 | ||
| 8 x 4 | ||||||||||
| Ak .118" | 9-3/8 x 5-3/8 | Cfm | 35 | 47 | 59 | 71 | 83 | 94 | 106 | 118 |
| Throw | 4 | 5 | 7 | 8 | 9 | 11 | 12 | 13 | ||
| 8 x 6 | ||||||||||
| Ak .188" | 9-3/8 x 7-3/8 | Cfm | 56 | 75 | 94 | 113 | 131 | 150 | 169 | 188 |
| Throw | 5 | 7 | 8 | 10 | 12 | 14 | 15 | 17 | ||
| 8 x 8 | ||||||||||
| Ak .257" | 9-3/8 x 9-3/8 | Cfm | 77 | 103 | 128 | 154 | 180 | 206 | 231 | 257 |
| Throw | 6 | 7 | 9 | 11 | 13 | 15 | 17 | 19 | ||
| 10 x 4 | ||||||||||
| Ak .146" | 11-3/8 x 5-3/8 | Cfm | 44 | 58 | 73 | 88 | 102 | 117 | 131 | 146 |
| Throw | 5 | 6 | 8 | 9 | 11 | 12 | 13 | 14 | ||
| 10 x 6 | ||||||||||
| Ak .236" | 11-3/8 x 7-3/8 | Cfm | 71 | 94 | 118 | 142 | 165 | 189 | 213 | 236 |
| Throw | 6 | 8 | 9 | 11 | 13 | 15 | 17 | 19 | ||
| 10 x 8 | ||||||||||
| Ak .326" | 11-3/8 x 9-3/8 | Cfm | 98 | 131 | 163 | 196 | 228 | 261 | 294 | 326 |
| Throw | 7 | 8 | 10 | 12 | 14 | 16 | 17 | 21 | ||
| 10 x 10 | ||||||||||
| Ak .417" | 11-3/8 x 11-3/8 | Cfm | 125 | 167 | 208 | 250 | 292 | 333 | 375 | 417 |
| Throw | 7 | 9 | 12 | 14 | 16 | 18 | 20 | 23 | ||
| 12 x 4 | ||||||||||
| Ak .181" | 12-3/8 x 5-3/8 | Cfm | 54 | 72 | 90 | 108 | 126 | 144 | 163 | 181 |
| Throw | 5 | 7 | 8 | 10 | 12 | 14 | 15 | 17 | ||
| 12 x 6 | ||||||||||
| Ak .285" | 13-3/8 x 7-3/8 | Cfm | 85 | 114 | 142 | 171 | 199 | 228 | 256 | 285 |
| Throw | 7 | 8 | 10 | 12 | 15 | 17 | 19 | 21 | ||
| 12 x 8 | ||||||||||
| Ak .389" | 13-3/8 x 9-3/8 | Cfm | 117 | 156 | 194 | 233 | 272 | 311 | 350 | 389 |
| Throw | 7 | 9 | 11 | 13 | 18 | 17 | 19 | 22 | ||
| 12 x 12 | ||||||||||
| Ak .611" | 13-3/8 x | |||||||||
| 13-3/8" | Cfm | 183 | 244 | 306 | 367 | 428 | 489 | 550 | 611 | |
| Throw | 9 | 11 | 14 | 17 | 20 | 22 | 25 | 29 | ||
| 14 x 4 | ||||||||||
| Ak .208" | 15-3/8 x 5-3/8 | Cfm | 63 | 83 | 104 | 125 | 146 | 167 | 188 | 208 |
| Throw | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 18 | ||
| 14 x 6 | ||||||||||
| Ak .313" | 15-3/8 x 7-3/8 | Cfm | 94 | 125 | 156 | 188 | 219 | 250 | 281 | 313 |
| Throw | 7 | 8 | 11 | 13 | 16 | 18 | 20 | 23 | ||
| 14 x 8 | ||||||||||
| Ak .458" | 15-3/8 x 9-3/8 | Cfm | 138 | 183 | 229 | 275 | 321 | 367 | 413 | 458 |
| Throw | 8 | 9 | 12 | 14 | 17 | 19 | 21 | 24 | ||
| 14 x 14 | ||||||||||
| Ak .840" | 15-3/8 x | |||||||||
| 15-3/8" | Cfm | 252 | 336 | 420 | 504 | 588 | 672 | 756 | 840 | |
| Throw | 9 | 15 | 19 | 23 | 27 | 31 | 34 | 38 | ||
| See "Catalog Page pdf for important NC data. |
Note:
Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
