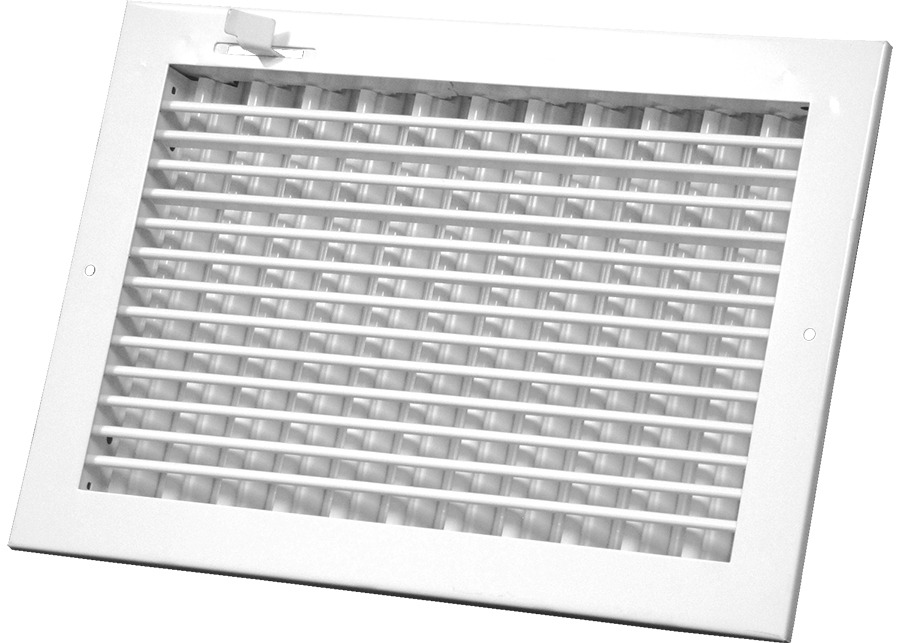

Aluminum Sidewall or Ceiling
AHM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.
Adjustable, horizontal, roll-form face bars- 3/4" bar spacing for easy adjustment
- Single deflection
- Multi-shutter damper
- Aluminum construction
- White finish
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| AHMW 0804 | 8" x 4" White | 24 | -- |
| AHMW 1004 | 10" x 4" White | 24 | -- |
| AHMW 1006 | 10" x 6" White | 24 | -- |
| AHMW 1204 | 12" x 4" White | 24 | -- |
| AHMW 1206 | 12" x 6" White | 24 | -- |
| AHMW 1406 | 14" x 6" White | 24 | -- |
| Unit Size (in.) | Overall Size (in.) | Face Velocity | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Pressure Loss | 0.006 | 0.010 | 0.016 | 0.022 | 0.031 | 0.040 | 0.050 | 0.062 | ||
| 8 x 4 | ||||||||||
| Ak .118" | 9-3/8 x 5-3/8 | Cfm | 38 | 50 | 63 | 75 | 88 | 100 | 113 | 125 |
| Throw | 4 | 5 | 7 | 8 | 9 | 11 | 12 | 13 | ||
| 8 x 6 | ||||||||||
| Ak .188" | 9-3/8 x 7-3/8 | Cfm | 58 | 78 | 97 | 117 | 136 | 156 | 175 | 194 |
| Throw | 5 | 7 | 8 | 10 | 12 | 14 | 15 | 17 | ||
| 10 x 4 | ||||||||||
| Ak .146" | 11-3/8 x 5-3/8 | Cfm | 48 | 64 | 80 | 96 | 112 | 128 | 144 | 160 |
| Throw | 5 | 6 | 8 | 9 | 11 | 12 | 13 | 14 | ||
| 10 x 6 | ||||||||||
| Ak .236" | 11-3/8 x 7-3/8 | Cfm | 73 | 97 | 122 | 146 | 170 | 194 | 219 | 243 |
| Throw | 6 | 8 | 9 | 11 | 13 | 15 | 17 | 19 | ||
| 10 x 8 | ||||||||||
| Ak .326" | 11-3/8 x 9-3/8 | Cfm | 100 | 133 | 167 | 200 | 233 | 267 | 300 | 333 |
| Throw | 7 | 8 | 10 | 12 | 14 | 16 | 17 | 21 | ||
| 12 x 4 | ||||||||||
| Ak .181" | 12-3/8 x 5-3/8 | Cfm | 58 | 78 | 97 | 117 | 136 | 156 | 175 | 194 |
| Throw | 5 | 7 | 8 | 10 | 12 | 14 | 15 | 17 | ||
| 12 x 6 | ||||||||||
| Ak .285" | 13-3/8 x 7-3/8 | Cfm | 90 | 119 | 149 | 179 | 209 | 239 | 269 | 299 |
| Throw | 7 | 8 | 10 | 12 | 15 | 17 | 19 | 21 | ||
| 12 x 8 | ||||||||||
| Ak .389" | 13-3/8 x 9-3/8 | Cfm | 121 | 161 | 201 | 242 | 282 | 322 | 363 | 403 |
| Throw | 7 | 9 | 11 | 13 | 18 | 17 | 19 | 22 | ||
| 14 x 4 | ||||||||||
| Ak .208" | 15-3/8 x 5-3/8 | Cfm | 69 | 92 | 115 | 138 | 160 | 183 | 206 | 229 |
| Throw | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 18 | ||
| 14 x 6 | ||||||||||
| Ak .313" | 15-3/8 x 7-3/8 | Cfm | 104 | 139 | 174 | 208 | 243 | 278 | 313 | 347 |
| Throw | 7 | 8 | 11 | 13 | 16 | 18 | 20 | 23 | ||
| 14 x 8 | ||||||||||
| Ak .458" | 15-3/8 x 9-3/8 | Cfm | 142 | 189 | 236 | 283 | 331 | 378 | 425 | 472 |
| Throw | 8 | 9 | 12 | 14 | 17 | 19 | 21 | 24 |
