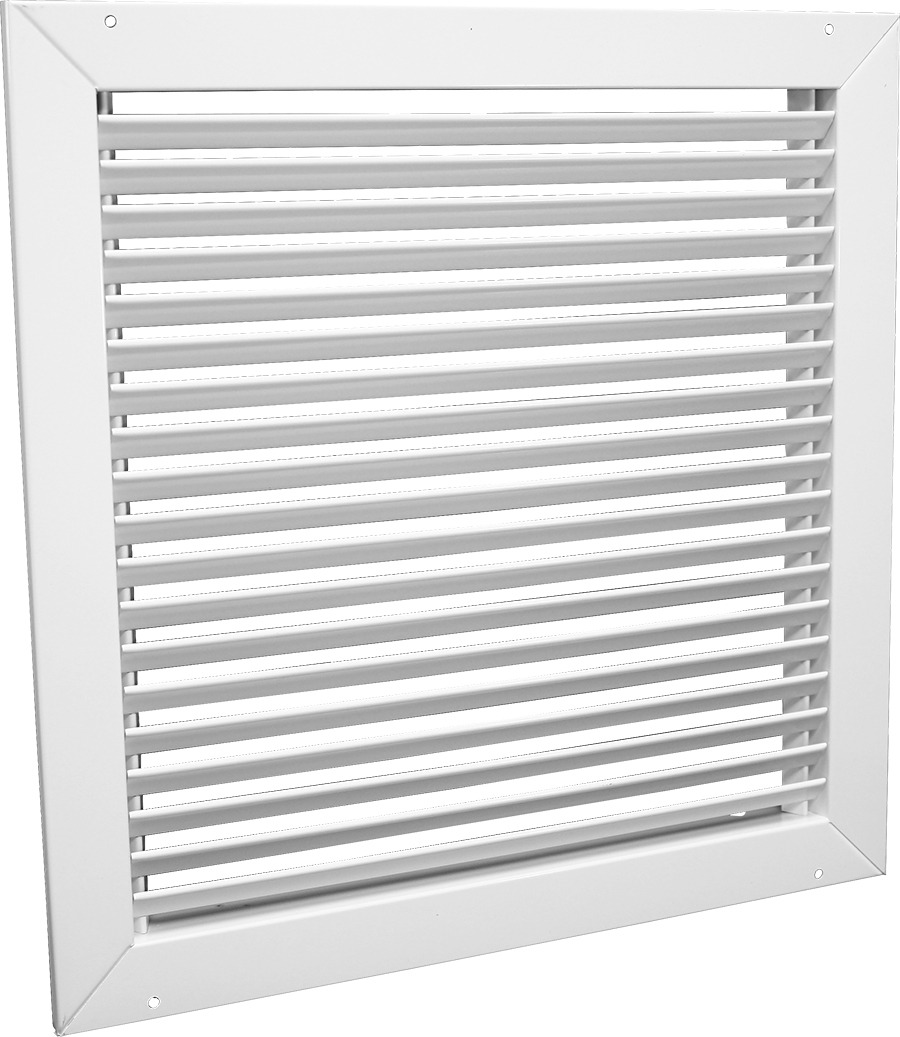

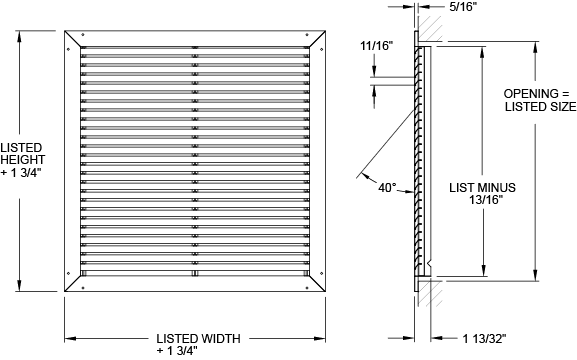

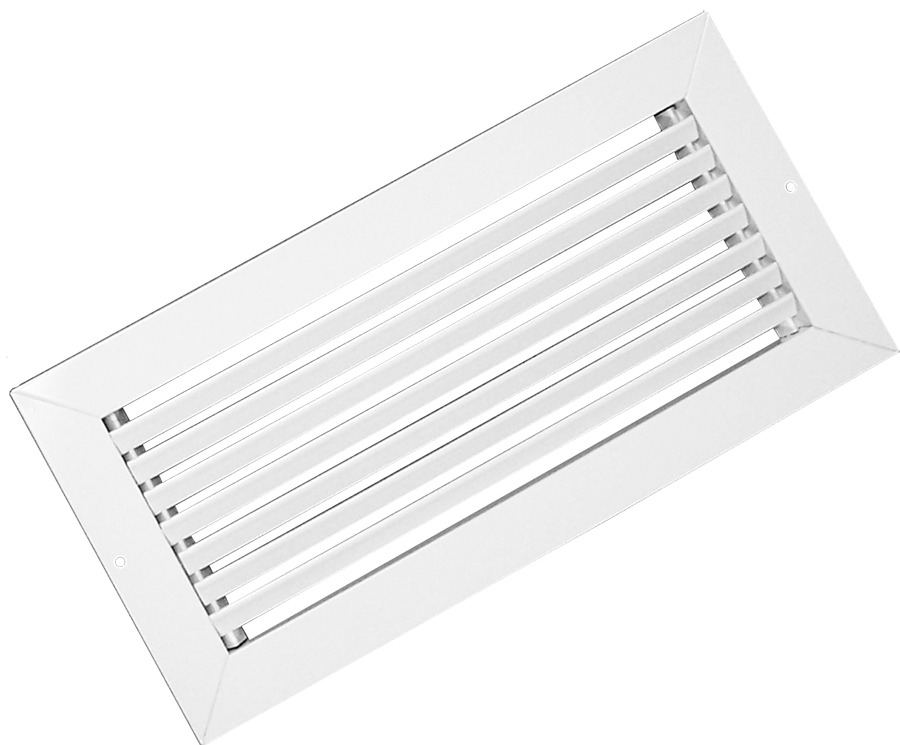

Aluminum Sidewall or Ceiling
AFBG40
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.
Designed for Supply or Return Air usage- Fixed, horizontal, roll-form face bars
- Bars fixed at 40° deflection
- Commercial grade aluminum construction
- White finish
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| AFBG40W 1008 | 10" x 8" White | 10 | -- |
| AFBG40W 1010 | 10" x 10" White | 3 | -- |
| AFBG40W 1212 | 12" x 12" White | 10 | -- |
| AFBG40W 1224 | 12" x 24" White | 3 | -- |
| AFBG40W 1406 | 14" x 6" White | 10 | -- |
| AFBG40W 1414 | 14" x 14" White | 10 | -- |
| AFBG40W 1818 | 18" x 18" White | 3 | -- |
| AFBG40W 2012 | 20" x 12" White | 3 | -- |
| AFBG40W 2406 | 24" x 6" White | 3 | -- |
| AFBG40W 2408` | 24" x 8" White | 3 | -- |
| Unit Size | Velocity | 400 | 600 | 800 | 1000 |
|---|---|---|---|---|---|
| 6 x 6 | Cfm | 26 | 38 | 51 | 64 |
| Ak .06 | Pt | 0.006 | 0.026 | 0.028 | 0.069 |
| 8 x 8 | Cfm | 54 | 81 | 108 | 135 |
| Ak .13 | Pt | 0.007 | 0.027 | 0.029 | 0.070 |
| 10 x 6 | Cfm | 50 | 75 | 99 | 124 |
| Ak .12 | Pt | 0.007 | 0.026 | 0.028 | 0.069 |
| 10 x 10 | Cfm | 92 | 139 | 185 | 231 |
| Ak .23 | Pt | 0.009 | 0.027 | 0.029 | 0.070 |
| 12 x 6 | Cfm | 62 | 93 | 124 | 154 |
| Ak .15 | Pt | 0.012 | 0.027 | 0.047 | 0.076 |
| 12 x 8 | Cfm | 88 | 132 | 177 | 221 |
| Ak .22 | Pt | 0.015 | 0.026 | 0.028 | 0.069 |
| 12 x 12 | Cfm | 141 | 212 | 282 | 353 |
| Ak .35 | Pt | 0.010 | 0.039 | 0.041 | 0.110 |
| 14 x 6 | Cfm | 74 | 111 | 148 | 185 |
| Ak .18 | Pt | 0.012 | 0.042 | 0.046 | 0.115 |
| 14 x 8 | Cfm | 105 | 158 | 211 | 264 |
| Ak .26 | Pt | 0.011 | 0.040 | 0.043 | 0.110 |
| 14 x 14 | Cfm | 200 | 301 | 401 | 501 |
| Ak .50 | Pt | 0.011 | 0.040 | 0.043 | 0.084 |
| 16 x 10 | Cfm | 160 | 239 | 319 | 399 |
| Ak .40 | Pt | 0.016 | 0.027 | 0.029 | 0.070 |
| 16 x 16 | Cfm | 270 | 405 | 540 | 675 |
| Ak .67 | Pt | 0.012 | 0.042 | 0.046 | 0.087 |
| 18 x 18 | Cfm | 340 | 510 | 679 | 849 |
| Ak .85 | Pt | 0.008 | 0.035 | 0.034 | 0.053 |
| 20 x 10 | Cfm | 199 | 299 | 398 | 498 |
| Ak .50 | Pt | 0.016 | 0.027 | 0.029 | 0.070 |
| 20 x 12 | Cfm | 245 | 367 | 490 | 612 |
| Ak .61 | Pt | 0.017 | 0.028 | 0.030 | 0.071 |
| 20 x 14 | Cfm | 291 | 436 | 582 | 727 |
| Ak .73 | Pt | 0.013 | 0.041 | 0.042 | 0.083 |
| 20 x 20 | Cfm | 429 | 643 | 857 | 1072 |
| Ak 1.07 | Pt | 0.015 | 0.034 | 0.031 | 0.051 |
| 24 x 10 | Cfm | 244 | 366 | 488 | 610 |
| Ak .61 | Pt | 0.017 | 0.028 | 0.030 | 0.071 |
| 24 x 12 | Cfm | 300 | 450 | 600 | 750 |
| Ak .75 | Pt | 0.010 | 0.039 | 0.042 | 0.083 |
| 24 x 14 | Cfm | 356 | 535 | 713 | 891 |
| Ak .89 | Pt | 0.019 | 0.030 | 0.032 | 0.073 |
| 24 x 24 | Cfm | 638 | 957 | 1275 | 1594 |
| Ak 1.59 | Pt | 0.008 | 0.040 | 0.043 | 0.047 |
| 30 x 10 | Cfm | 311 | 466 | 622 | 777 |
| Ak .78 | Pt | 0.019 | 0.030 | 0.032 | 0.073 |
| 30 x 12 | Cfm | 383 | 574 | 765 | 957 |
| Ak .96 | Pt | 0.027 | 0.035 | 0.033 | 0.096 |
| 30 x 14 | Cfm | 455 | 682 | 909 | 1136 |
| Ak 1.14 | Pt | 0.028 | 0.035 | 0.034 | 0.075 |
| 30 x 20 | Cfm | 670 | 1005 | 1340 | 1675 |
| Ak 1.67 | Pt | 0.030 | 0.036 | 0.038 | 0.079 |
