Ceiling (Round & Square)
AE5
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

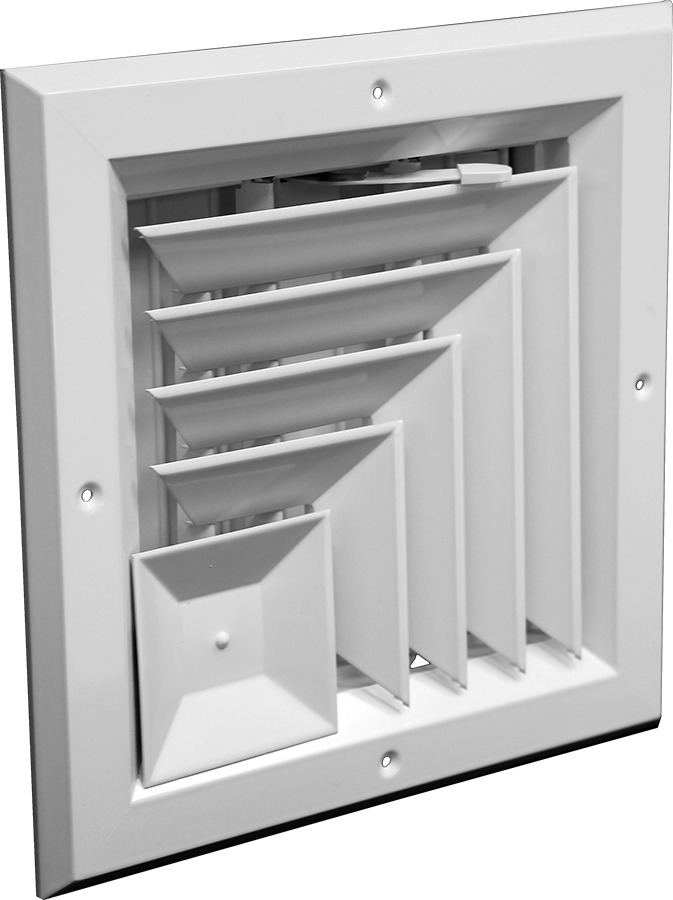

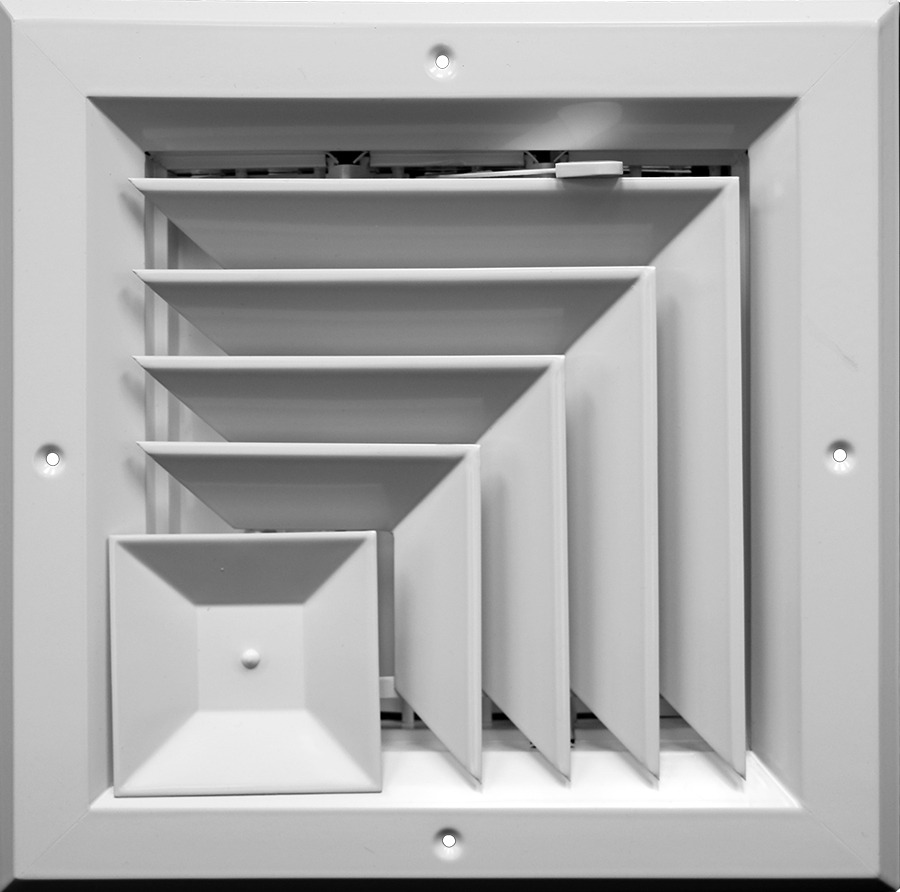

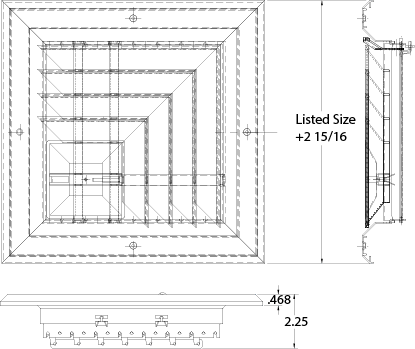

Extruded Aluminum construction- 2-way corner diffusion pattern
- Damper options: Multi-shutter Opposed Blade

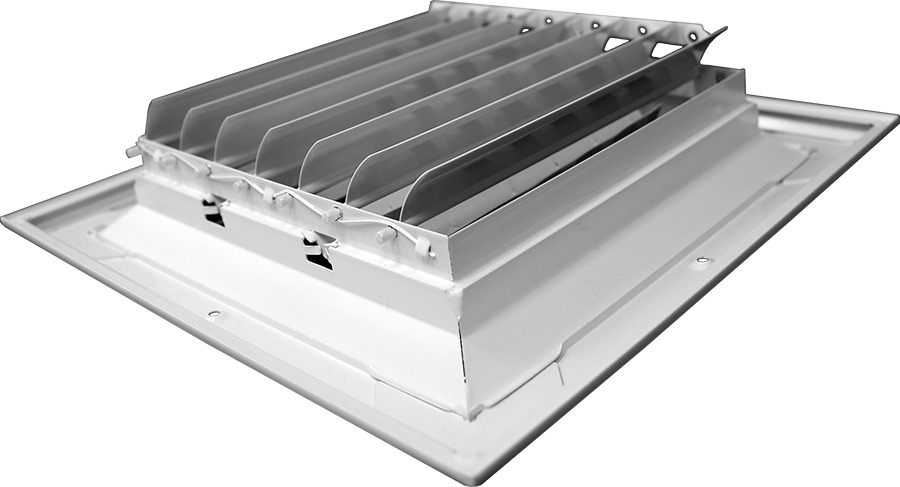

- Multi-shutter

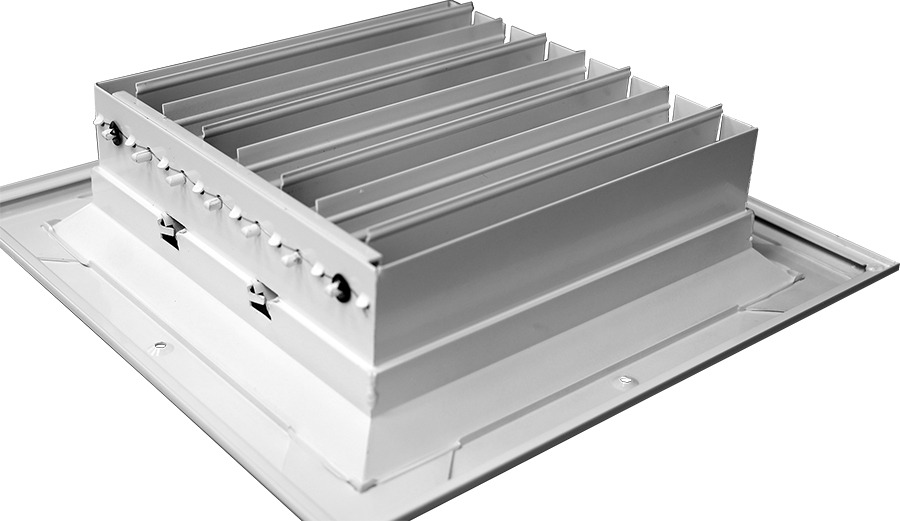

- Opposed Blade
- Available sizes: 6”, 8”, 10”, 12”, & 14”
- White finish
- Domestic (Made in the U.S.A.) and Import models (cost-effective alternatives) available
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| AE5W 06MS | 6" Multi-shutter | 10 | -- |
| AE5W 06OB | 6" Opposed Blade | 10 | -- |
| AE5W 08MS | 8" Multi-shutter | 10 | -- |
| AE5W 08OB | 8" Opposed Blade | 10 | -- |
| AE5W 10MS | 10" Multi-shutter | 5 | -- |
| AE5W 10OB | 10" Opposed Blade | 5 | -- |
| AE5W 12MS | 12" Multi-shutter | 5 | -- |
| AE5W 12OB | 12" Opposed Blade | 5 | -- |
| AE5W 14MS | 14" Multi-shutter | 5 | -- |
| AE5W 14OB | 14" Opposed Blade | 5 | -- |
| Unit Size | Face Velocity | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1400 | 1600 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure Loss | 0.01 | 0.01 | 0.02 | 0.02 | 0.03 | 0.04 | 0.05 | 0.06 | 0.07 | 0.08 | 0.09 | |
| 6 | ||||||||||||
| Ak .13" | Cfm | 45 | 55 | 65 | 75 | 90 | 105 | 120 | 135 | 150 | 180 | 205 |
| Throw | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 6.5 | 7.0 | 8.0 | 10.0 | 11.0 | 13.0 | |
| 8 | ||||||||||||
| Ak .20" | Cfm | 65 | 75 | 90 | 105 | 120 | 135 | 150 | 165 | 195 | 225 | 255 |
| Throw | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 | 11.0 | 13.0 | 15.0 | 17.0 | |
| 10 | ||||||||||||
| Ak .29" | Cfm | 95 | 115 | 135 | 155 | 175 | 200 | 235 | 265 | 305 | 360 | 410 |
| Throw | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 | 10.0 | 13.0 | 15.0 | 19.0 | 21.0 | |
| 12 | ||||||||||||
| Ak .42" | Cfm | 155 | 170 | 210 | 255 | 300 | 340 | 380 | 425 | 485 | 575 | 635 |
| Throw | 5.0 | 6.0 | 7.0 | 8.0 | 10.0 | 11.5 | 13.0 | 16.0 | 18.0 | 22.0 | 24.0 | |
| 14 | ||||||||||||
| Ak .59" | Cfm | 205 | 250 | 305 | 360 | 410 | 450 | 505 | 555 | 640 | 760 | 840 |
| Throw | 6.0 | 7.0 | 9.0 | 11.0 | 13.0 | 15.0 | 16.0 | 18.0 | 20.0 | 26.0 | 28.0 |
Note:
Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
