T-Bar Accessories
5400
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.
Galvanized steel construction- Fasteners included for steel plenums
- Use Series P175 fasteners for attaching collar to fiberglass plenums such as our Series P
- Two catch tabs to help secure flex duct
- Available sizes: 6”, 7”, 8”, 9” 10”, 12”
- Made in the U.S.A.

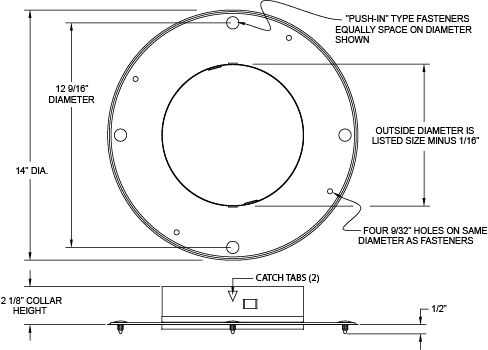

- Steel Plenums: The attached mushroom fasteners align with mounting holes on the steel plenums of Continental T-Bar diffusers. Simply align the holes and push in the fasteners to secure the collar.
- Fiberglass Plenums: Remove the mushroom fasteners included with the stock 5400 collar. Place the collar onto the fiberglass plenum in the desired location. Mark the location of the fourholes by pushing a small screwdriver or awl through the collar holes and through the fiberglass plenum. IMPORTANT: Use the P175 fasteners and work from INSIDE the fiberglass plenum to the collar on the outside. (Head in fiberglass plenum; barbed end in 5400 collar.)
- Remove the mushroom fasteners included with the stock 5400 collar.
- Place the collar onto the fiberglass plenum in the desired location.
- Mark the location of the fourholes by pushing a small screwdriver or awl through the collar holes and through the fiberglass plenum.
- IMPORTANT: Use the P175 fasteners and work from INSIDE the fiberglass plenum to the collar on the outside. (Head in fiberglass plenum; barbed end in 5400 collar.)
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| 54 06 | 6" diameter | 12 | -- |
| 54 07 | 7" diameter | 12 | -- |
| 54 08 | 8" diameter | 12 | -- |
| 54 09 | 9" diameter | 12 | -- |
| 54 10 | 10" diameter | 10 | -- |
| 54 12 | 12" diameter | 10 | -- |
Note:
Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
