Floor, Toe Space, & Baseboard
54
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

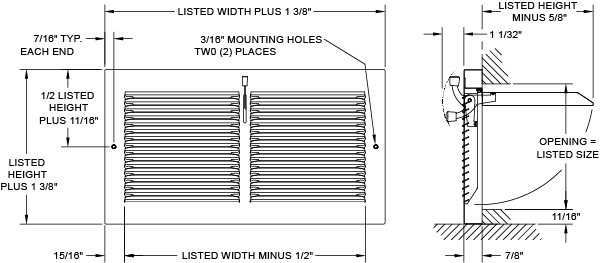

Steel construction- Lanced face
- Plate damper
- 1/3” spaced fins
- 10”, 12”, 14” widths, 6” length
- 7/8” base extension
- White finish
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| 54W 1006 | 10" x 6" White | 10 | -- |
| 54W 1206 | 12" x 6" White | 10 | -- |
| 54W 1406 | 14" x 6" White | 10 | -- |
| Unit Size (in.) | Overall Size (in.) | Face Velocity | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Pressure Loss | .006 | .010 | .016 | .022 | .031 | .040 | .050 | .062 | ||
| 10 x 6 | ||||||||||
| Ak .27" | 11-3/8 x 7-3/8 | Cfm | 81 | 108 | 135 | 162 | 189 | 216 | 243 | 270 |
| Throw | 9 | 11.5 | 14.5 | 17.5 | 20 | 23 | 25.5 | 29 | ||
| 12 x 6 | ||||||||||
| Ak .33" | 13-3/8 x 7-3/8 | Cfm | 99 | 132 | 165 | 198 | 231 | 264 | 297 | 330 |
| Throw | 10 | 13 | 17 | 20 | 23.5 | 26.5 | 30 | 33 | ||
| 14 x 6 | ||||||||||
| Ak .39" | 15-3/8 x 7-3/8 | Cfm | 117 | 156 | 195 | 234 | 273 | 312 | 324 | 390 |
| Throw | 11 | 14.5 | 18 | 22 | 25.5 | 29 | 32.5 | 36 |
Note:
Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
