Floor, Toe Space, & Baseboard
51a
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.

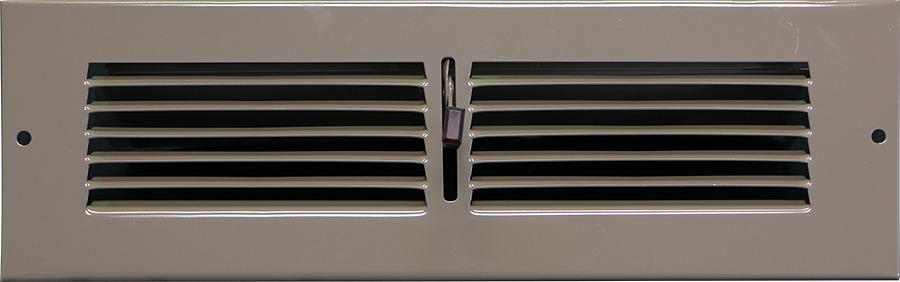

Stamped steel construction- Lanced face
- Single valve damper
- With mounting holes

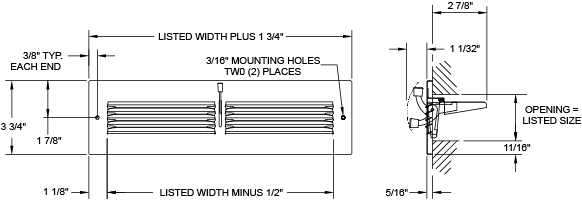

- 2¼” length, 10”, 12”, 14” widths
- Golden Brown or White finish
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| 51B 1003 | 10" x 2 1/4" Brown | 10 | -- |
| 51B 1203 | 12" x 2 1/4" Brown | 10 | -- |
| 51B 1403 | 14" x 2 1/4" Brown | 10 | -- |
| 51W 1003 | 10" x 2 1/4" White | 10 | -- |
| 51W 1203 | 12" x 2 1/4" White | 10 | -- |
| 51W 1403 | 14" x 2 1/4" White | 10 | -- |
| Unit Size (in.) | Overall Size (in.) | Face Velocity | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Pressure Loss | .006 | .010 | .016 | .022 | .031 | .040 | .050 | .062 | ||
| 10 x 2¼ | ||||||||||
| Ak .17" | 11¾ x 3¾ | Cfm | 30 | 40 | 51 | 61 | 71 | 81 | 91 | 101 |
| Throw | 5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 17 | 17 | ||
| 12 x 2¼ | ||||||||||
| Ak .12" | 13¾ x 3¾ | Cfm | 37 | 49 | 62 | 74 | 86 | 98 | 111 | 123 |
| Throw | 4.5 | 5.5 | 7 | 8.5 | 10 | 11.5 | 13 | 16 | ||
| 14 x 2¼ | ||||||||||
| Ak .15" | 15¾ x 3¾ | Cfm | 44 | 58 | 73 | 88 | 102 | 117 | 131 | 146 |
| Throw | 4 | 5.5 | 7 | 8.5 | 9.5 | 11 | 12 | 15 |
Note:
Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
