Standard Floor Registers

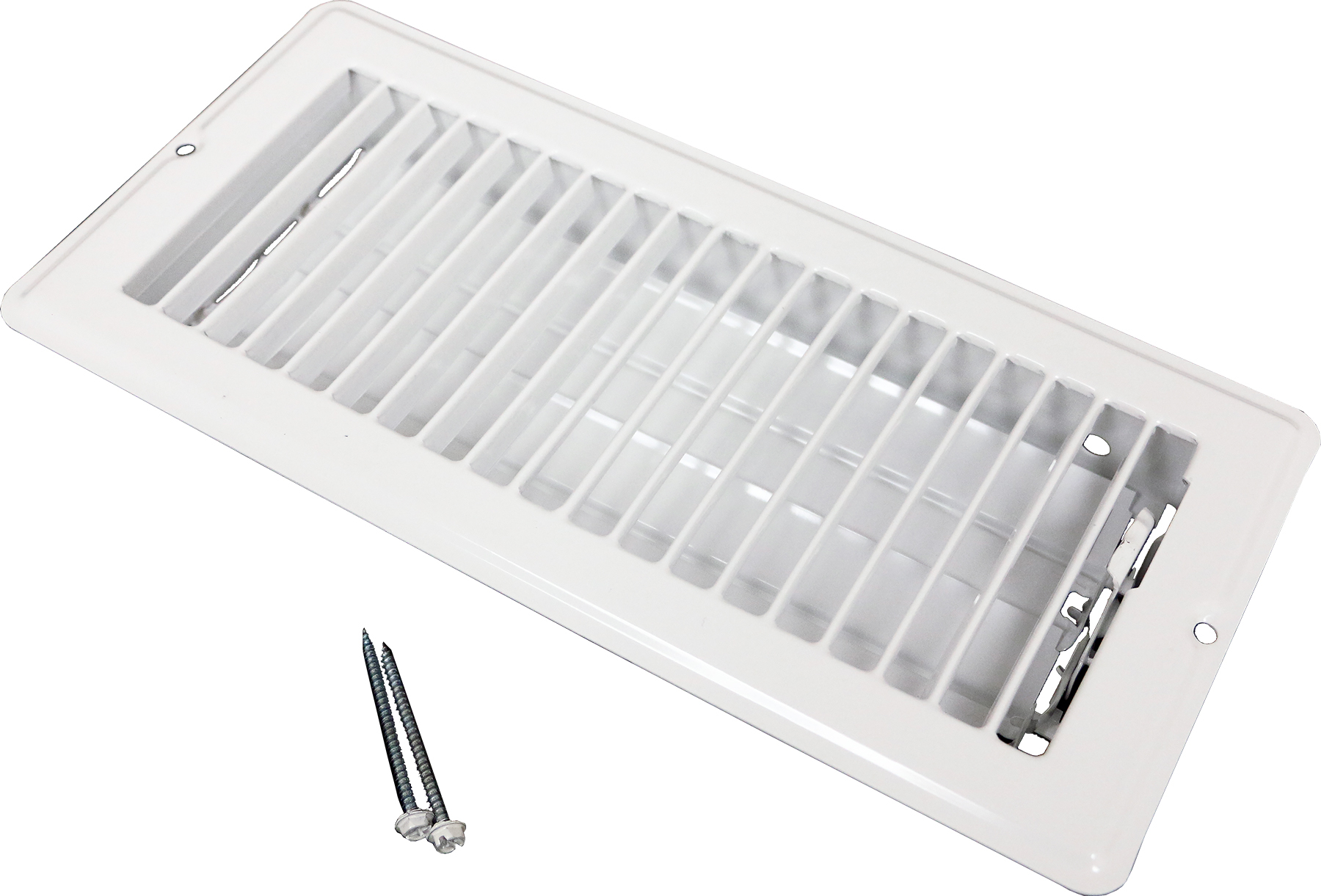

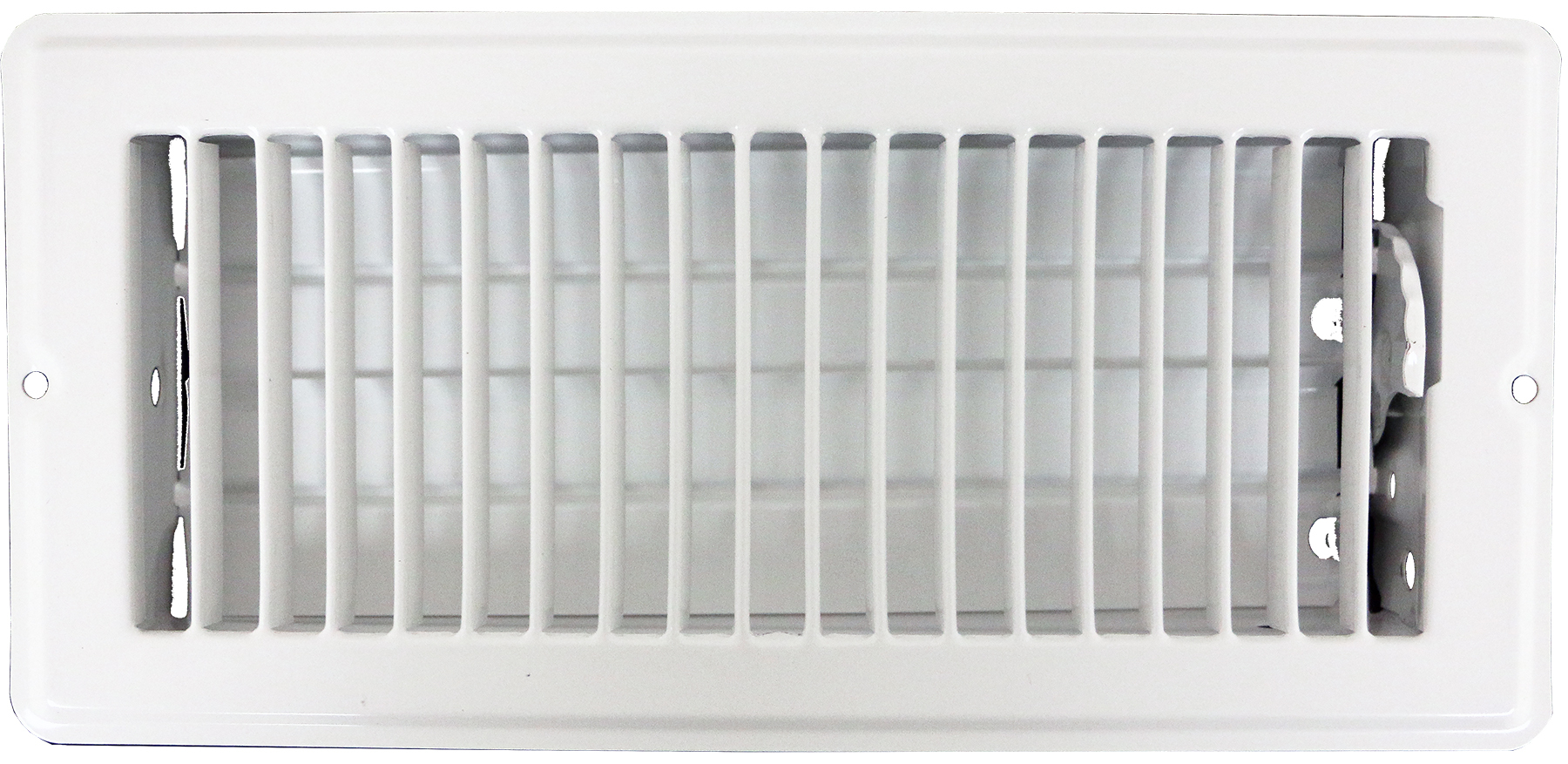

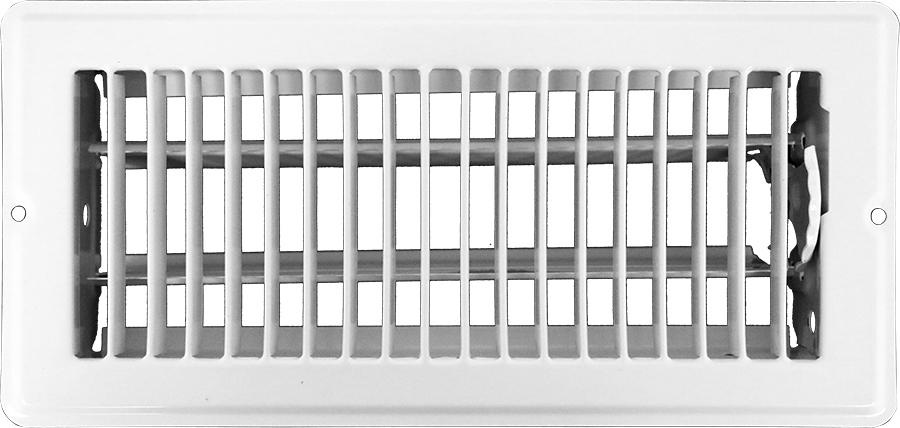

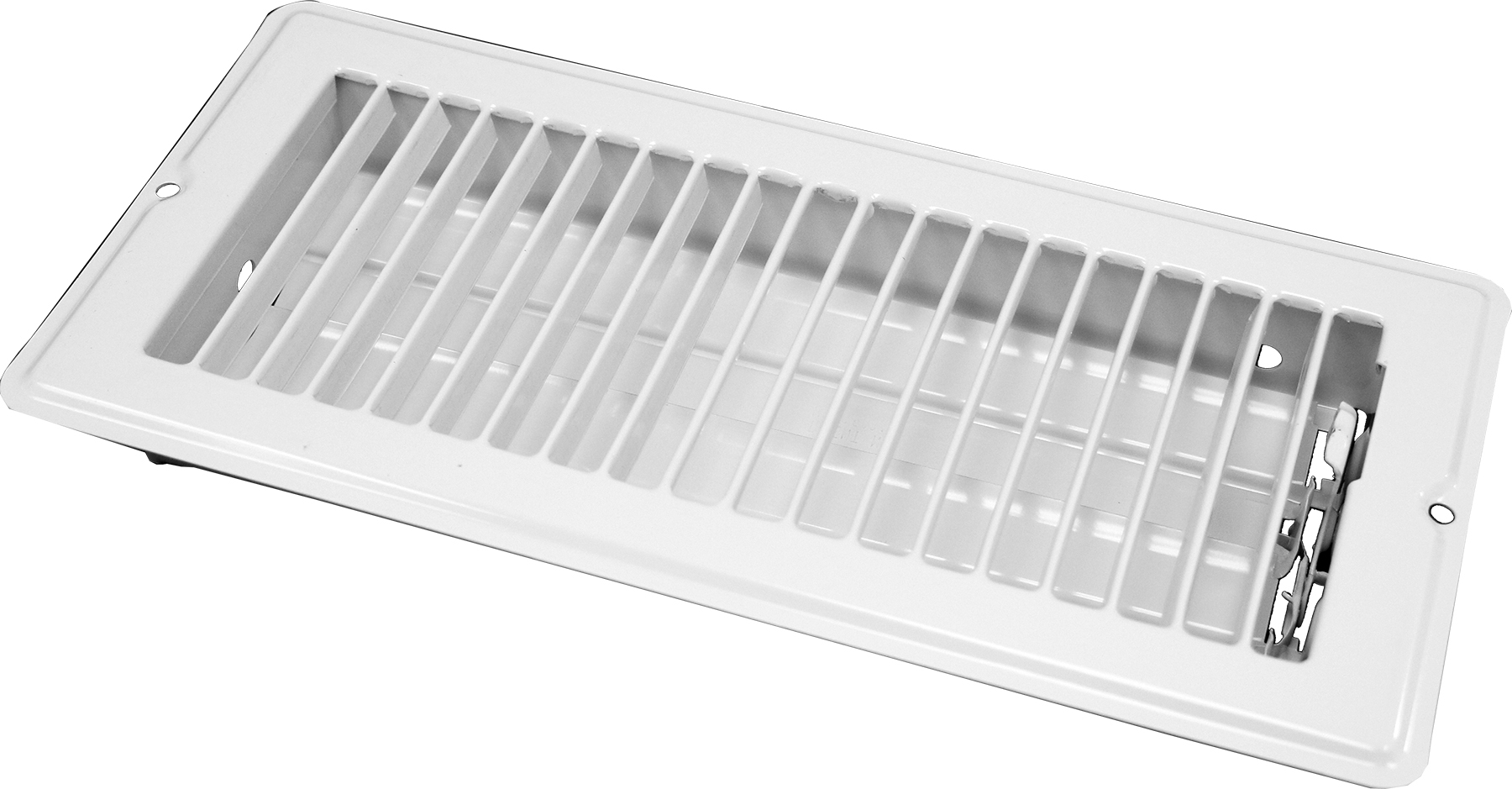

30W0410 & R30W0410

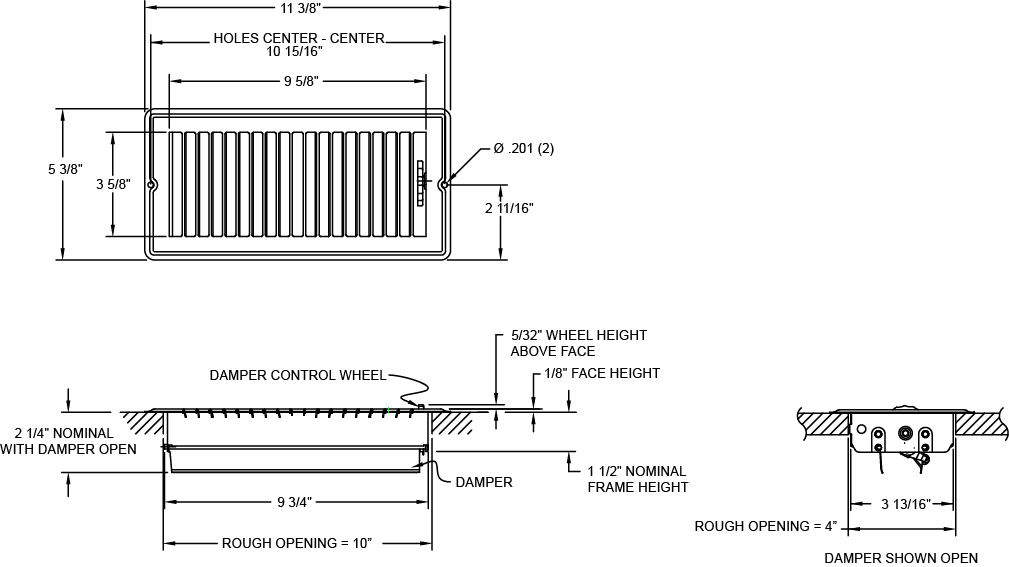

Long the mainstay of manufactured housing, these registers are designed for rough openings of 4” x 10”.   The 30W0410 is available in bulk packaging only.  The R30W0410 is individually shrink-wrapped and labeled and includes mounting screws.

  • Mounting holes for secure placement
  • Rolled face blades for bare foot smoothness
  • One-piece wraparound collar for increased strength
  • Opposed blade damper for precise air flow control
  • Spring-loaded damper actuation for rattle-free positioning
  • Construction: Steel
  • Finish: Anodic Acrylic Electrocoat
  • Color: White
  • Origin: Made in the U.S.A.
  • Carton quantity: 24
Catalog
30W0410 SubmittalR30W0410 Submittal

Note:

Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
