Floor, Toe Space, & Baseboard

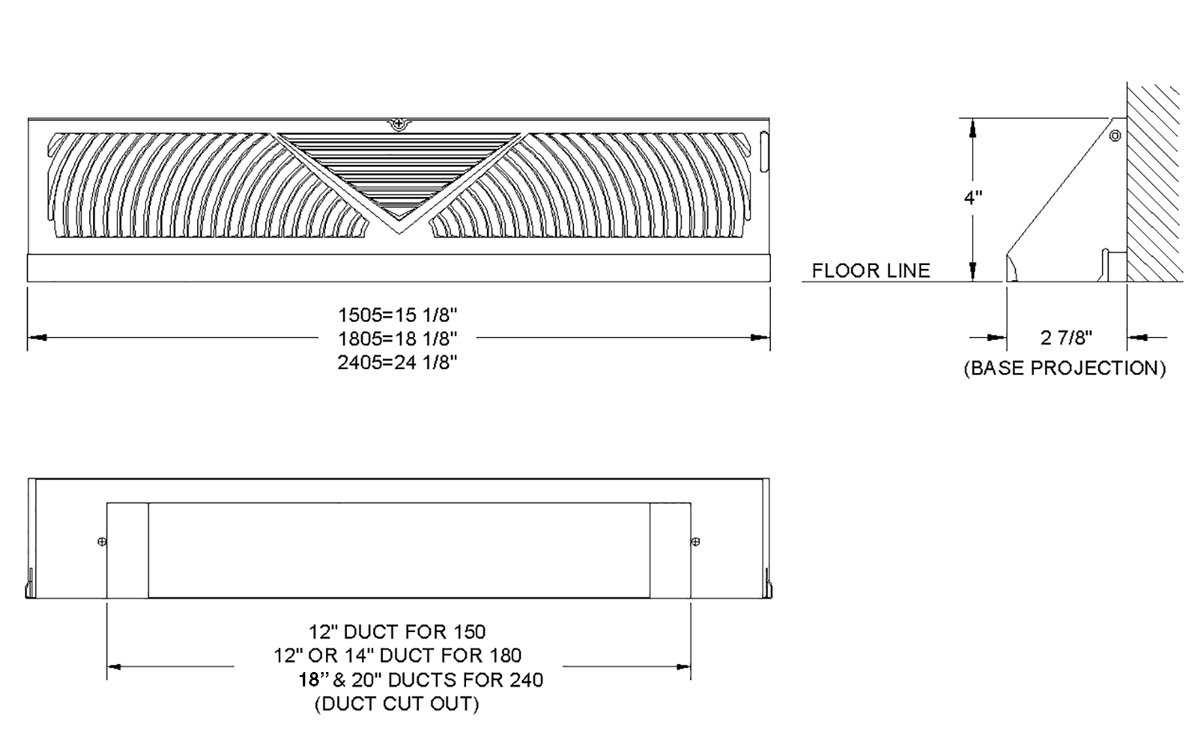

1505, 1805, 2405
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec eget auctor velit, et suscipit erat. Donec dapibus purus id eros auctor, a scelerisque urna ornare. Pellentesque vel bibendum arcu, a hendrerit purus. Etiam vel arcu quis nibh blandit faucibus. Morbi id purus diam. Vestibulum eu congue nisi, id dictum ex.
Sunburst design- Steel construction
- Lanced face
- 1/3” spaced fins
- 15", 18", 24" widths
- Golden Brown or White finish
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
|---|---|---|---|
| 1505W | 15" White | 10 | -- |
| 1805W | 18" White | 10 | -- |
| 2405B | 24" Brown | 10 | -- |
| 2405W | 24" White | 10 | -- |
| Unit Size | Overall Size | Face Velocity | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | ||||||||||
| Ak .222" | 15-1/8 | Cfm | 67 | 89 | 111 | 134 | 156 | 178 | 200 | 222 |
| Pt | 0.014 | 0.024 | 0.038 | 0.051 | 0.073 | 0.093 | 0.122 | 0.150 | ||
| 18 | ||||||||||
| Ak .264" | 18-1/8 | Cfm | 80 | 106 | 132 | 159 | 185 | 212 | 238 | 264 |
| Pt | 0.014 | 0.024 | 0.038 | 0.051 | 0.073 | 0.093 | 0.122 | 0.150 | ||
| 24 | ||||||||||
| Ak .354" | 24-1/8 | Cfm | 107 | 142 | 177 | 213 | 248 | 284 | 319 | 354 |
| Pt | 0.013 | 0.023 | 0.037 | 0.052 | 0.072 | 0.092 | 0.120 | 0.148 |
Note:
Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
