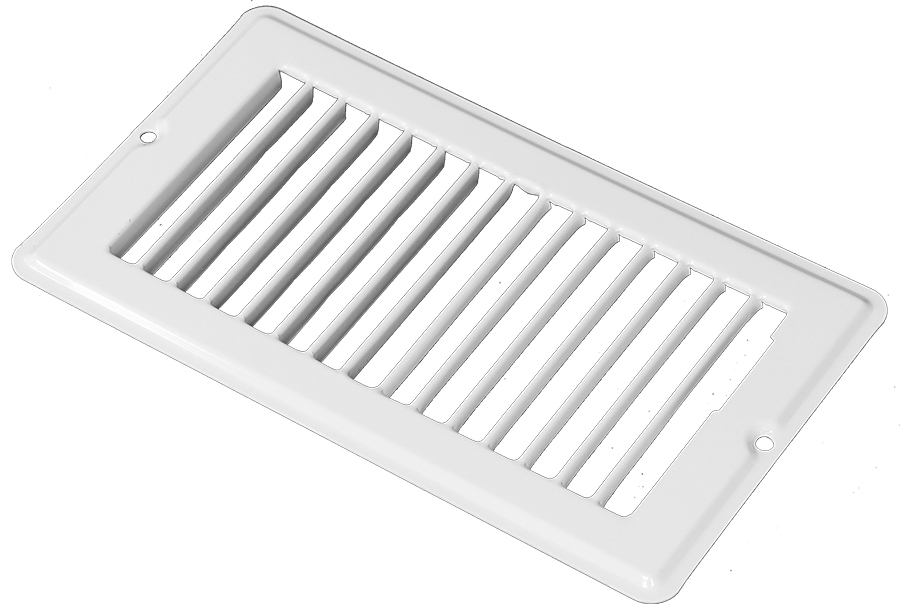

Reinforced Grilles

10F2509W & R10F2509W

The face-only portion of the 12509W/R12509W floor registers is used to create these light-duty grilles.

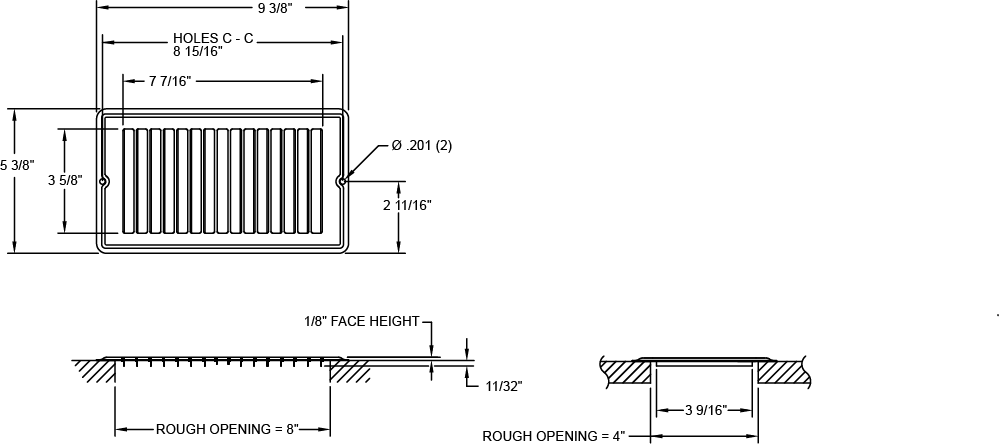

These devices are designed for rough openings of 4” x 8”. The 10F2509W is available in bulk packaging only. The R10F2509W is individually shrink-wrapped and labeled and includes mounting screws.

  • Mounting holes for secure placement
  • Rolled face blades for bare foot smoothness
  • Construction: Steel
  • Finish: Anodic Acrylic Electrocoat
  • Color: White
  • Origin: Made in the U.S.A.
  • Carton quantity: 12
Catalog
10F2509W SubmittalR10F2509W Submittal

Note:

Submittals sheets are available as interactive pdf forms which can be completed electronically. To access this functionality, you must download the sheets and open in a pdf reach such as the Adobe Reader.
By default, these submittals will open in a new browser window. Browsers do not support interactive pdf fields.
